Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 150mm -
Fork RockShox ZEB Select
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Enduro 29 / Think Link® suspension system, 150 mm rear travel, tapered HT, internal routing, 12x148 mm Boost thru axle
Suspension Fork
ROCK SHOX Zeb Select (29) Boost, 170 mm, DebonAir+ / Charger RC / Maxle Stealth 15 mm thru axle
Rear Shock
ROCK SHOX Super Deluxe Coil Ultimate RCT (210x55 mm)
Drivetrain
Rear Derailleur
SHIMANO Deore XT M8100 (direct mount)
Front Derailleur
chain guide MOZARTT HXR, ISCG 05
Shift Levers
SHIMANO SLX SL-M7100-IR Rapidfire Plus (I-Spec EV)
Cassette
SHIMANO CS-M7100-12 (10-51T)
Crank
SHIMANO SLX M7120-1 Hollowtech II (32T) - length 175 mm
Bottom Bracket
SHIMANO Press-Fit BB71-41A
Chain
SHIMANO CN-M6100 (114 links)
Pedals
KLS Master
Wheels
Front Hub
SHIMANO SLX M7110-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rear Hub
SHIMANO SLX M7110-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rims
KLS Valor 3 Disc (622x30 / 32 holes)
Tires
SCHWALBE Hans Dampf Evo Super Trail 60-622 (29x2.35) Tubeless Easy, ADDIX Soft, folding front / SCHWALBE Nobby Nic Evo Super Trail 60-622 (29x2.35) Tubeless Easy, ADDIX Soft, folding rear
Brakes
Brakes
SHIMANO SLX M7120 Hydraulic Disc
Brake Levers
SHIMANO SLX BL-M7100
Cockpit
Stem
RACE FACE Aeffect R 35 - diam 28.6 mm / bar bore 35 mm / 0° / length 50 mm
Handlebar
RACE FACE Chester 35 RiseBar - diam 35 mm / rise 35 mm / width 780 mm
Grips
KLS Poison
Seat
Saddle
fi’zi:k Taiga, S-alloy rails
Seatpost
KS e20-i Remote Telescopic - diam 30.9 mm / length 474 mm, travel 150 mm

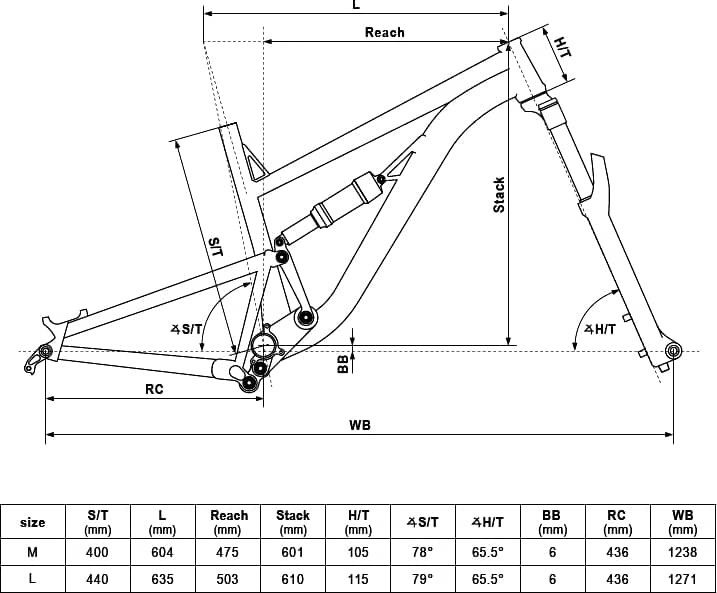

Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 29" | 29" |
