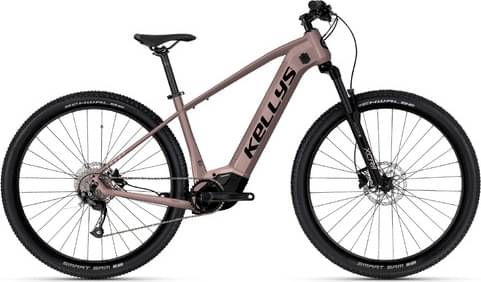

Kellys TAYEN R10 AIR P 29″ 725 Wh 2024
2024 E-bike
Estimate price |
3,440$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCR Air
-
Groupset CUES -
Suspension Hardtail -
Motor Panasonic 95Nm mid-drive -
Battery KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS TAYEN R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5" tapered HT, 12x148 mm Boost thru axle
Suspension Fork
SR SUNTOUR XCR32-AIR LOR DS (29"), 120 mm, air / Speed Lockout / 15 mm thru axle
Drivetrain
Rear Derailleur
SHIMANO Cues U4000 (direct mount)
Shift Levers
SHIMANO Cues SL-U4000-9R Rapidfire Plus
Cassette
SHIMANO Linkglide CS-LG400-9 (11-41T)
Crank
MIRANDA Delta (36T) - length 170 mm
Chain
SHIMANO Linkglide CN-LG500 (118 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO TC500-15-B / MT400-B Disc Center Lock (32 holes)
Rear Hub
SHIMANO TC500-15-B / MT400-B Disc Center Lock (32 holes)
Rims
KLS Draft 23 Disc 622x23 (32 holes)
Spokes
stainless steel black
Tires
SCHWALBE Smart Sam 57-622 (29"x2.25)
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / length 45 mm
Handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 700 mm
Grips
KLS Poison OneLockon
Seat
Saddle
SELLE ROYAL Vivo
Seatpost
KLS Active - diam 30.9 mm / length 350 mm
Motor & Battery
Motor
PANASONIC GX Ultimate, 95 Nm, 36 V
Battery
KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ
Fit data

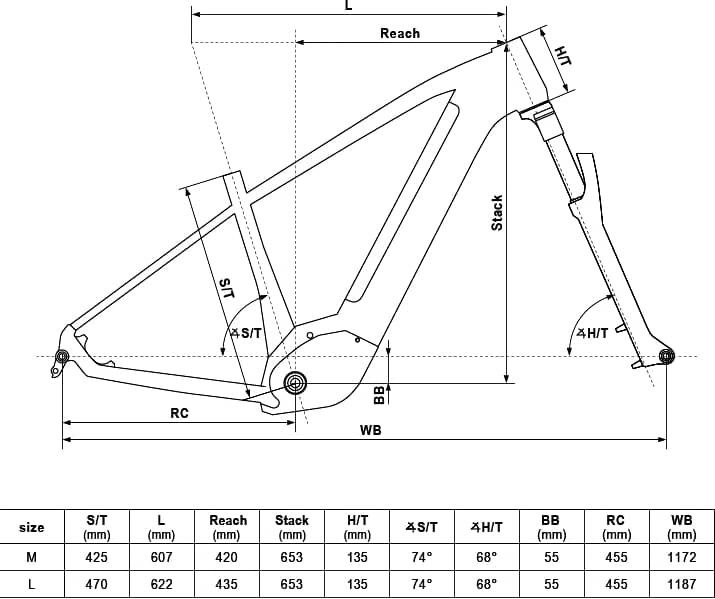

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 29" | 29" |
