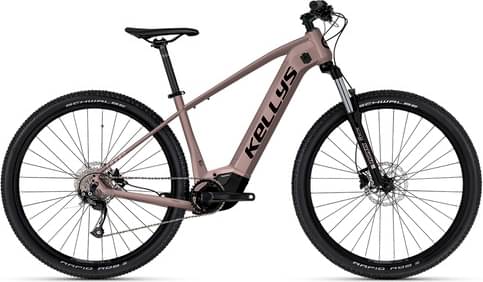

Kellys TAYEN R10 P 27.5″ 725Wh 2024
2024 E-bike
Estimate price |
3,440$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Altus -
Suspension Hardtail -
Motor Panasonic 95Nm mid-drive -
Battery KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by Kellys-BMZ -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS TAYEN R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5" tapered HT, 12x148 mm Boost thru axle
Suspension Fork
SR SUNTOUR XCM 32 DS (27.5") Boost, 120 mm, coil spring / 15 mm thru axle
Drivetrain
Rear Derailleur
SHIMANO Altus M2000 (direct mount)
Shift Levers
SHIMANO Altus SL-M2000 Rapidfire Plus
Cassette
SHIMANO CS-HG400-9 (11-36T)
Crank
MIRANDA Delta (36T) - length 170 mm
Chain
KMC e9S (118 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO MT400-B Disc Center Lock (32 holes)
Rear Hub
SHIMANO MT400-B Disc Center Lock (32 holes)
Rims
KLS Draft Disc 584x21 (32 holes)
Spokes
stainless steel black
Tires
SCHWALBE Rapid Rob 57-584 (27.5"x2.25) K-Guard
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / lenght 45 mm
Handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 700 mm
Grips
KLS Poison OneLockon
Seat
Saddle
SELLE ROYAL Vivo
Seatpost
KLS Active - diam 30.9 mm / length 350 mm
Motor & Battery
Motor
PANASONIC GX Ultimate, 95 Nm, 36 V
Battery
KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by Kellys-BMZ
Fit data

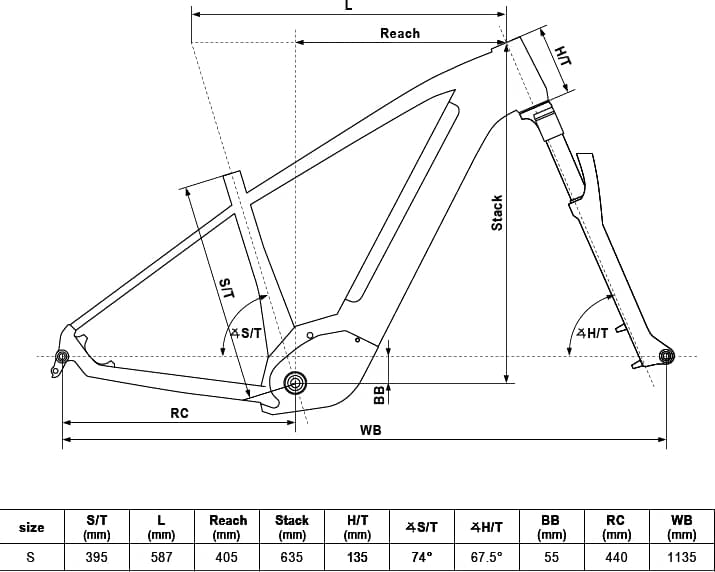

Geometry
Numbers for sizing and ride feel.
| Size | SM |
|---|---|
| Wheels | 27" |
