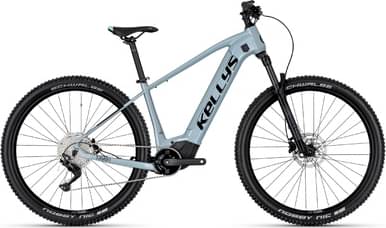

Kellys TAYEN R50 LTD 27.5″ 725Wh 2024
2024 E-bike
Estimate price |
3,669$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RockShox 35 Silver
-
Groupset Deore -
Suspension Hardtail -
Motor Panasonic 90Nm mid-drive -
Battery KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS TAYEN R-series - advanced robotic welded 6-series aluminium alloy, integrated removable battery, 1.5“ tapered HT, 12x148 mm Boost thru axle / Made in EU
Suspension Fork
ROCK SHOX 35 Silver TK (27.5) Boost, 120 mm, Solo Air / TurnKey / Maxle Stealth 15 mm thru axle
Drivetrain
Rear Derailleur
SHIMANO Deore M5120 (direct mount)
Shift Levers
SHIMANO Deore SL-M4100-R Rapidfire Plus (I-Spec EV)
Cassette
SHIMANO CS-M4100-10 (11-46T)
Crank
SAMOX (34T) - length 170 mm
Chain
KMC e10T (116 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO MT400-B Disc Center Lock or KT Disc (32 holes)
Rear Hub
SHIMANO MT400-B Disc Center Lock or KT Disc (32 holes)
Rims
KLS Valor 3 Disc 584x30 (32 holes)
Spokes
stainless steel black
Tires
SCHWALBE Nobby Nic Performance 65-584 (27.5x2.60) ADDIX, folding
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / length 45 mm
Handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 700 mm
Grips
KLS Poison OneLockon
Seat
Saddle
SELLE ROYAL Vivo
Seatpost
KLS Active - diam 30.9 mm / length 350 mm
Motor & Battery
Motor
PANASONIC GX Ultimate, 90 Nm, 36 V
Battery
KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ
Fit data

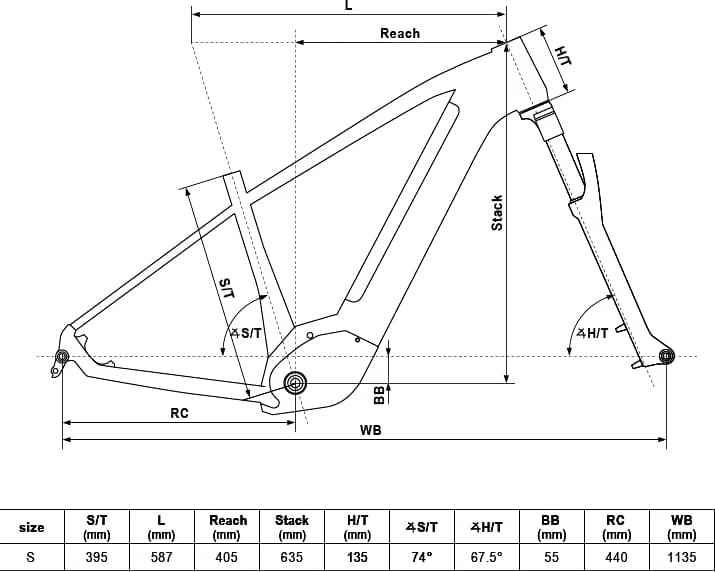

Geometry
Numbers for sizing and ride feel.
| Size | SM |
|---|---|
| Wheels | 27" |
