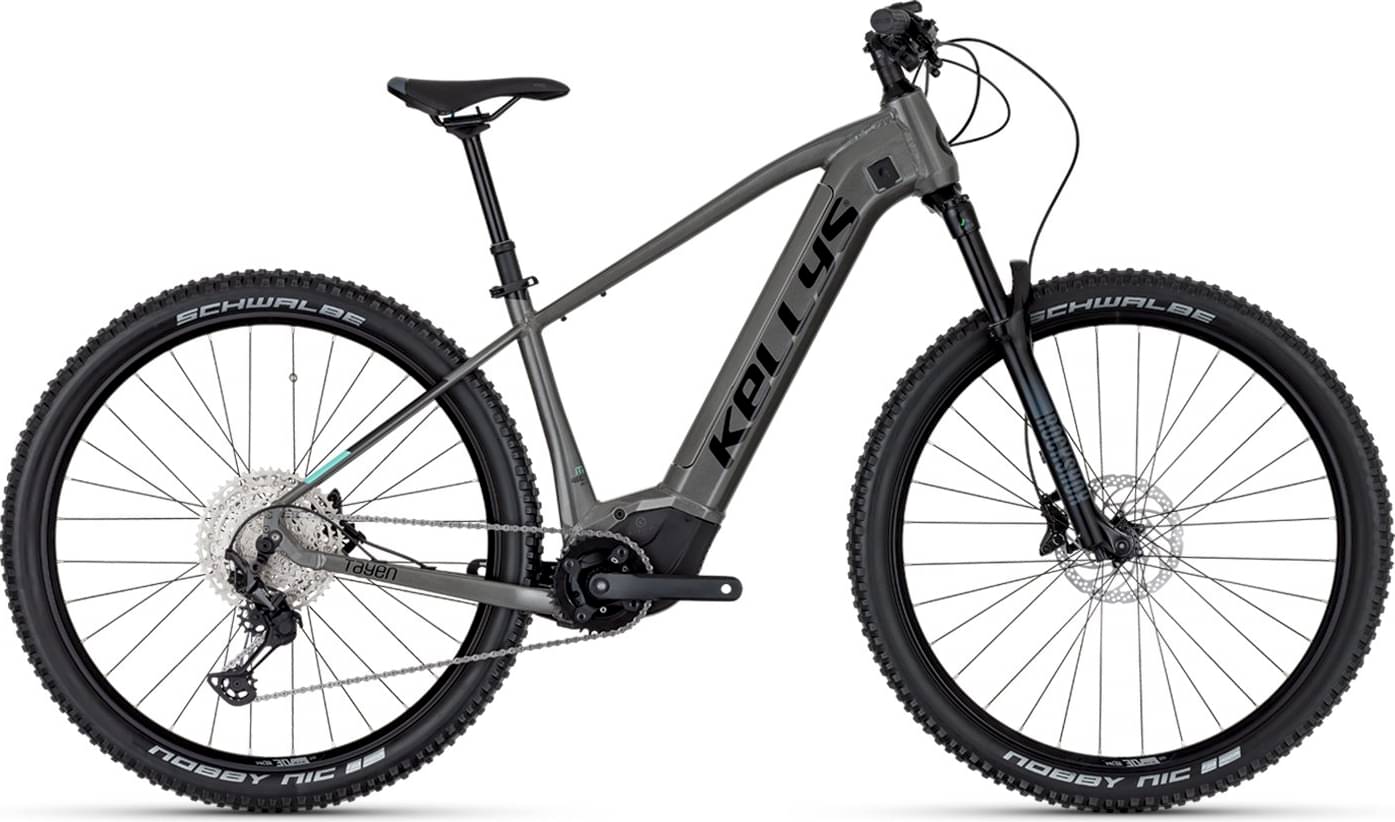

Kellys TAYEN R90 P 27.5″ 725Wh 2025
2025 E-bike
Estimate price |
4,303$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RockShox 35 Gold RL
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Panasonic 90Nm mid-drive -
Battery KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS TAYEN R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5“ tapered HT, 12x148 mm Boost thru axle
Suspension Fork
ROCK SHOX 35 GOLD RL (27.5") Boost, 120 mm, DebonAir / Motion Control / Maxle Stealth 15 mm thru axle
Drivetrain
Rear Derailleur
SHIMANO Deore XT M8100 (direct mount)
Shift Levers
SHIMANO Deore SL-M6100-IR Rapidfire Plus (I-Spec EV)
Cassette
SHIMANO CS-M6100-12 (10-51T)
Crank
SAMOX (34T) - length 170 mm
Chain
SHIMANO CN-M6100 (122 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO MT400-B / Deore MT410-B Disc Center Lock (32 holes)
Rear Hub
SHIMANO MT400-B / Deore MT410-B Disc Center Lock (32 holes)
Rims
KLS Valor 3 Disc 584x30 (32 holes)
Spokes
stainless steel black
Tires
SCHWALBE Nobby Nic Performance 65-584 (27".5x2.60) ADDIX, folding
Brakes
Brakes
SHIMANO MT420 Hydraulic Disc
Brake Levers
SHIMANO Deore BL-M4100
Cockpit
Stem
KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / lenght 45 mm
Handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 700 mm
Grips
KLS Poison OneLockon
Seat
Saddle
SELLE ROYAL Vivo
Seatpost
LIMOTEC A1 Remote Telescopic - diam 30.9 mm / length 402 mm, travel 125 mm
Motor & Battery
Motor
PANASONIC GX Ultimate, 90 Nm, 36 V
Battery
KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ
Fit data

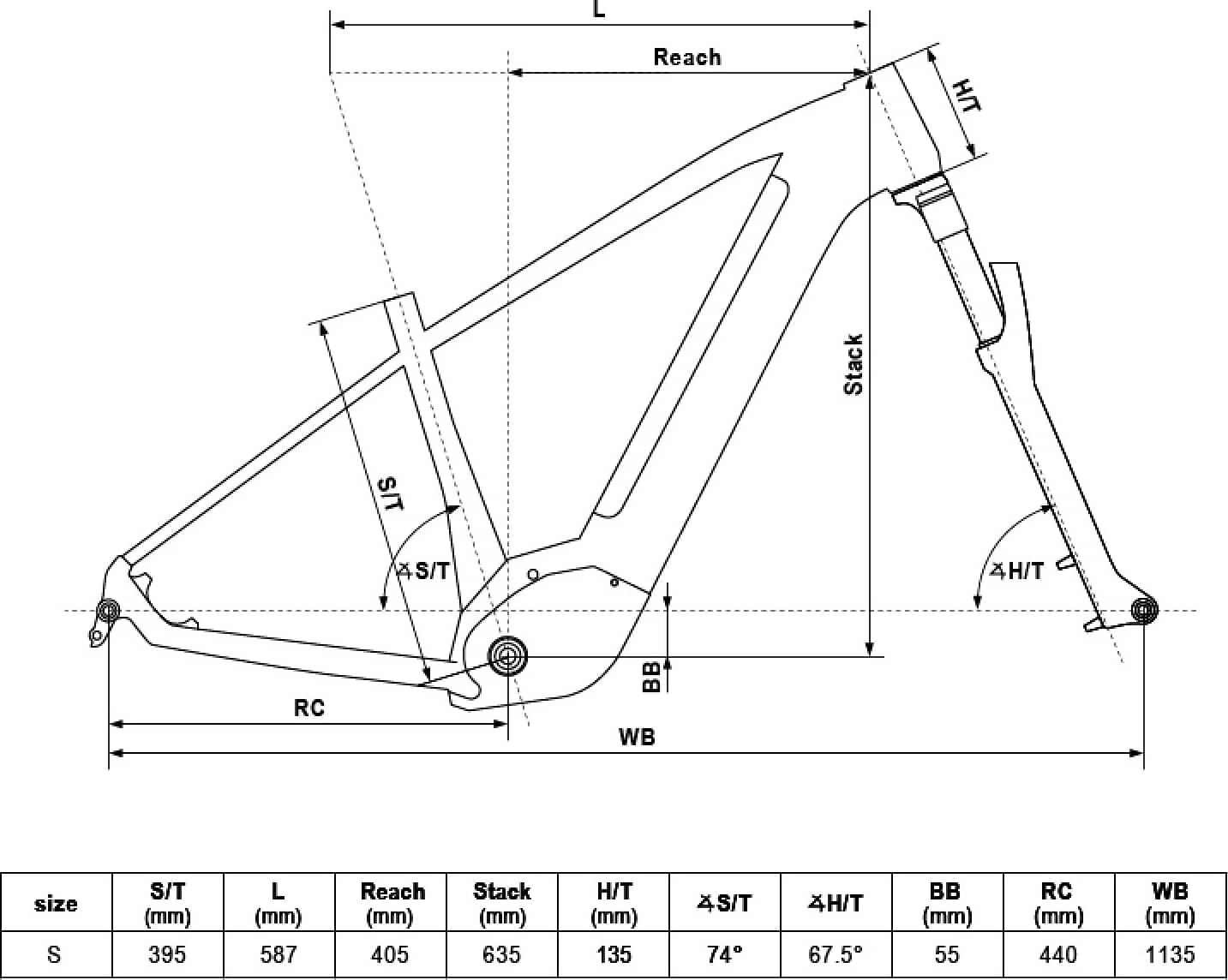

Geometry
Numbers for sizing and ride feel.
| Size | SM |
|---|---|
| Wheels | 27" |
