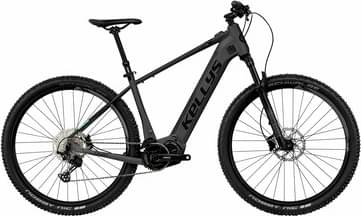

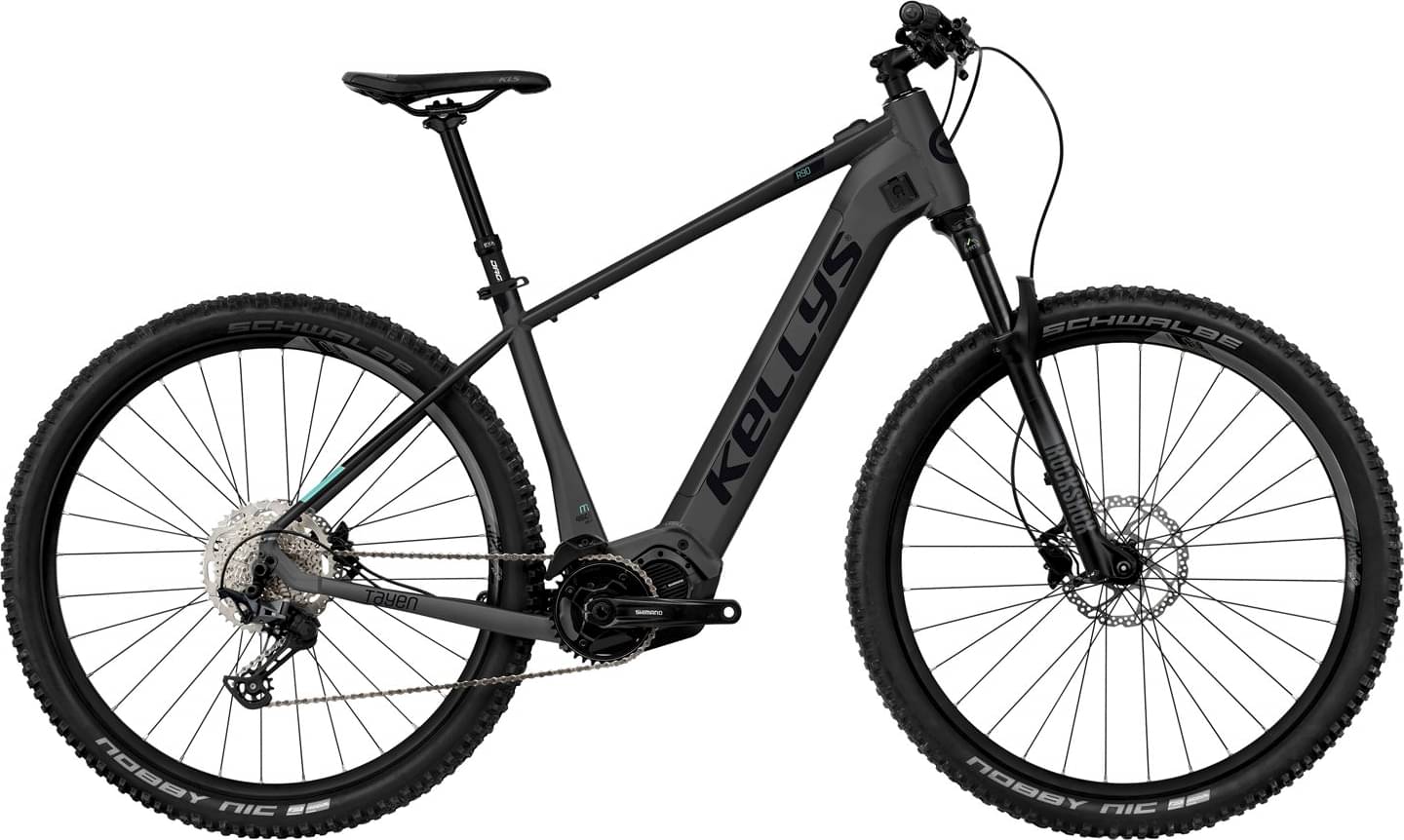

Kellys TAYEN R90 SH 29″ 725 Wh 2025
2025 E-bike
Estimate price |
4,587$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RockShox Recon Gold RL
-
Groupset SLX, Deore -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS TAYEN R series - advanced robotic welded 6-series aluminium alloy, integrated removable battery, 1.5“ tapered HT, 12x148 mm Boost thru axle / Made in EU
Suspension Fork
ROCK SHOX Recon GOLD RL (29) Boost, 120 mm, DebonAir / Motion Control / Maxle Stealth 15 mm thru axle
Drivetrain
Rear Derailleur
SHIMANO SLX M7100 (direct mount)
Shift Levers
SHIMANO Deore SL-M6100-IR Rapidfire Plus (I-Spec EV)
Cassette
SHIMANO CS-M6100-12 (10-51T)
Crank
SHIMANO E6100 (36T) - length 170 mm
Chain
SHIMANO CN-M6100 (122 links)
Wheels
Front Hub
SHIMANO MT400-B / Deore MT410-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rear Hub
SHIMANO MT400-B / Deore MT410-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rims
KLS Valor 3 Disc 622x30 (32 holes)
Spokes
stainless steel black
Tires
SCHWALBE Nobby Nic Performance 60-622 (29x2.40) ADDIX
Brakes
Brakes
SHIMANO Deore MT410 Hydraulic Disc
Brake Levers
SHIMANO Deore BL-M4100
Cockpit
Stem
KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / lenght 45 mm
Handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 700 mm
Grips
KLS Poison OneLockon
Seat
Saddle
SELLE ROYAL Vivo
Seatpost
EXAform JAG1 Remote Telescopic - diam 30.9 mm / length 485 mm, travel 150 mm
Motor & Battery
Motor
SHIMANO STEPS E7000, 36 V
Battery
KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ
Fit data

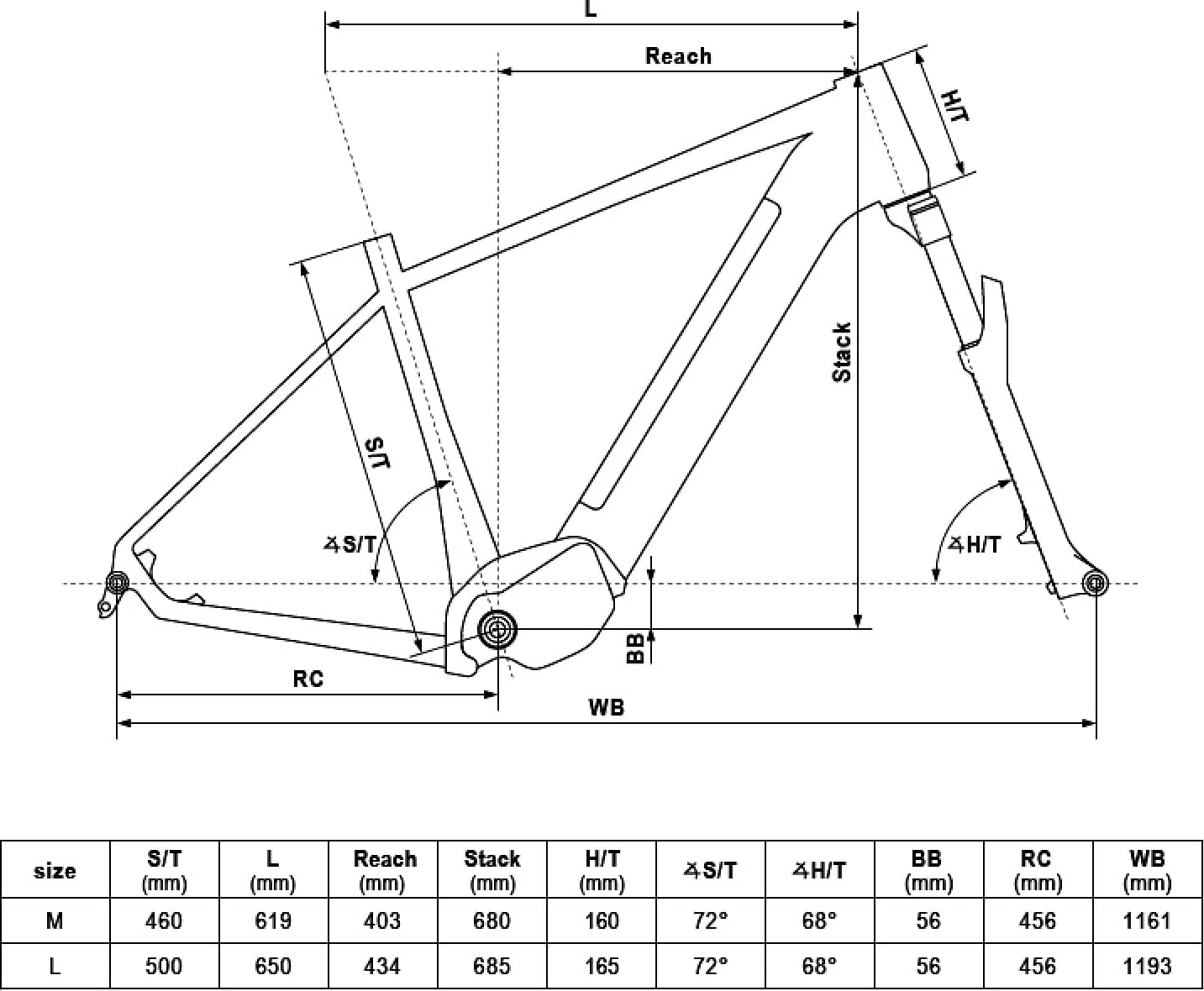

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 29" | 29" |
