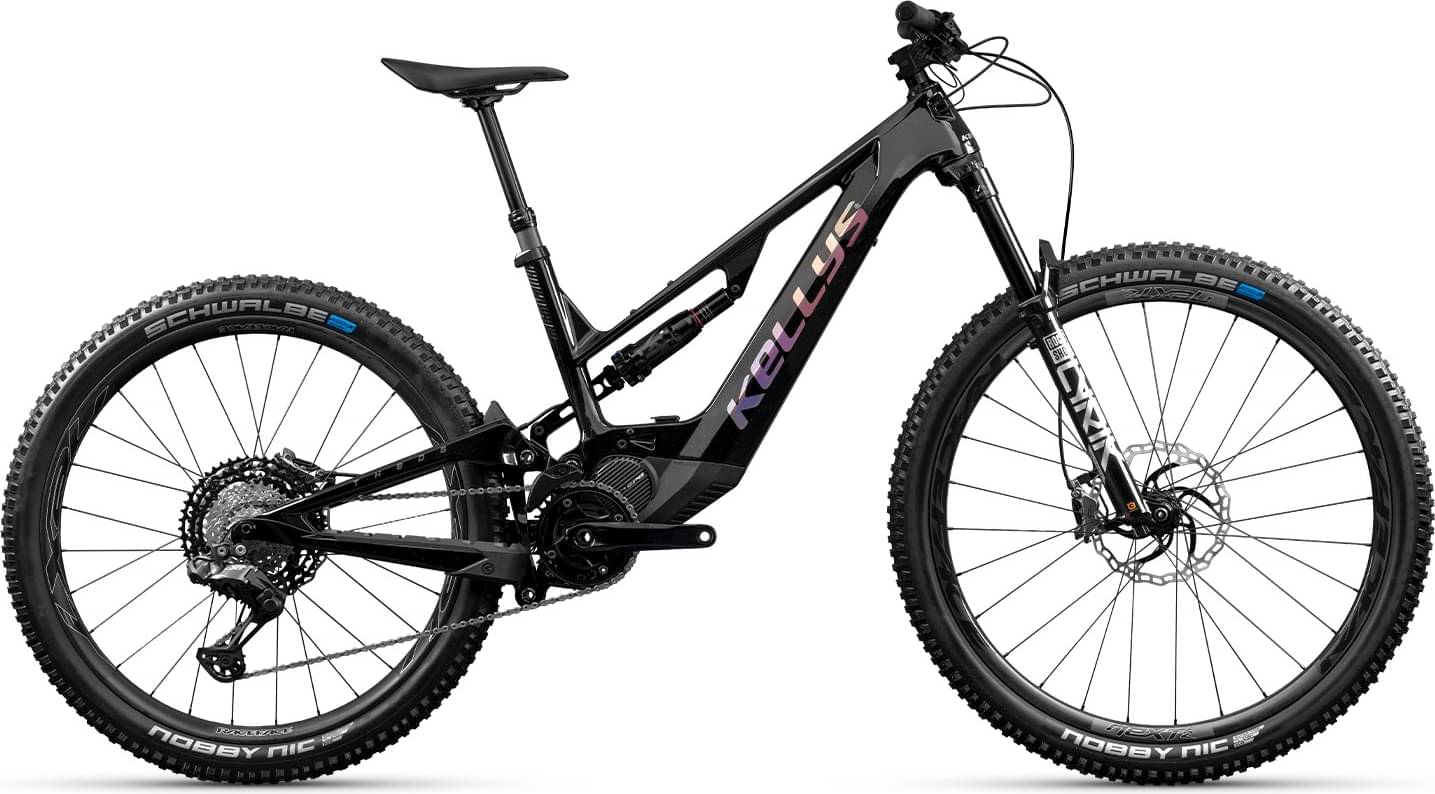

Kellys THEOS F100 SH 29/27.5″ 825 Wh 2025

2025 E-bike
Estimate price | 12,796$
Weight | 20.6 kg
E-bike
Open compare Use advisor
  • Kellys THEOS F100 SH 29/27.5″ 825 Wh 2025 - kellys-theos-f100-sh-2927.5-825-wh-2025.jpeg
  • Kellys THEOS F100 SH 29/27.5″ 825 Wh 2025 - kellys-theos-f100-sh-2927.5-825-wh-2025-1.jpeg
  • Kellys THEOS F100 SH 29/27.5″ 825 Wh 2025 - kellys-theos-f100-sh-2927.5-825-wh-2025-2.jpeg
  • Kellys THEOS F100 SH 29/27.5″ 825 Wh 2025 - kellys-theos-f100-sh-2927.5-825-wh-2025-3.jpeg
  • Kellys THEOS F100 SH 29/27.5″ 825 Wh 2025 - kellys-theos-f100-sh-2927.5-825-wh-2025-4.jpeg
  • Kellys THEOS F100 SH 29/27.5″ 825 Wh 2025 - kellys-theos-f100-sh-2927.5-825-wh-2025-5.jpeg
  • Kellys THEOS F100 SH 29/27.5″ 825 Wh 2025 - kellys-theos-f100-sh-2927.5-825-wh-2025-6.jpeg
  • Kellys THEOS F100 SH 29/27.5″ 825 Wh 2025 - kellys-theos-f100-sh-2927.5-825-wh-2025-7.jpeg

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Carbon
  • Travel Front 150mm
  • Travel Rear 140mm
  • Fork RockShox Lyrik Ultimate
  • Groupset XT Di2
  • Suspension Full
  • Motor Shimano 600W 85Nm mid-drive
  • Battery KELLYS Re-Charge K1 Li-ion internal removable 825 Wh / capacity 23 Ah
  • Drivetrain 1 × 12 Electronic
  • Brakes Shimano XTR Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

KELLYS THEOS F100 Carbon-Aramid Composite / Designed & manufactured in EUROPE / Think Link® suspension system, 140 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29/27.5"+ wheelset, 12x148 mm Boost thru axle

Suspension Fork

ROCK SHOX Lyrik Ultimate (29") Boost, 150 mm, DebonAir / Charger 3 RC2 / Maxle Stealth 15 mm thru axle

Rear Shock

ROCK SHOX Super Deluxe Select+ RT, DebonAir / Open-Threshold (210x55 mm)

Drivetrain

Rear Derailleur

SHIMANO Deore XT Di2 M8150 (direct mount)

Shift Levers

SHIMANO SW-EN600-R Di2 for shifting

Cassette

SHIMANO XTR CS-M9100-12 (10-51T)

Crank

SHIMANO EM900 Hollowtech / CRE80-12-B (36T) - length 165 mm

Chain

SHIMANO XTR CN-M9100 (122 links)

Wheels

Rims

RACE FACE Next R 31 Carbon 622x31 front / RACE FACE Next R 36 Carbon 584x36 Microspline rear (15x110 mm / 12x148 mm)

Tires

Front: SCHWALBE Nobby Nic Evo Super Trail 62-622 (29"x2.40) Tubeless Easy, ADDIX SpeedGrip, folding, Rear: SCHWALBE Nobby Nic Evo Super Trail 62-584 (27.5"x2.40) Tubeless Easy, ADDIX SpeedGrip, folding

Brakes

Brakes

SHIMANO XTR M9120 Hydraulic Disc

Brake Levers

SHIMANO XTR BL-M9120

Cockpit

Stem

RACE FACE Turbine R 35 - diam 28.6 mm / bar bore 35 mm / 0° / length 50 mm

Handlebar

RACE FACE Next R 35 RiseBar - diam 35 mm / rise 20 mm / width 780 mm

Grips

KLS Poison

Seat

Saddle

fi’zi:k Vento Argo R1

Seatpost

KS LEV-Ci Remote Telescopic - diam 30.9 mm / length 440 mm, travel 150 mm

Motor & Battery

Motor

SHIMANO EP801, 85 Nm, 36 V

Battery

KELLYS Re-Charge K1 Li-ion internal removable 825 Wh / capacity 23 Ah

Fit data

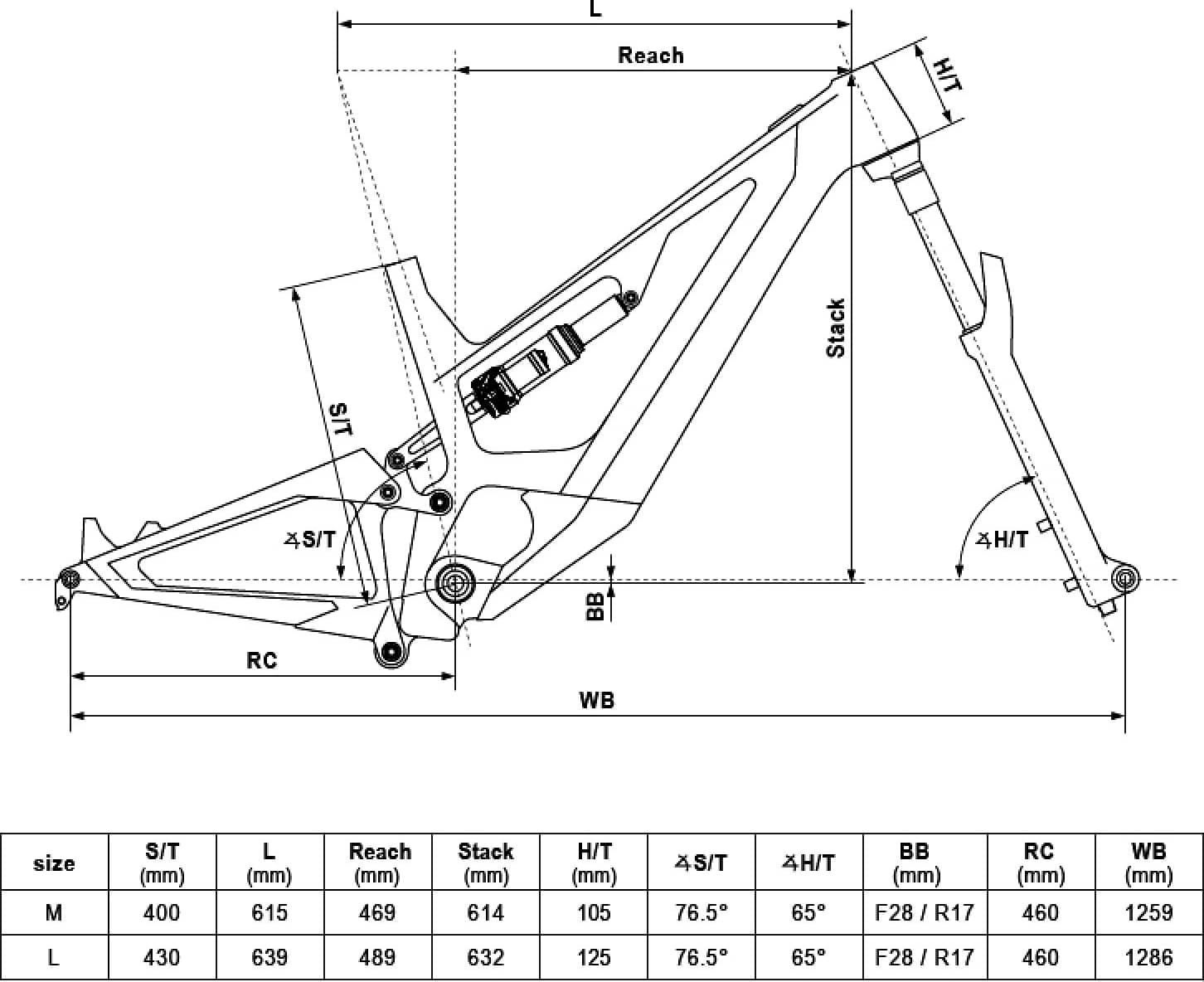

Geometry

Numbers for sizing and ride feel.

SizeMDLG
Wheels29"29"
