Kellys THEOS F60 SH 29/27.5″ 820 Wh 2025
2025 E-bike
Estimate price |
5,963$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Domain
-
Groupset XT -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery KELLYS Re-Charge K1 Li-ion internal removable 820 Wh / capacity 23 Ah, co-developed by KELLYS-BMZ -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS THEOS F100 Carbon-Aramid Composite / Designed & manufactured in EUROPE / Think Link® suspension system, 140 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29/27.5"+ wheelset, 12x148 mm Boost thru axle
Suspension Fork
ROCK SHOX Domain R (29") Boost, 150 mm, 38mm stanchions, DebonAir / Motion Control / Maxle Stealth 15 mm thru axle
Rear Shock
ROCK SHOX Super Deluxe Select+ RT, DebonAir+ / Open-Threshold (210x55 mm)
Drivetrain
Rear Derailleur
SHIMANO Deore XT Linkglide M8130 (direct mount)
Shift Levers
SHIMANO Deore XT Linkglide SL-M8130-R Rapidfire Plus (I-Spec EV)
Cassette
SHIMANO Linkglide CS-LG600-11 (11-50T)
Crank
SHIMANO EP6 EM600 / CRE70-B (34T) - length 170 mm
Chain
SHIMANO Linkglide CN-LG500 (122 links)
Wheels
Front Hub
SHIMANO MT400-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rear Hub
SHIMANO MT400-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rims
KLS Bender Disc 622x38 front / 584x38 rear (32 holes)
Spokes
stainless steel black
Tires
Front: SCHWALBE Magic Mary Evo Super Trail 62-622 (29x2.40) Tubeless Easy, ADDIX Ultra Soft, folding, Rear: SCHWALBE Big Betty Evo Super Trail 65-584 (27.5x2.60) Tubeless Easy, ADDIX Soft, folding
Brakes
Brakes
SHIMANO Deore M6120 Hydraulic Disc
Brake Levers
SHIMANO Deore BL-M6100
Cockpit
Stem
KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / length 60 mm
Handlebar
KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 25 mm / width 780 mm
Grips
KLS Poison OneLockon
Seat
Saddle
fi’zi:k Taiga, S-alloy rails
Seatpost
LIMOTEC A1 Remote Telescopic - diam 30.9 mm / length 445 mm, travel 150 mm
Motor & Battery
Motor
SHIMANO EP801, 85 Nm, 36 V
Battery
KELLYS Re-Charge K1 Li-ion internal removable 820 Wh / capacity 23 Ah, co-developed by KELLYS-BMZ
Fit data

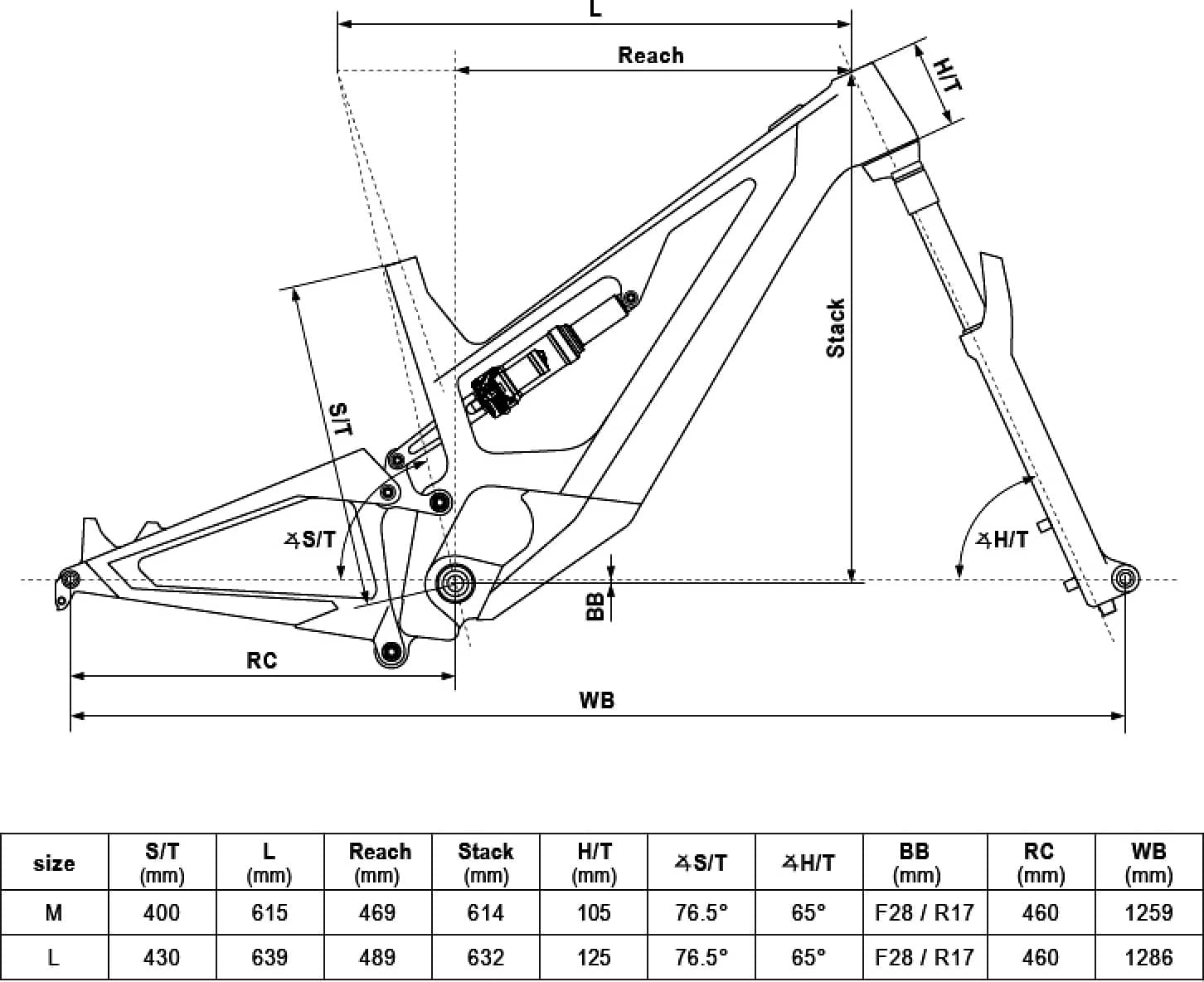

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 29" | 29" |
