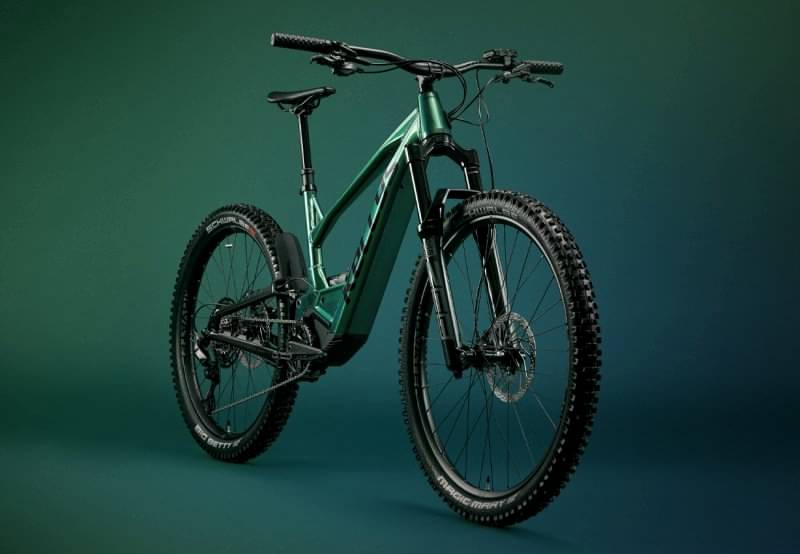

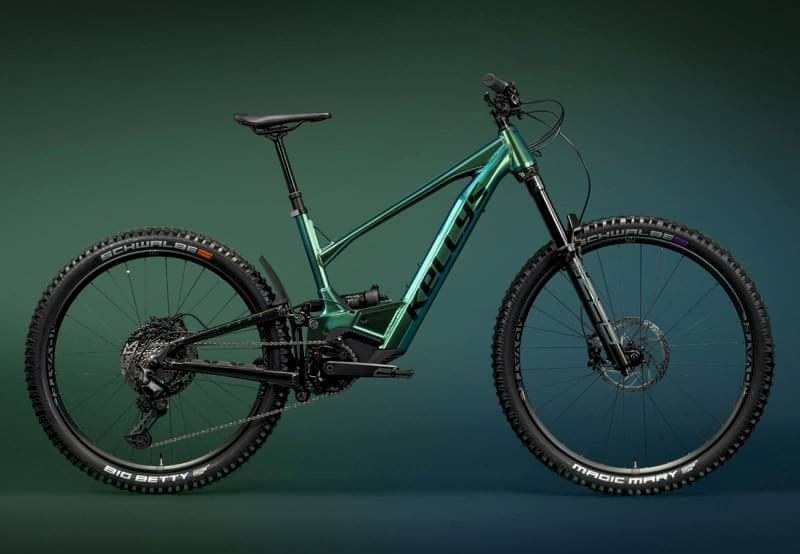

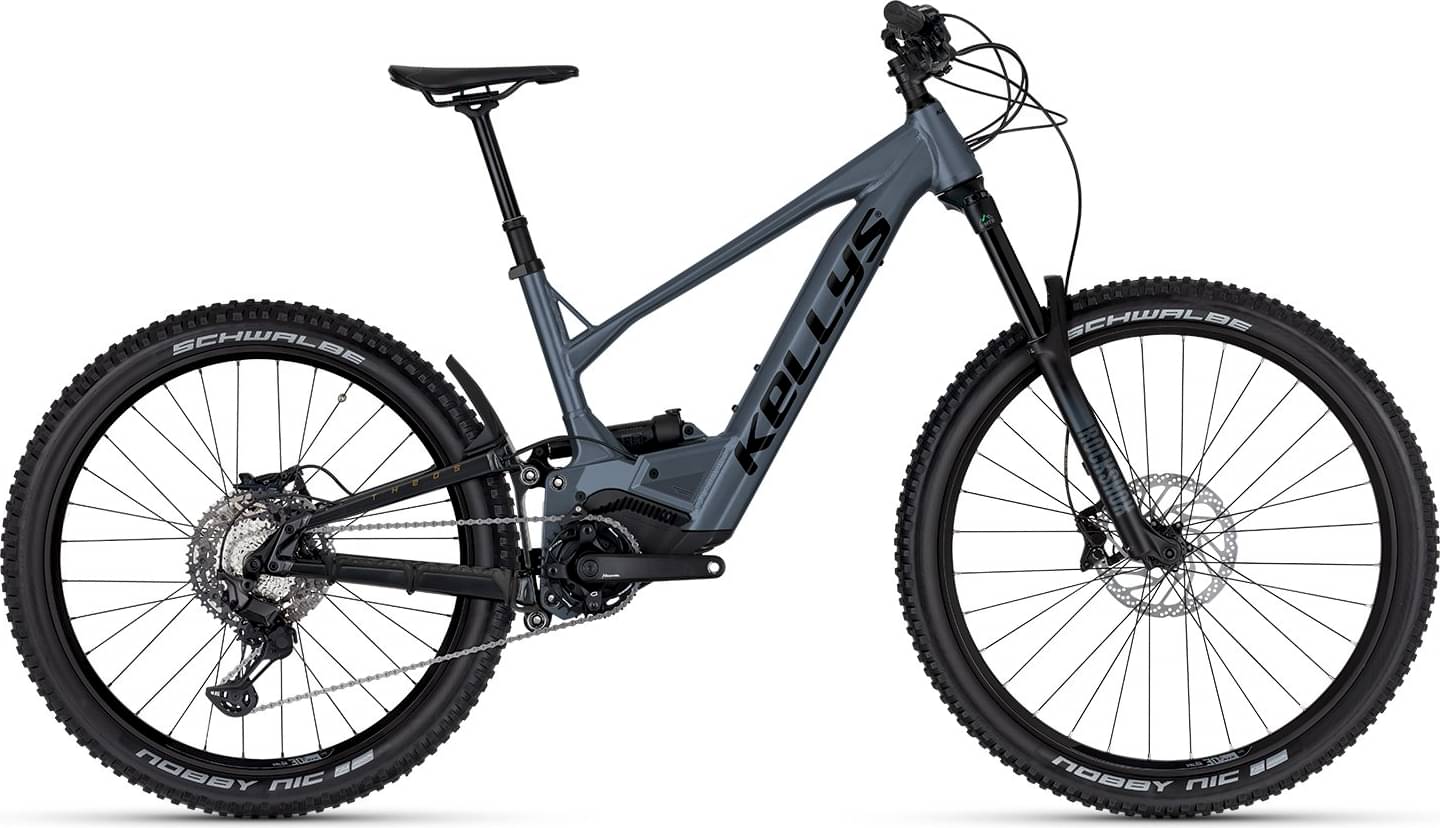

Kellys THEOS R30 P 29/27.5″ 725 Wh 2024
2024 E-bike
Estimate price |
5,275$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 130mm -
Fork RockShox 35 Silver
-
Groupset CUES -
Suspension Full -

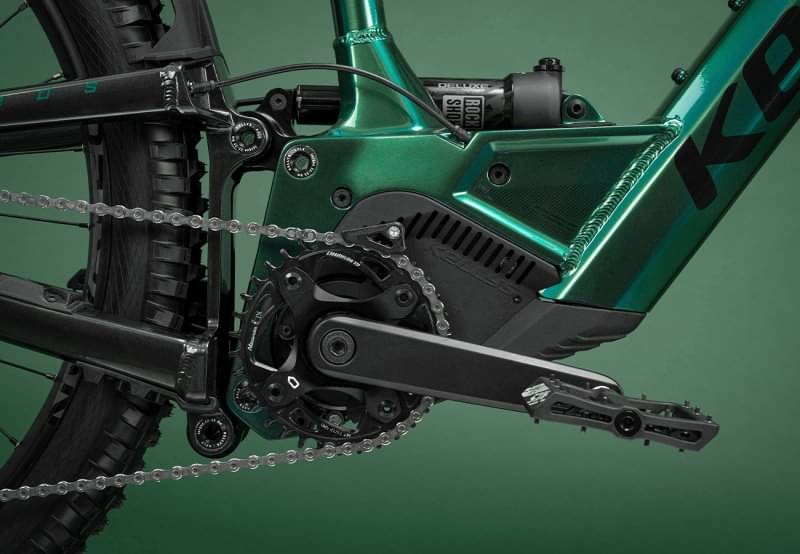

Motor Panasonic 95Nm mid-drive -
Battery KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by Kellys-BMZ -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS THEOS R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / Think Link® suspension system, 130 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29" / 27.5"+ wheelset, 12x148 mm Boost thru axle
Suspension Fork
ROCK SHOX 35 Silver TK (29") Boost, 150 mm, Solo Air / TurnKey / Maxle Stealth 15 mm thru axle
Rear Shock
ROCK SHOX Deluxe Select R, DebonAir+ (210x55 mm)
Drivetrain
Rear Derailleur
SHIMANO Cues U6000 (direct mount)
Shift Levers
SHIMANO Cues SL-U6000-10 Rapidfire Plus
Cassette
SHIMANO Linkglide CS-LG400-10 (11-48T)
Crank
MIRANDA Miranda (34T) - length 170 mm
Chain
SHIMANO Linkglide CN-LG500 (122 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO MT400-B Disc Center Lock (32 holes)
Rear Hub
SHIMANO MT400-B Disc Center Lock (32 holes)
Rims
KLS Valor 3 Disc 622x30 front / 584x30 rear (32 holes)
Spokes
stainless steel black
Tires
Front: SCHWALBE Nobby Nic Performance 60-622 (29"x2.35) Tubeless Easy, ADDIX, folding, Rear: SCHWALBE Nobby Nic Performance 65-584 (27.5"x2.60) Tubeless Easy, ADDIX, folding
Brakes
Brakes
SHIMANO MT420 / MT410 hydraulic disc
Brake Levers
SHIMANO Deore BL-M4100
Cockpit
Stem
KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / length 60 mm
Handlebar
KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 25 mm / width 780 mm
Grips
KLS Poison OneLockon
Seat
Saddle
fi’zi:k Taiga, S-alloy rails
Seatpost
LIMOTEC A1 Remote Telescopic - diam 30.9 mm / length 445 mm, travel 150 mm
Motor & Battery
Motor
PANASONIC GX Ultimate, 95 Nm, 36 V
Battery
KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by Kellys-BMZ
Fit data

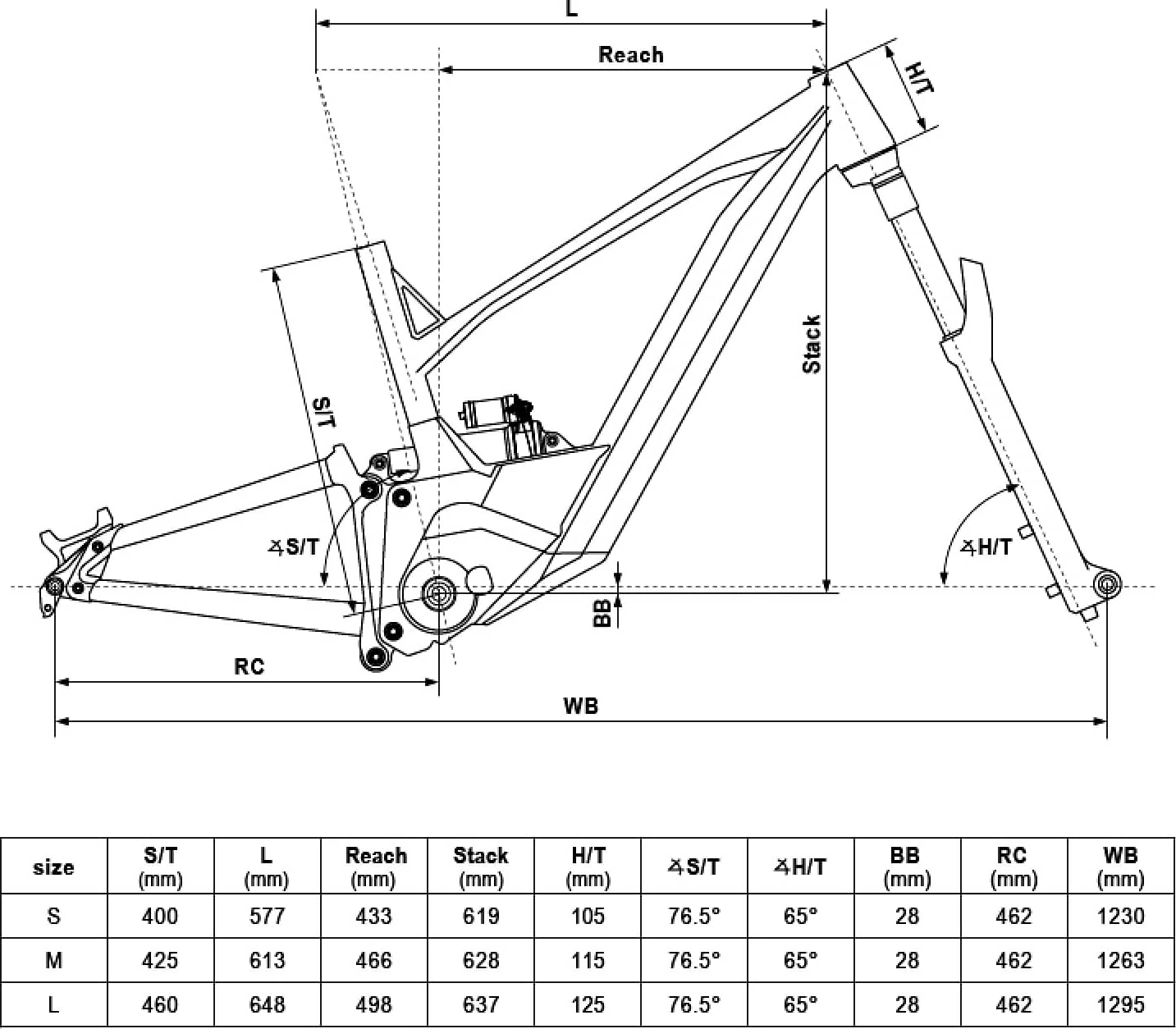

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
