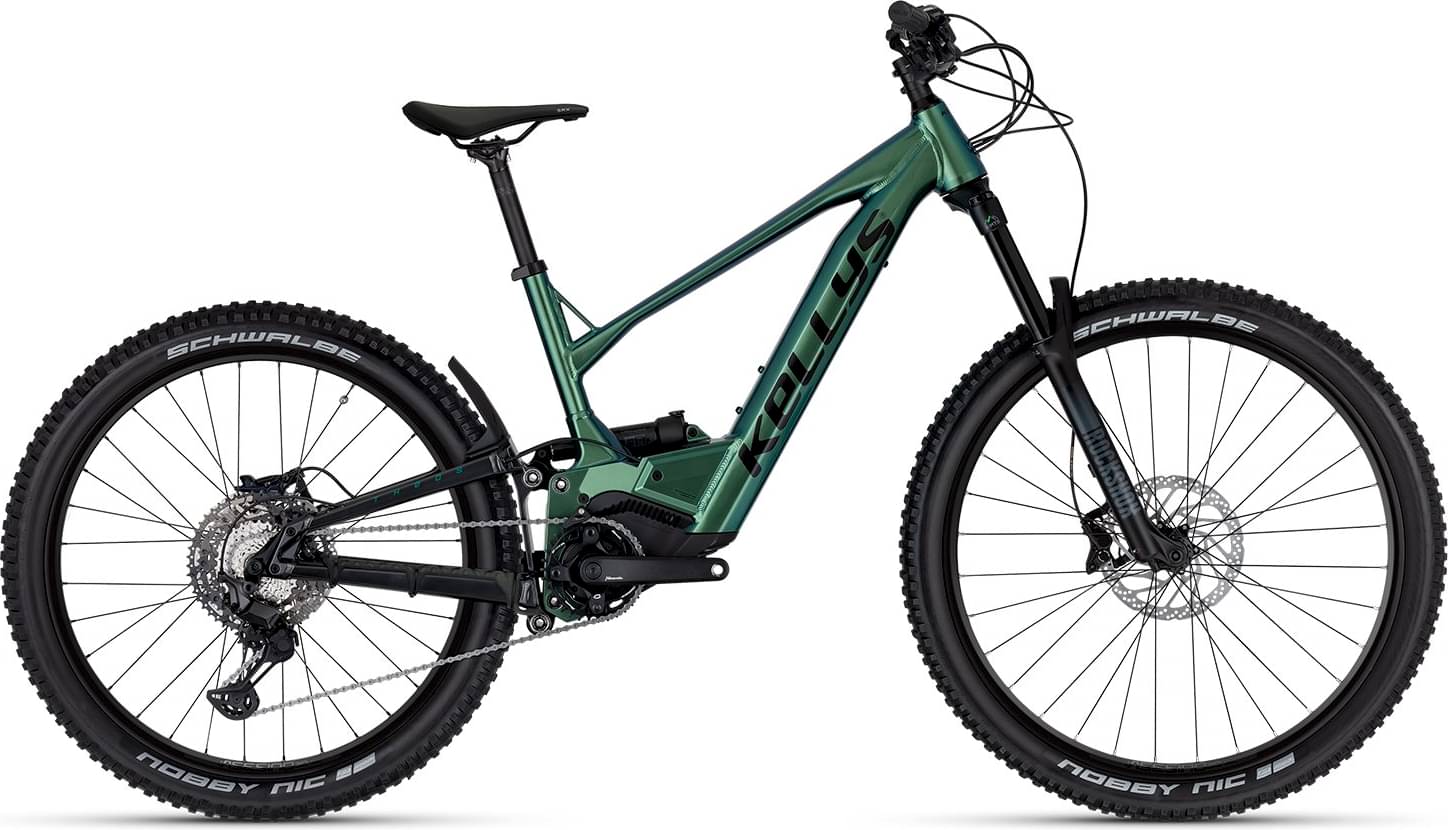

Kellys THEOS R50 LTD P MAGIC 29/27.5″ 725 Wh 2025
2025 E-bike
Estimate price |
4,187$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 130mm -
Fork RockShox Recon Silver RL
-
Groupset CUES -
Suspension Full -
Motor Panasonic 95Nm mid-drive -
Battery KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by Kellys-BMZ -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS THEOS R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / Think Link® suspension system, 130 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29" / 27.5"+ wheelset, 12x148 mm Boost thru axle
Suspension Fork
ROCK SHOX Recon Silver RL (29") Boost, 150 mm, SOLO Air+/ Maxle Stealth 15 mm thru axle
Rear Shock
ROCK SHOX Deluxe Select+ R, LinearAir+ (210x55 mm)
Drivetrain
Rear Derailleur
SHIMANO Cues U4000 (direct mount)
Shift Levers
SHIMANO Cues U4010-9 Rapidfire Plus
Cassette
SHIMANO Linkglide CS-LG300-9 (11-46T)
Crank
MIRANDA Miranda (34T) - length 170 mm
Chain
SHIMANO Linkglide CN-LG500 (122 links)
Wheels
Front Hub
SHIMANO TC500-B / Deore TC500-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rear Hub
SHIMANO TC500-B / Deore TC500-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rims
KLS Asesino 30 Disc 622x30 / 584x30 (32 holes)
Tires
Front: SCHWALBE Nobby Nic 62-622 (29"x2.40) ADDIX, Rear: SCHWALBE Nobby Nic 62-584 (27.5"x2.40) ADDIX
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / length 60 mm
Handlebar
KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 25 mm / width 780 mm
Grips
KLS Poison OneLockon
Seat
Saddle
SELLE ROYAL SRX
Seatpost
KLS Active - diam 30.9 mm / length 350 mm
Motor & Battery
Motor
PANASONIC GX Ultimate, 95 Nm, 36 V
Battery
KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by Kellys-BMZ
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
