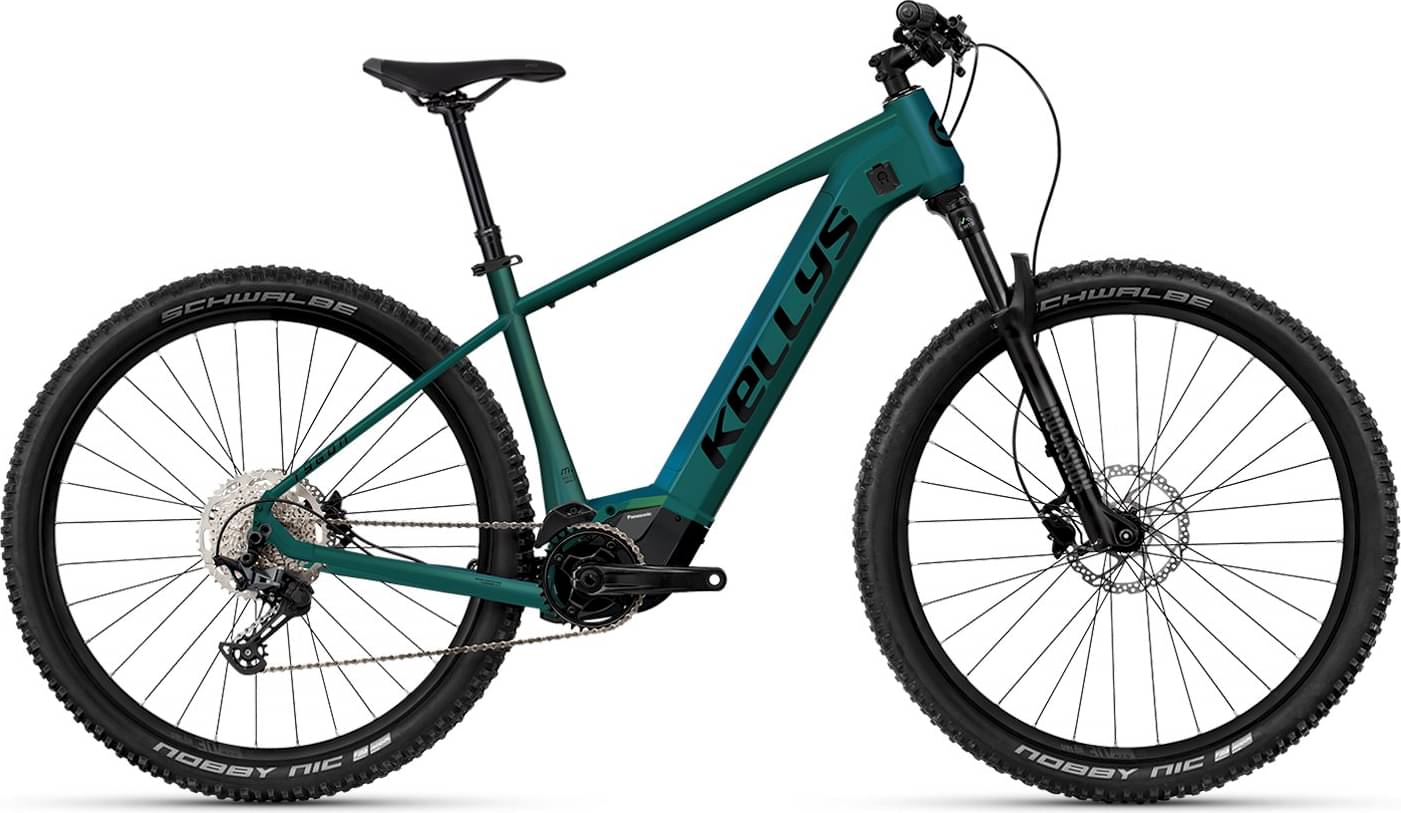

Kellys TYGON R90 P MAGIC 29″ 820 Wh 2025
2025 E-bike
Estimate price |
3,954$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Fork RockShox Psylo
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Panasonic 95Nm mid-drive -
Battery KELLYS Re-Charge V10 Li-ion internal removable 820 Wh / capacity 23 Ah, co-developed by Kellys-BMZ -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS TYGON R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5“ tapered HT, 12x148 mm Boost thru axle
Suspension Fork
ROCK SHOX Psylo Gold RC (29") Boost, 130 mm, DebonAir / Maxle Stealth 15 mm thru axle
Drivetrain
Rear Derailleur
SHIMANO Deore XT M8100 (direct mount)
Shift Levers
SHIMANO Deore SL-M6100-IR Rapidfire Plus (I-Spec EV)
Cassette
SHIMANO CS-M6100-12 (10-51T)
Crank
MIRANDA Delta (36T) - length 170 mm
Chain
SHIMANO CN-M6100 (122 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO TC500-B / Deore TC500-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rear Hub
SHIMANO TC500-B / Deore TC500-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rims
KLS ASESINO 30 Disc 622x30 (32 holes)
Spokes
stainless steel black
Tires
SCHWALBE Nobby Nic Performance 60-622 (29x2.40) ADDIX, folding
Brakes
Brakes
SHIMANO Deore MT420 Hydraulic Disc
Brake Levers
SHIMANO Deore BL-M4100
Cockpit
Stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / 6° / length 80 mm
Handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 720 mm
Grips
KLS Poison OneLockon
Seat
Saddle
SELLE ROYAL Vivo
Seatpost
LIMOTEC A1 Remote Telescopic - diam 30.9 mm / length 445 mm, travel 150 mm
Motor & Battery
Motor
PANASONIC GX Ultimate, 95 Nm, 36 V
Battery
KELLYS Re-Charge V10 Li-ion internal removable 820 Wh / capacity 23 Ah, co-developed by Kellys-BMZ
Fit data

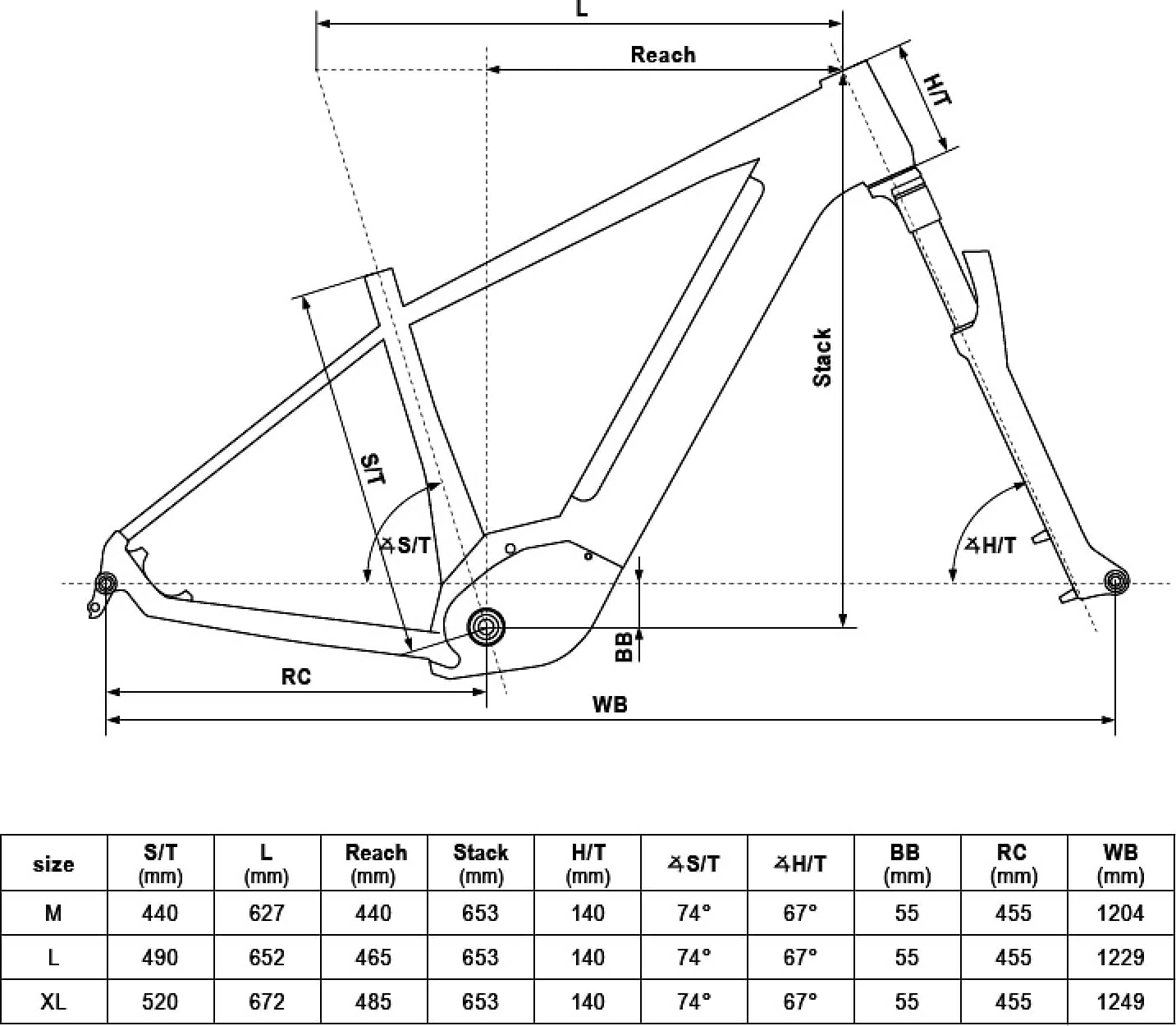

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
