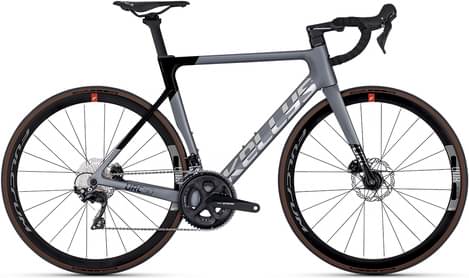

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS iCAD RC Carbon Pro Disc / Power Core, tapered HT 1.5 ACR System, flat mount, internal routing / 12 mm thru axle
Suspension Fork
KELLYS Carbon Disc, 1.5 tapered steerer / flat mount disc brake / 12 mm thru axle
Drivetrain
Rear Derailleur
SHIMANO 105 R7000 (direct mount)
Front Derailleur
SHIMANO 105 R7000 (braze on)
Shift Levers
SHIMANO 105 ST-RS505 Dual Control
Cassette
SHIMANO CS-R7000-11 (11-32T)
Crank
SHIMANO 105 R7000 Hollowtech II (52x36T) - length 172.5 mm (S - M), 175 mm (L)
Bottom Bracket
SHIMANO Press-Fit BB71-41B
Chain
SHIMANO CN-HG601-11 (108 links)
Wheels
Rims
FULCRUM Racing 800 DB Disc Center Lock (12x100 mm / 12x142 mm)
Tires
SCHWALBE One Performance 28-622 (700x28C) RaceGuard, ADDIX
Brakes
Brakes
SHIMANO 105 R7070 Hydraulic Disc
Brake Levers
SHIMANO 105 ST-R7020 Dual Control
Cockpit
Stem
FSA NS ACR - diam 28.6 mm / bar bore 31.8 mm / 84° / length 80 mm (S), 90 mm (M), 110 mm (L)
Handlebar
FSA Energy Compact ACR - diam 31.8 mm / width 420 mm (S), 440 mm (M), 460 mm (L)
Grips
fi’zi:k Microtex bar tape
Seat
Saddle
fi’zi:k Antares R7, S-alloy rails
Seatpost
carbon aero - length 357 mm
Fit data

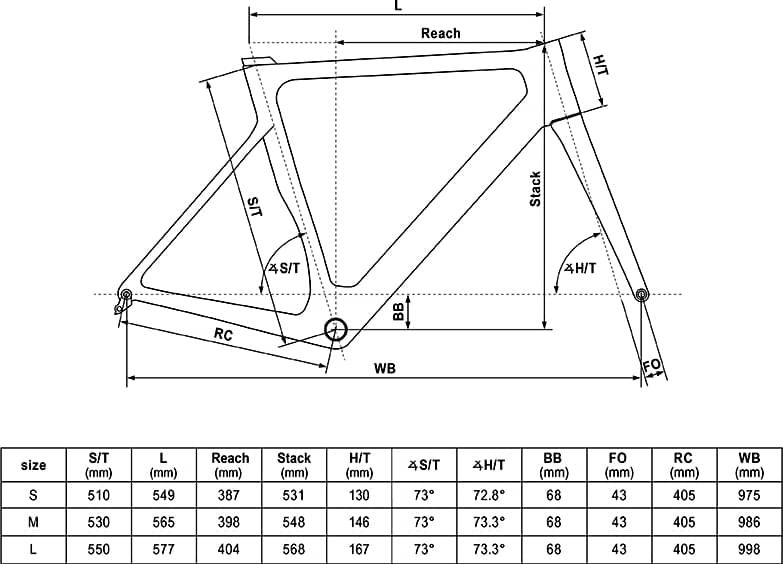

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
