Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Fork Suntour XCE
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS KLC 26 - Lady Sport Geometry
Suspension Fork
SR SUNTOUR XCE28 P (26), 80 mm, coil spring
Drivetrain
Rear Derailleur
SHIMANO TY200 (direct mount)
Front Derailleur
SHIMANO TY300 (34.9 mm)
Shift Levers
SHIMANO ST-EF41-7 EZ-fire Plus
Cassette
SHIMANO CS-HG200-7 (12-32T)
Crank
PROWHEEL (42x34x24T) - length 170 mm
Bottom Bracket
cartridge (122 mm)
Chain
KMC Z7 (108 links)
Pedals
plastic
Wheels
Front Hub
alloy / SHHIMANO TY500 or KT (32 holes)
Rear Hub
alloy / SHHIMANO TY500 or KT (32 holes)
Rims
KLS Draft 559x21 (32 holes)
Spokes
steel
Tires
IMPAC Ridgepac or WTB Nano 54-559 (26x2.10)
Brakes
Brakes
APSE V-brake
Brake Levers
SHIMANO ST-EF41-7 EZ-fire Plus
Cockpit
Stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / 8° / length 75 mm
Handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 620 mm (XS), 660 mm (S)
Grips
KLS Advancer
Seat
Saddle
KLS Ebony Women
Seatpost
KLS Active - diam 30.9 mm / length 350 mm
Fit data

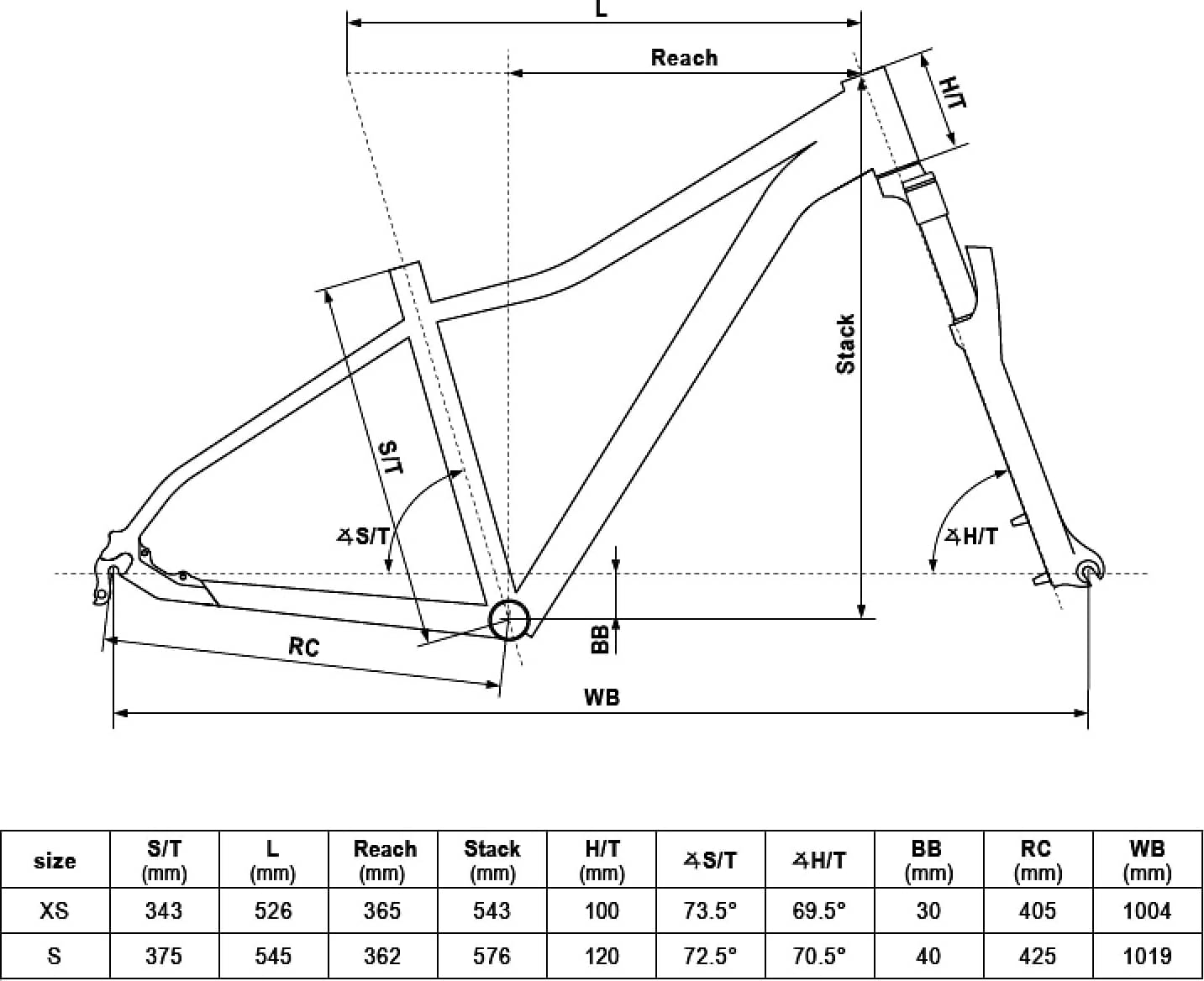

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM |
|---|---|---|
| Wheels | 26" | 26" |
