Bike details
Overview
Key information split into simple groups.

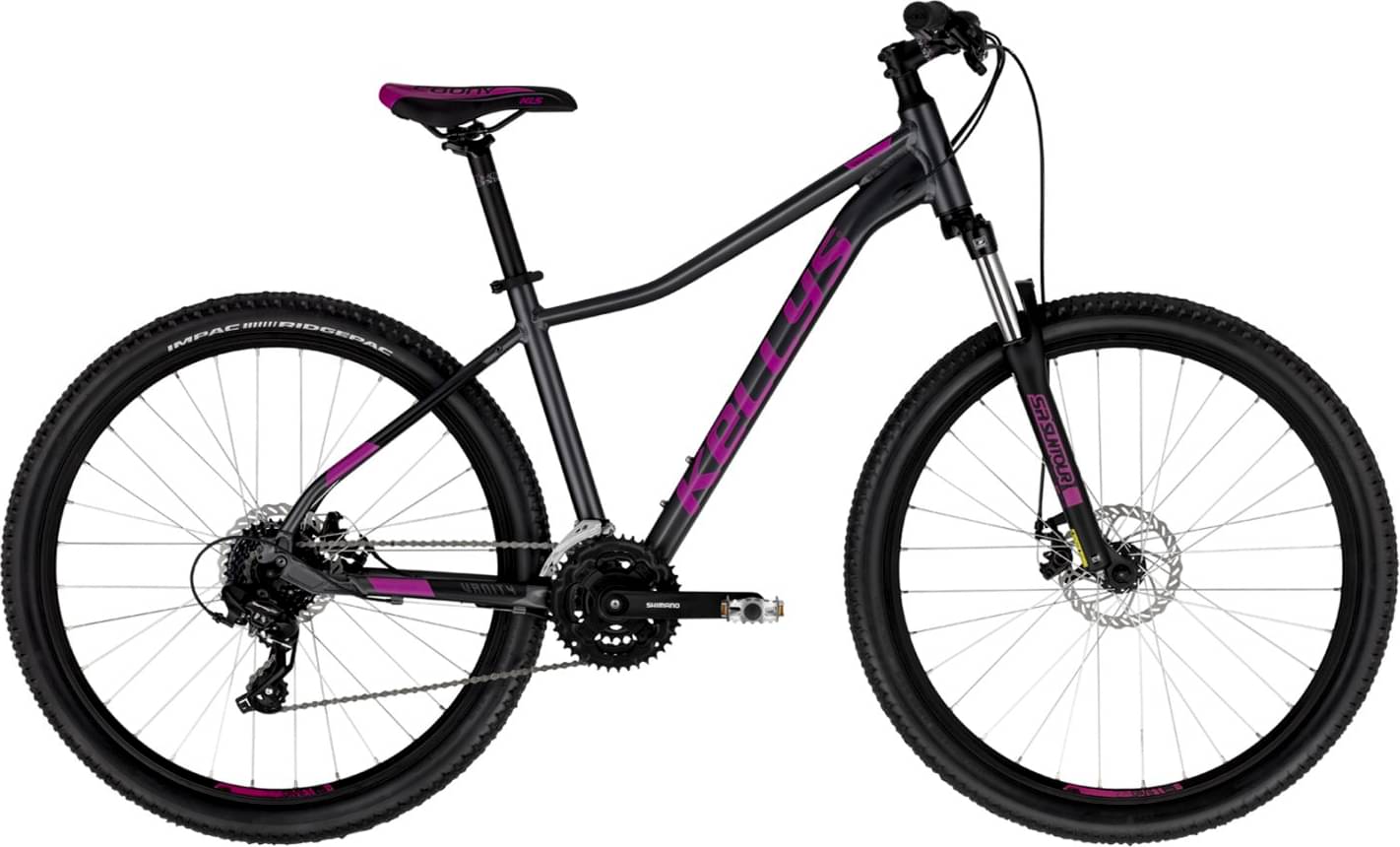

Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCE
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS KLC 29 - Lady Sport Geometry
Suspension Fork
SR SUNTOUR XCE28 DS (29), 100 mm, coil spring
Drivetrain
Rear Derailleur
SHIMANO TX800 (direct mount)
Front Derailleur
SHIMANO TY600 (34.9 mm)
Shift Levers
SHIMANO ST-EF500-8 EZ-fire Plus
Cassette
SHIMANO CS-HG200-8 (12-32T)
Crank
SHIMANO TY301 (42x34x24T) - length 175 mm
Bottom Bracket
cartridge (122 mm)
Chain
KMC Z8 (112 links)
Pedals
alloy
Wheels
Front Hub
KLS Firework Disc (32 holes)
Rear Hub
KLS Firework Disc (32 holes)
Rims
KLS Draft Disc 622x21 (32 holes)
Spokes
steel
Tires
IMPAC Ridgepac or WTB Nano 54-622 (29x2.10)
Brakes
Brakes
Mechanical Disc
Brake Levers
SHIMANO ST-EF500-8 EZ-fire Plus
Cockpit
Stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / 8° / length 75 mm (M), 90 mm (L)
Handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width680 mm
Grips
KLS Advancer
Seat
Saddle
KLS Ebony Women
Seatpost
KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M - L)
Fit data

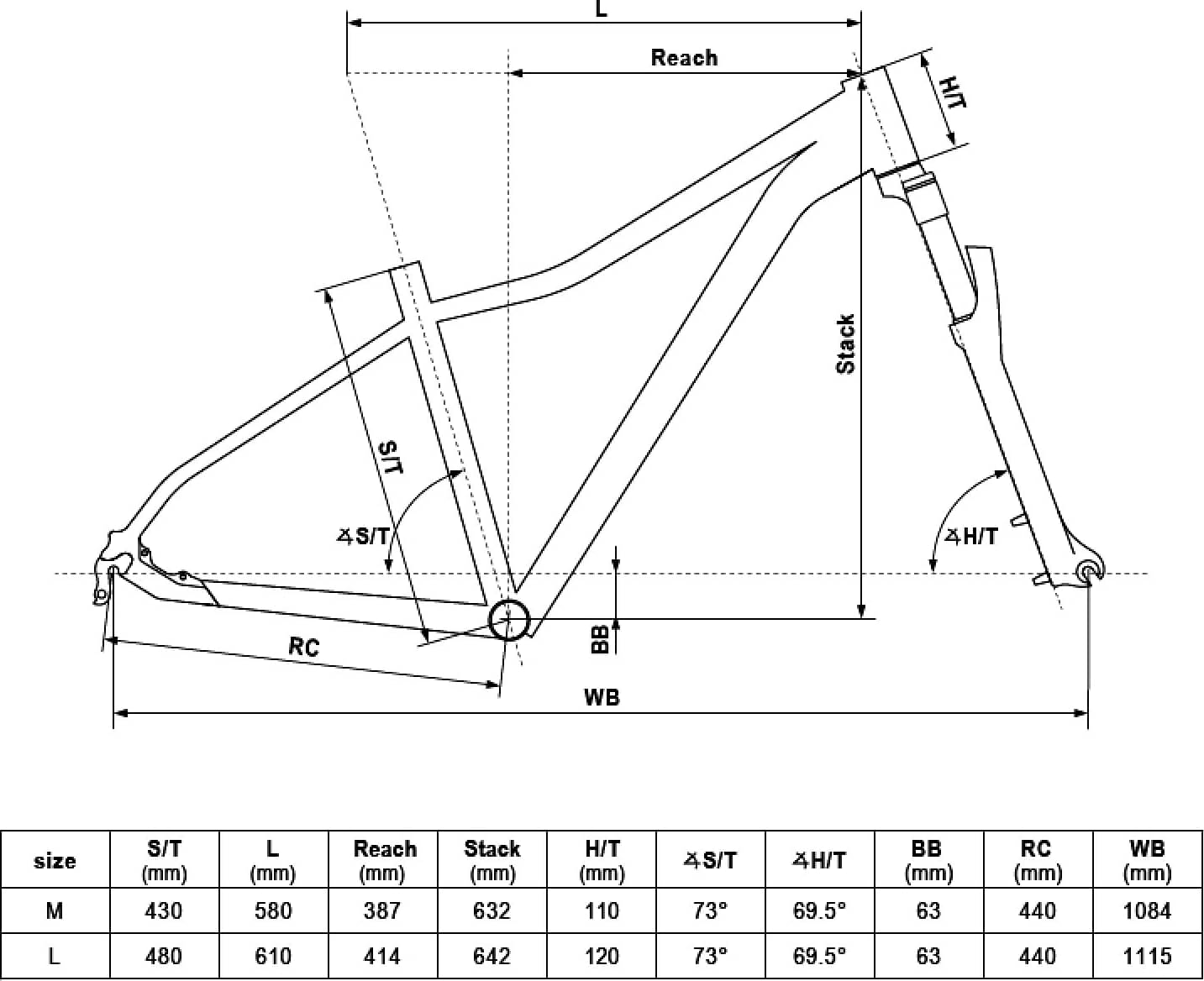

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 29" | 29" |
