Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS KLC 26 - Lady Sport Geometry
Suspension Fork
SR SUNTOUR XCM HLO DS (26), 100 mm, coil / Speed Lockout
Drivetrain
Rear Derailleur
SHIMANO Altus M310 (direct mount)
Front Derailleur
SHIMANO TY600 (34.9 mm)
Shift Levers
SHIMANO SL-M315 Rapidfire Plus
Cassette
SHIMANO CS-HG200-8 (12-32T)
Crank
SHIMANO TY501 (42x34x24T) - length 170 mm
Bottom Bracket
cartridge (122 mm)
Chain
KMC Z8 (110 links)
Pedals
alloy
Wheels
Front Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rear Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rims
KLS Draft Disc 559x21 (32 holes)
Spokes
steel
Tires
IMPAC Ridgepac or WTB Nano 54-622 (29x2.10)
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc or KLS 1600 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / 8° / length 75 mm
Handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 620 mm (XS), 660 mm (S)
Grips
KLS Advancer
Seat
Saddle
KLS Ebony Women
Seatpost
KLS Active - diam 30.9 mm / length 350 mm

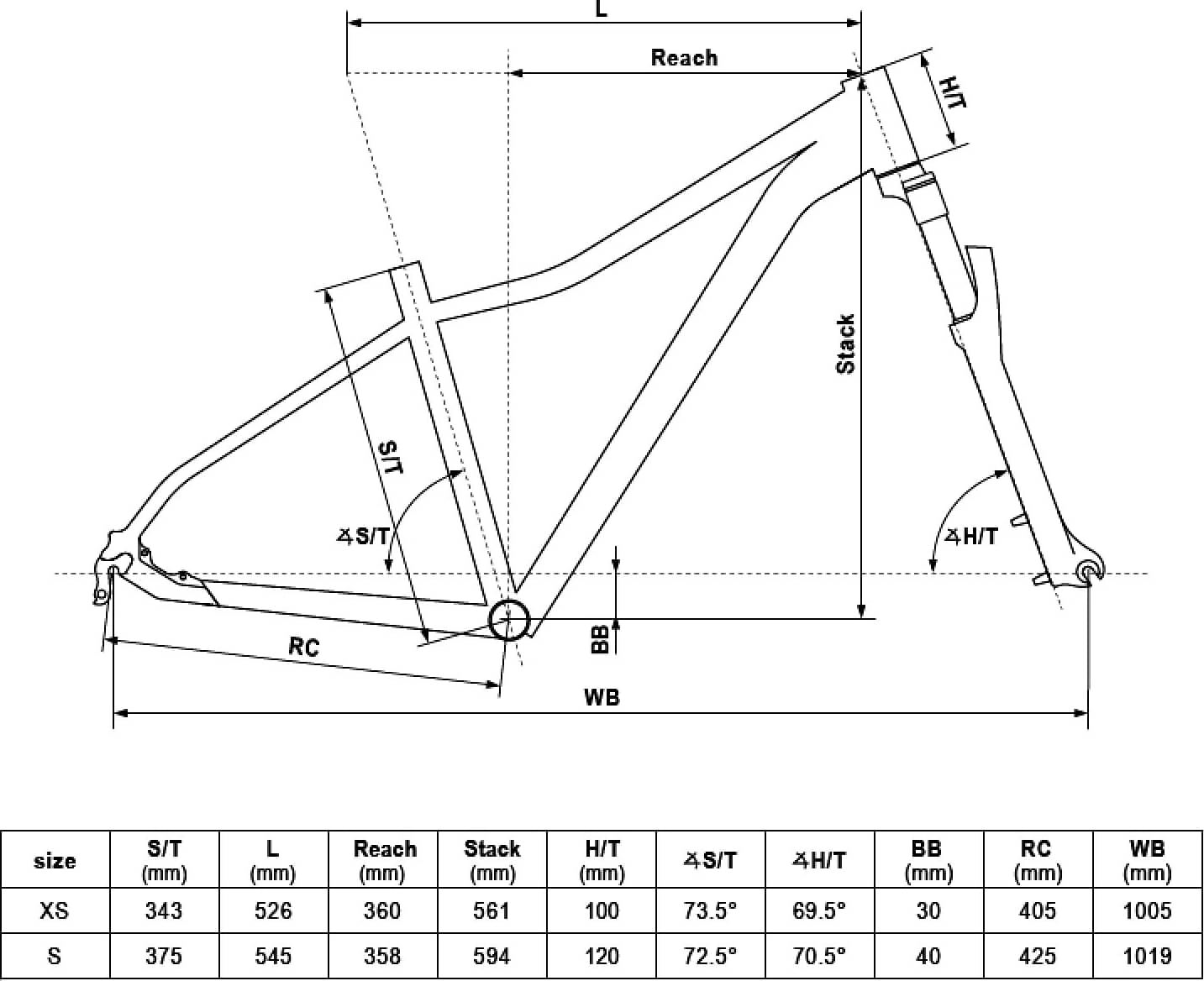

Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM |
|---|---|---|
| Wheels | 26" | 26" |
