Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS KLC 29 - Lady Sport Geometry
Suspension Fork
SR SUNTOUR XCR32 RLR Air (29), 100 mm, air / Remote Speed Lockout

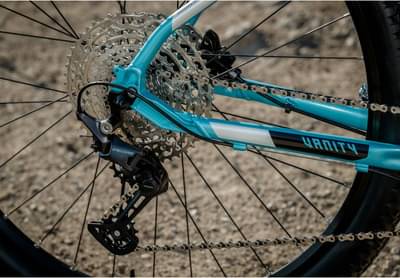

Drivetrain
Rear Derailleur
SHIMANO Deore M6100 (direct mount)
Shift Levers
SHIMANO Deore SL-M6100-R Rapidfire Plus
Cassette
SHIMANO CS-M6100-12 (10-51T)
Crank
SAMOX (34T) - length 170 mm (M), 175 mm (L)
Bottom Bracket
cartridge (122 mm)
Chain
KMC X12 (116 links)
Pedals
alloy
Wheels
Front Hub
SHIMANO TX505 / Deore MT401 Disc Center Lock (32 holes)
Rear Hub
SHIMANO TX505 / Deore MT401 Disc Center Lock (32 holes)
Rims
KLS Draft Disc 622x21 (32 holes)
Spokes
stainless steel black
Tires
SCHWALBE Rapid Rob 54-622 (29x2.10) K-Guard
Brakes
Brakes
SHIMANO MT200 hydraulic disc
Brake Levers
SHIMANO BL-MT200

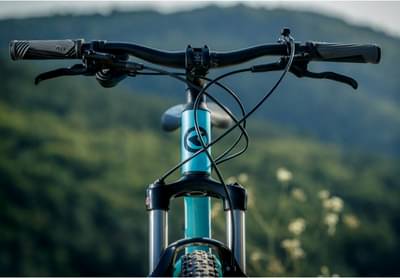

Cockpit
Stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / 8° / length 75 mm (M), 90 mm (L)
Handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width680 mm
Grips
KLS Advancer 2Density
Seat
Saddle
KLS Ebony Women
Seatpost
KLS Active - diam 30.9 mm / length 400 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 29" | 29" |
