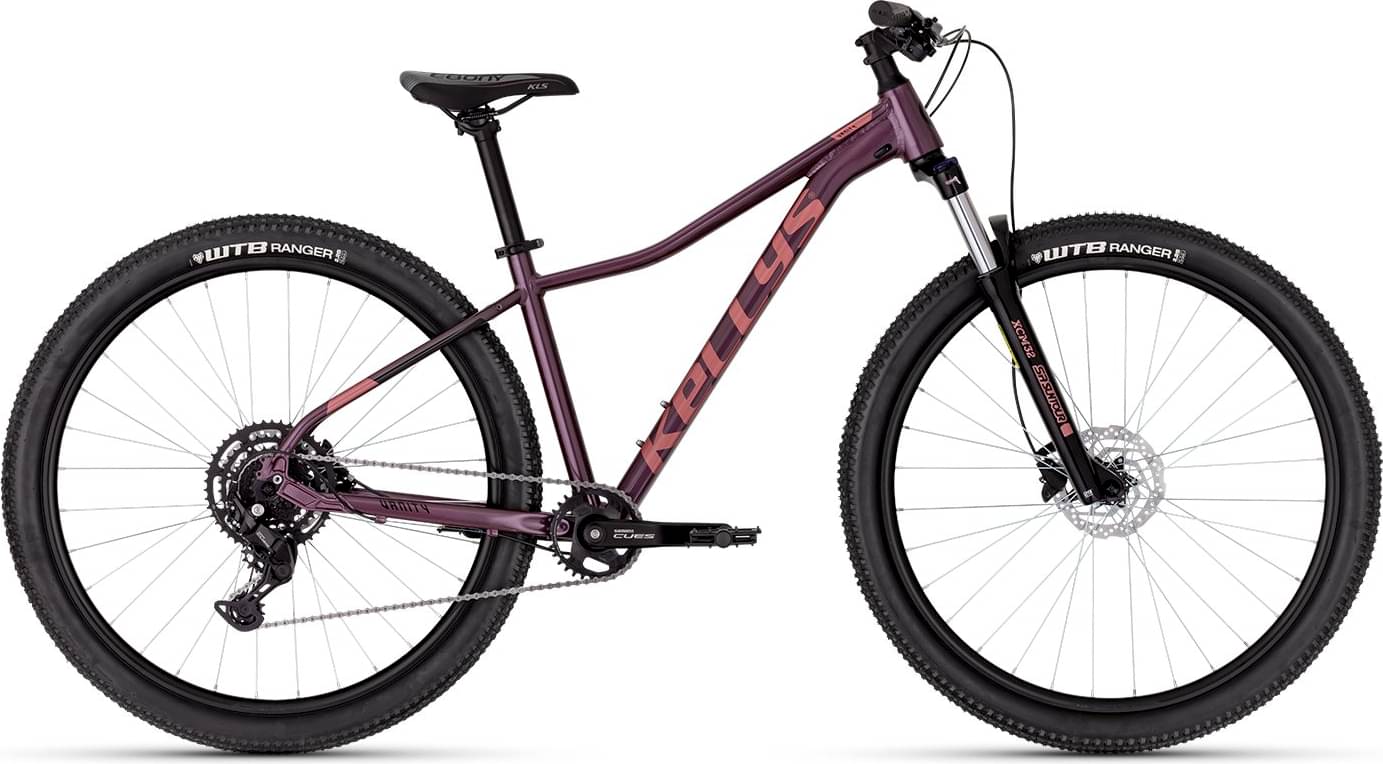

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset CUES -
Suspension Hardtail -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS KLC 29" - Lady Sport Geometry
Suspension Fork
SR SUNTOUR XCM32 NLO DS (29"), 100 mm, coil / Speed Lockout
Drivetrain
Rear Derailleur
SHIMANO Cues U4000 (direct mount)
Shift Levers
SHIMANO Cues U4010-9 Rapidfire Plus
Cassette
SHIMANO Cues CS-LG300-9 (11-46T)
Crank
SHIMANO Cues U4000-1 (32T) - length 175 mm
Bottom Bracket
cartridge (122 mm)
Chain
SHIMANO Cues LG500 (110 links)
Pedals
alloy
Wheels
Front Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rear Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rims
KLS Draft Disc 622x23 (32 holes)
Spokes
steel
Tires
WTB Ranger Comp 57-622 (29"x2.25)
Brakes
Brakes
SHIMANO MT200 hydraulic disc
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / 8° / length 75 mm (M), 90 mm (L)
Handlebar
KLS Active RiseBar - diam 31.8mm / rise 18mm / width 620mm (M), 660mm (L)
Grips
KLS Advancer 2Density
Seat
Saddle
KLS Ebony Women
Seatpost
KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M - L)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 29" | 29" |
