Bike details
Overview
Key information split into simple groups.

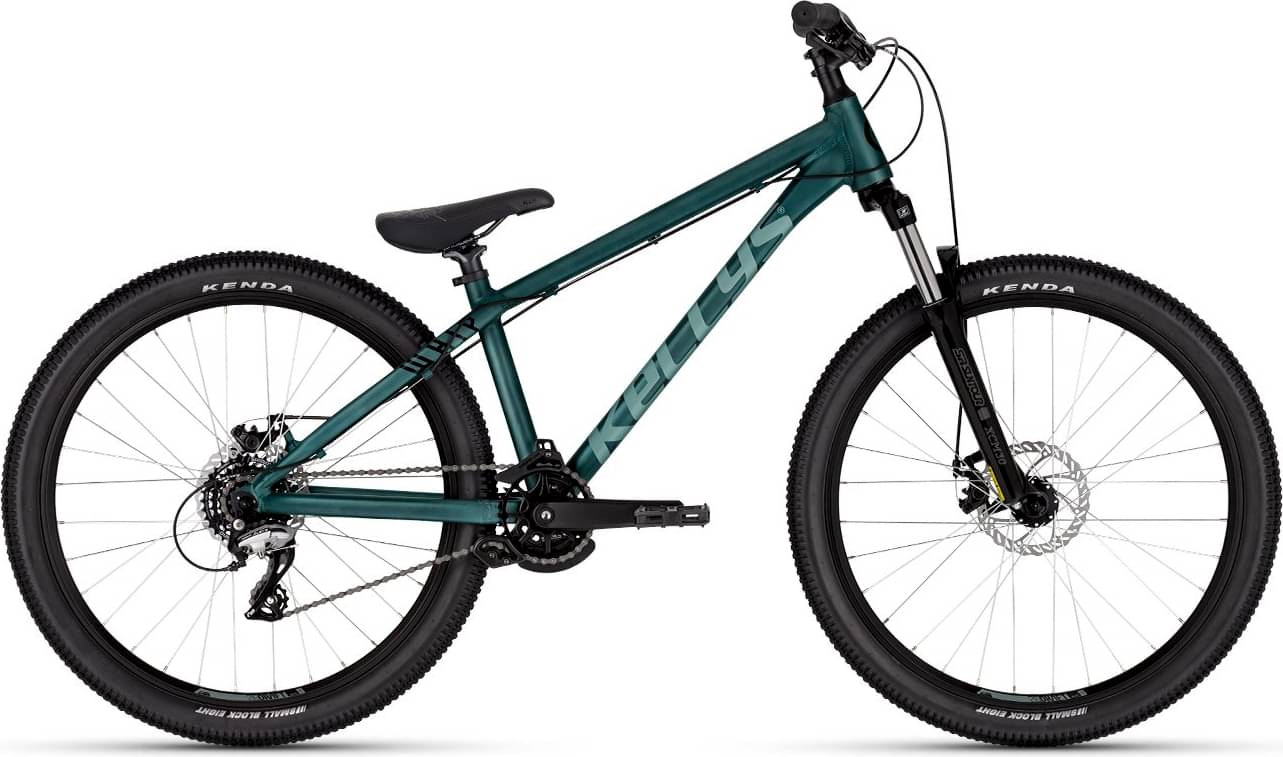

Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Acera -
Suspension Hardtail -
Drivetrain 1 × 7 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Dirt 26", tapered HT, ISCG 05
Suspension Fork
SR SUNTOUR XCM DS (26"), 100 mm, coil spring
Drivetrain
Rear Derailleur
SHIMANO Acera M3020-8 (direct mount)
Front Derailleur
chain guide MOZARTT Presto, ISCG 05
Shift Levers
SHIMANO SL-M315 Rapidfire Plus
Cassette
SHIMANO CS-HG200-7 (12-32T)
Crank
SAMOX (32T) - length 170 mm
Bottom Bracket
cartridge (126.5 mm)
Chain
KMC Z7 (104 links)
Pedals
plastic platform
Wheels
Front Hub
KT Disc (32 holes)
Rear Hub
KT Disc (32 holes)
Rims
KLS Draft Disc 559x21 (32 holes)
Spokes
steel
Tires
KENDA Small Block Eight 58-559 (26"x2.35)
Brakes
Brakes
Mechanical Disc
Brake Levers
APSE
Cockpit
Stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / length 40 mm
Handlebar
KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 38 mm / width 740 mm
Grips
kraton
Seat
Saddle
KLS Vader
Seatpost
KLS Active - diam 30.9 mm / length 300 mm (S - M)
Fit data

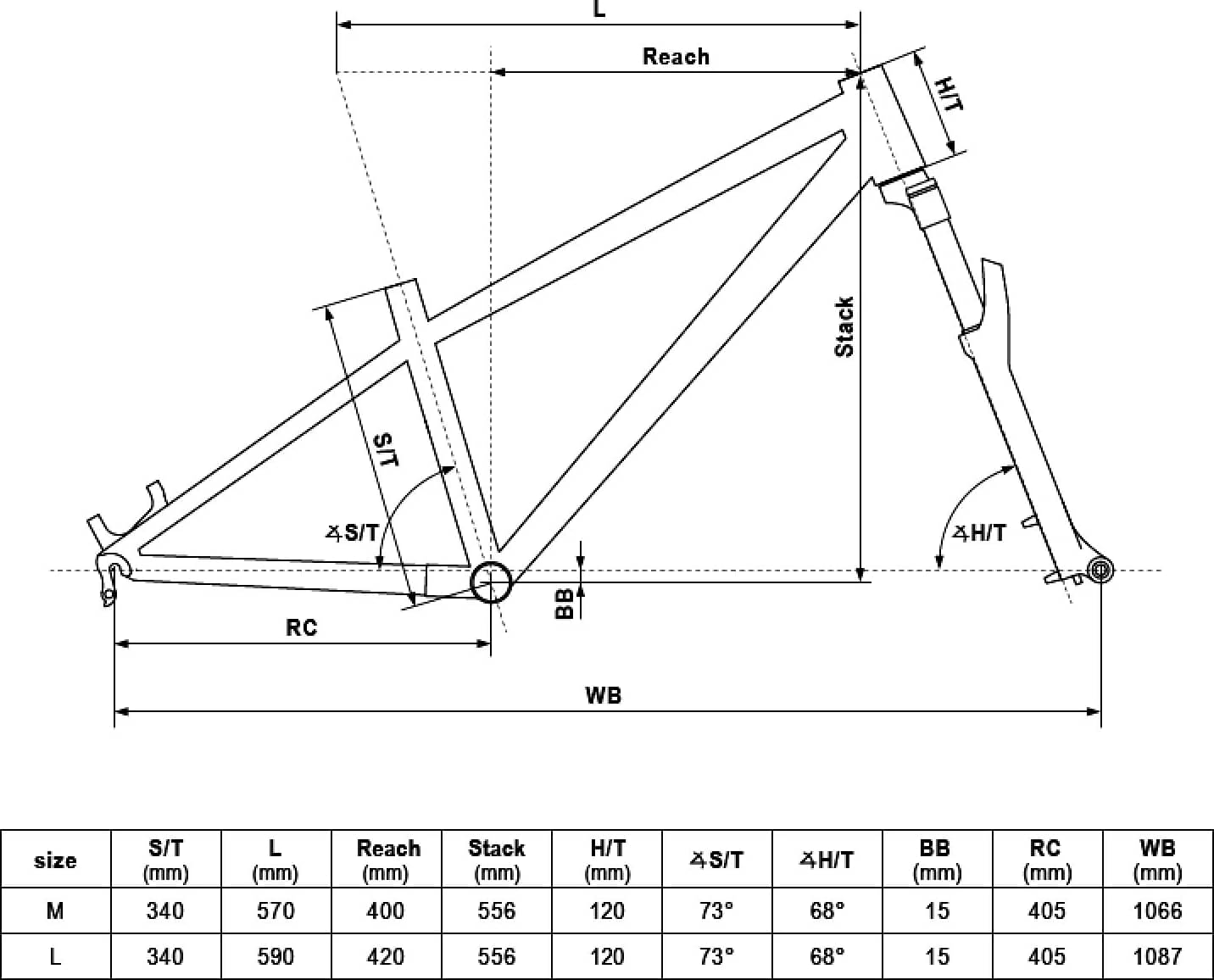

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 26" | 26" |
