Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork RST OMEGA
-
Suspension Hardtail -
Drivetrain Single Speed -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Dirt 26", tapered HT, single-speed
Suspension Fork
RST Omega T (26"), 100 mm, coil spring
Drivetrain
Cassette
single speed 15T
Crank
SAMOX (32T) - length 170 mm
Bottom Bracket
SAMOX cartridge
Chain
KMC Z1 (86 links)
Pedals
plastic platform
Wheels
Front Hub
KLS Firework / KT Disc single-speed (32 holes)
Rear Hub
KLS Firework / KT Disc single-speed (32 holes)
Rims
KLS Brave Disc 559x23 (32 holes)
Spokes
stainless steel black
Tires
SCHWALBE Billy Bonkers 54-559 (26"x2.10) K-Guard, Bronze Sidewall
Brakes
Brakes
Mechanical Disc
Brake Levers
TEKTRO
Cockpit
Stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / length 40 mm
Handlebar
KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 38 mm / width 740 mm
Grips
kraton
Seat
Saddle
VELO Pivotal
Seatpost
BMX Pivotal - diam 30.9 mm / length 200 mm
Fit data

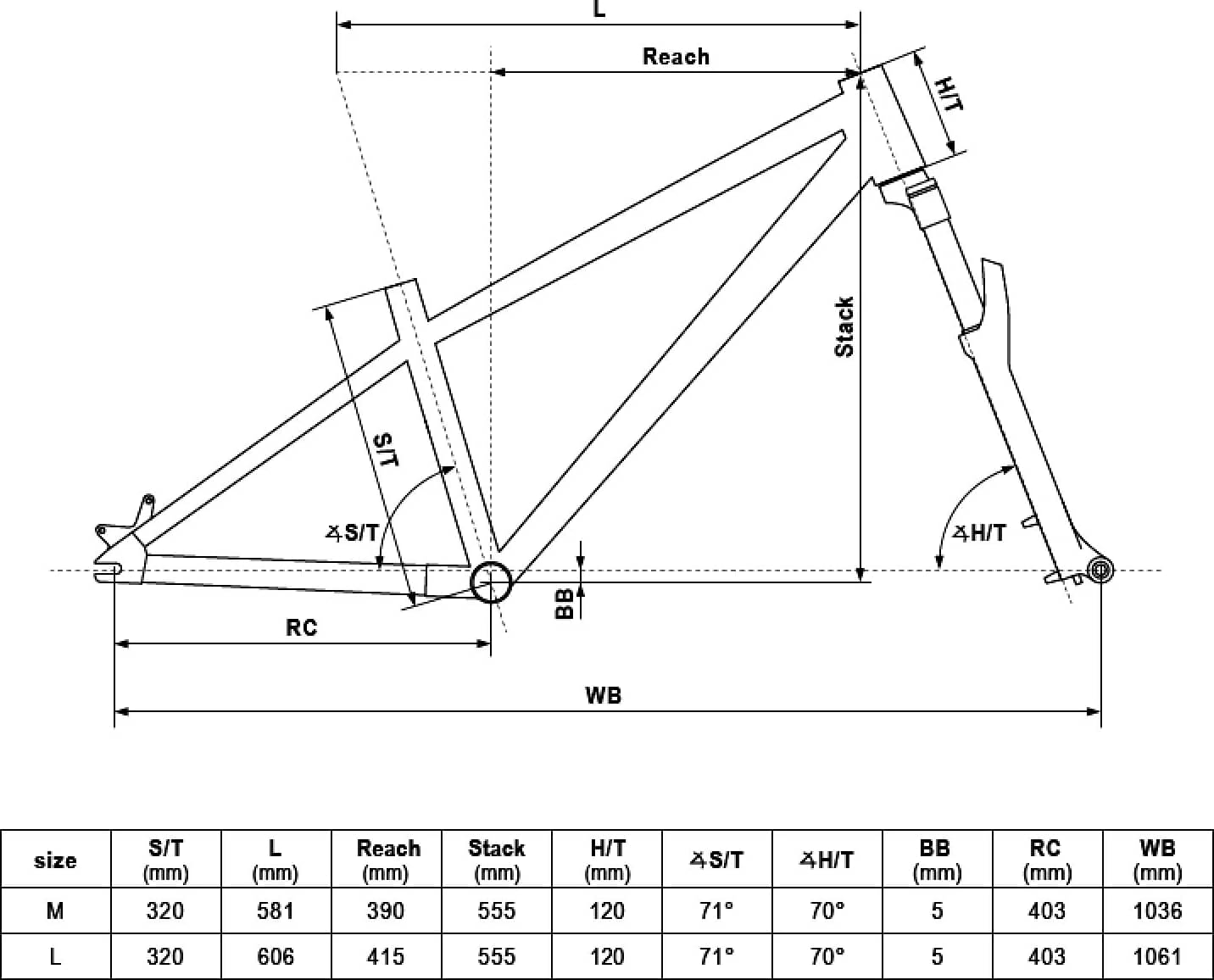

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 26" | 26" |
