Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork RST DIRT
-
Groupset X4, X5 -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Dirt DX 26", tapered HT, ISCG 05
Suspension Fork
RST Dirt T (26"), 100 mm, coil spring
Drivetrain
Rear Derailleur
SRAM X4
Front Derailleur
chain guide MOZARTT HXR, ISCG 05
Shift Levers
SRAM X5 9-Speed Trigger
Cassette
SHIMANO CS-HG200-9 (11-34T)
Crank
SANOX (32T) - length 170 mm
Bottom Bracket
SAMOX cartridge
Chain
KMC X9 (102 links)
Pedals
plastic platform
Wheels
Front Hub
KLS Firework Disc (32 holes)
Rear Hub
KLS Firework Disc (32 holes)
Rims
KLS Asesino 30 Disc 559x30 (32 holes)
Spokes
stainless steel black
Tires
SCHWALBE Billy Bonkers 54-559 (26"x2.10) K-Guard
Brakes
Brakes
SHIMANO MT200 hydraulic disc
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
KLS CNC - diam 28.6 mm / bar bore 35 mm / length 35 mm
Handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 760 mm
Grips
kraton
Seat
Saddle
KLS Vader
Seatpost
KLS - diam 30.9 mm / length 300 mm
Fit data

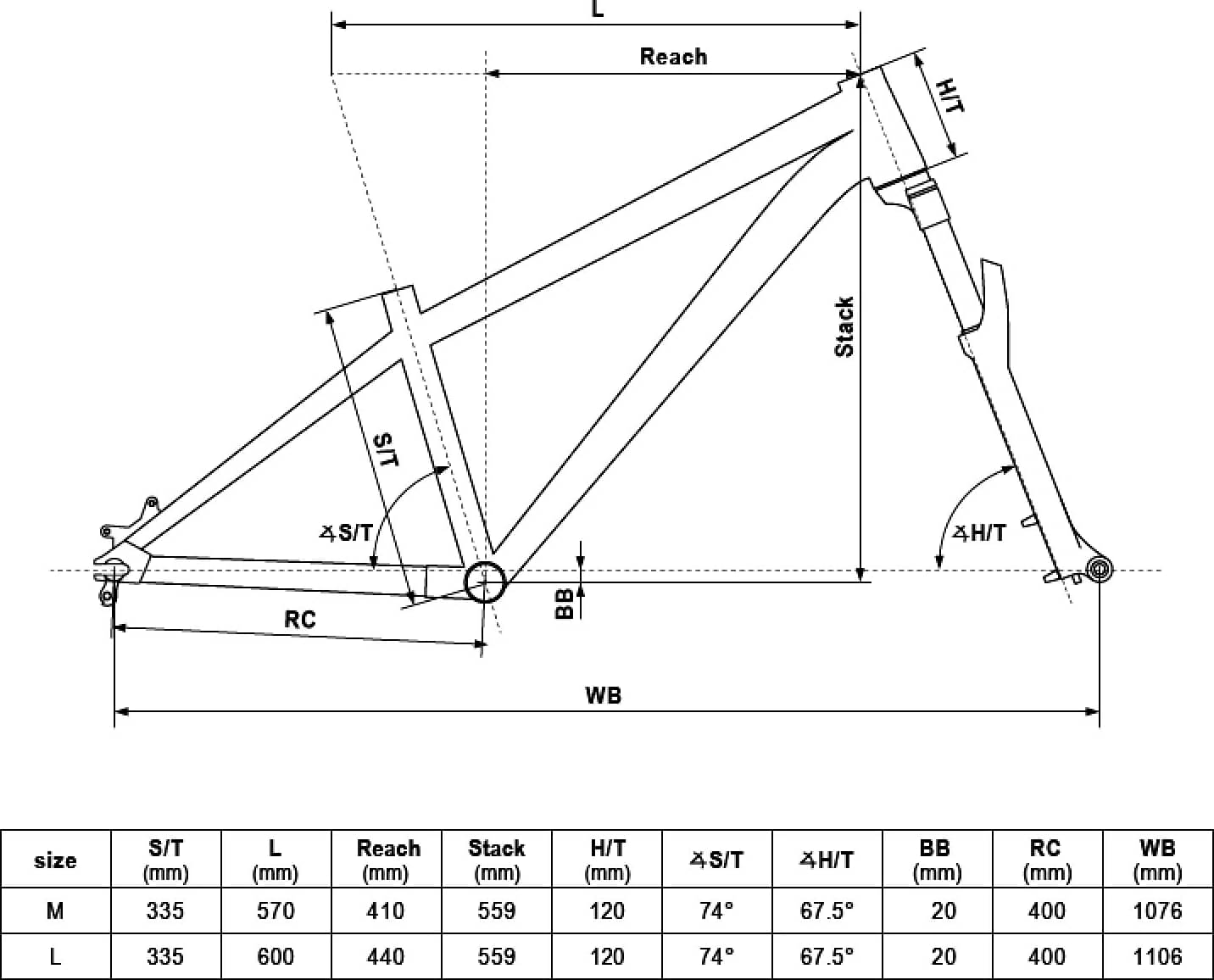

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 26" | 26" |
