Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork X-Fusion SLANT
-
Suspension Hardtail -
Drivetrain Single Speed -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Dirt 26", tapered HT, single-speed
Suspension Fork
X-FUSION Slant RC (26"), 100 mm, air / RC Damper / LockX 15 mm thru axle
Drivetrain
Cassette
single speed 15T
Crank
SAMOX (32T) - length 170 mm
Bottom Bracket
SAMOX cartridge
Chain
KMC Z1 (86 links)
Pedals
thermoplastic platform
Wheels
Front Hub
KT Disc (15x100 mm) / KT Disc single-speed (32 holes)
Rear Hub
KT Disc (15x100 mm) / KT Disc single-speed (32 holes)
Rims
KLS Brave Disc 559x23 (32 holes)
Spokes
stainless steel black
Tires
SCHWALBE Billy Bonkers 54-559 (26"x2.10) K-Guard, Bronze Sidewall
Brakes
Brakes
SHIMANO MT500 Hydraulic Disc rear
Brake Levers
SHIMANO BL-MT501
Cockpit
Stem
RACE FACE Chester 35 - diam 28.6 mm / bar bore 35 mm / 0° / length 40 mm
Handlebar
RACE FACE Chester RiseBar - diam 35 mm / rise 35 mm / width 780 mm
Grips
dirt
Seat
Saddle
VELO Pivotal
Seatpost
BMX Pivotal - diam 30.9 mm / length 200 mm
Fit data

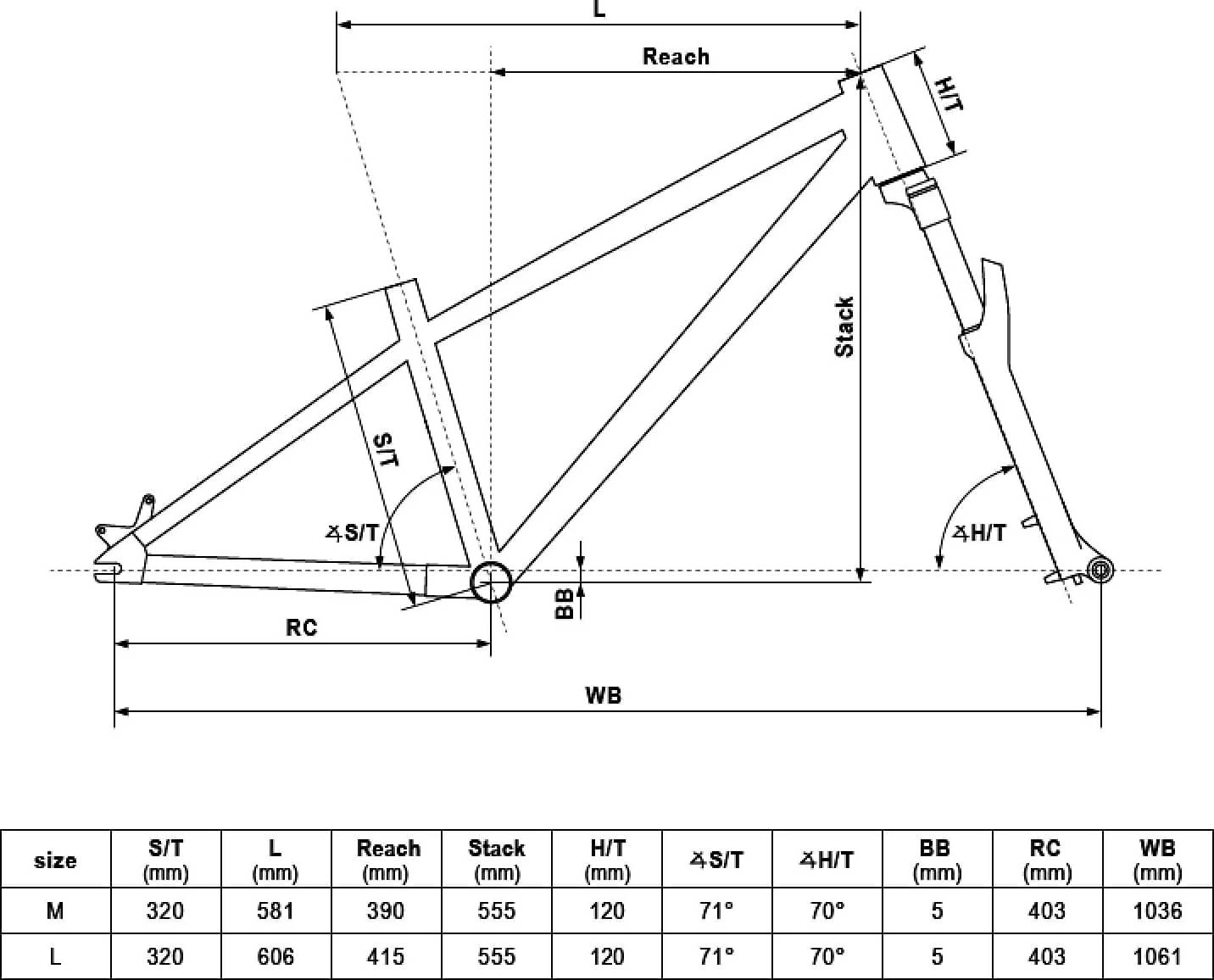

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 26" | 26" |
