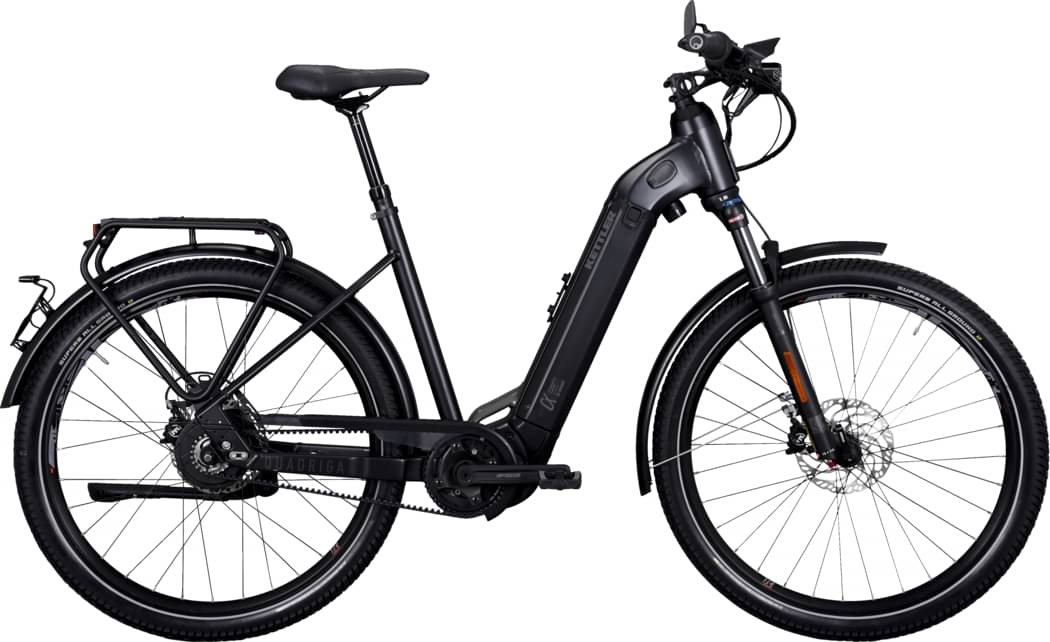

kettler QUADRIGA DUO CX SPEED 2023
2023 E-bike
Estimate price |
7,328$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset FSA -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery 2x Bosch PowerTube 500 -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Suspension Fork
SR SUNTOUR XCR34, Air
Drivetrain
Shift Levers
ENVIOLO CT -2200
Crank
FSA CK-320
Pedals
ZECURE VP-831P
Wheels
Front Hub
SHIMANO HB-MT400-B
Rear Hub
ENVIOLO TR
Rims
RODI TRYP35
Spokes
Spoke 2.0 blk
Tires
Supero Intercorsa
Brakes
Brakes
Hydraulic disc brake
Cockpit
Stem
Humpert ergotec Swell-XR
Handlebar
Humpert ergotec ERGO PLUS XL Lv6
Seat
Saddle
ZECURE L VL-3567
Seatpost
LIMOTEC A3Z suspension dropper post (140x34,9mm)
Motor & Battery
Motor
Bosch Performance Line Speed 45/85Nm
Battery
2x Bosch PowerTube 500
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
