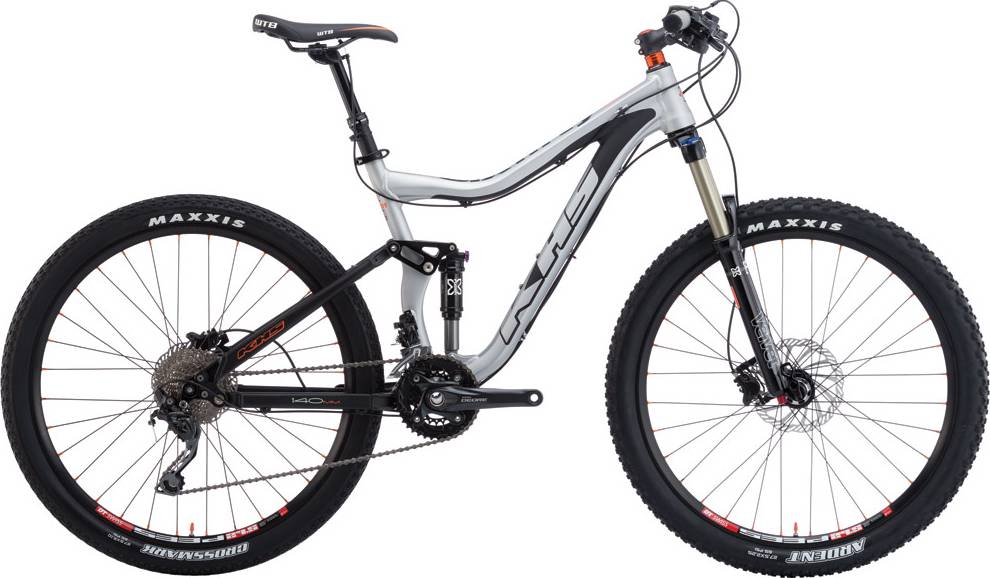

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork X Fusion
-
Groupset Deore -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
650B 140mm, Alloy 6061 w/Custom Formed Dbl.Butted TT & DT, 1.5 Taper, 12 x 142 rear axle, w/replaceable derailleur hanger
Suspension Fork
X-Fusion Velvet RL, 140mm, Alloy 1-1/8-1.5 Tapered Steerer, Hydraulic Dampening, Rebaound Adj, Hydraulic Lockout, 15mm
Rear Shock
X-Fusion 02RL, air w/hydraulic dampening, Rebound Adj & Lock Out
Drivetrain
Rear Derailleur
Shimano New Deore Shadow
Front Derailleur
Shimano New Deore
Shift Levers
Shimano New Deore
Cassette
Shimano Deore CS HG62-10, 11-36T, 10-speed
Crank
Shimano New Deore, 38/24T
Bottom Bracket
Shimano Outboard Bearing
Chain
KMC X10
Pedals
N/A
Wheels
Rims
DT #533D, 650B
Spokes
14G/15G Dbl Butted Black w/alloy nipples, 32X32
Tires
Maxxis Ardent 650B x 2.25 Ft, Crossmark 650B x 2.1 Rr, Folding
Brakes
Brakes
Shimano BR-M395, Hydraulic Disc, 180 mm Ft/160mm RR Rotors
Brake Levers
Shimano BR-M395
Cockpit
Stem
KHS Alloy 3D Forged S:80mm,M:90mm,L:100mm,XL:110mm
Handlebar
Alloy,31.8 700X15mm
Headset
FSA Orbit 1.5E Zero Stack, 1 1/8" x 1.5 Taper
Seat
Saddle
WTB Volt Sport
Seatpost
Kind Shock E-Ten w/Remote, Travel Adjust 31.6
About this model
5500 is part of the Khs 5500 model. KHS released 5 bikes variations of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2499$. If we compare this with the average Trail bike cost we notice that the price is 10.52% lower.
Overview of components
Fork
KHS 5500 2014 bike is equipped with the X Fusion fork, and has 140mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
5500 has an aluminum fork, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
The 5500 has a rear shock with a travel of 140mm. The model X-Fusion 02RL is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on 5500 are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The 5500 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
KHS 5500 2014 is available in one size only. In conclusion, double-check its size to make sure it’s a good fit for you.
Dropper post
A dropper post is included with the 5500. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
