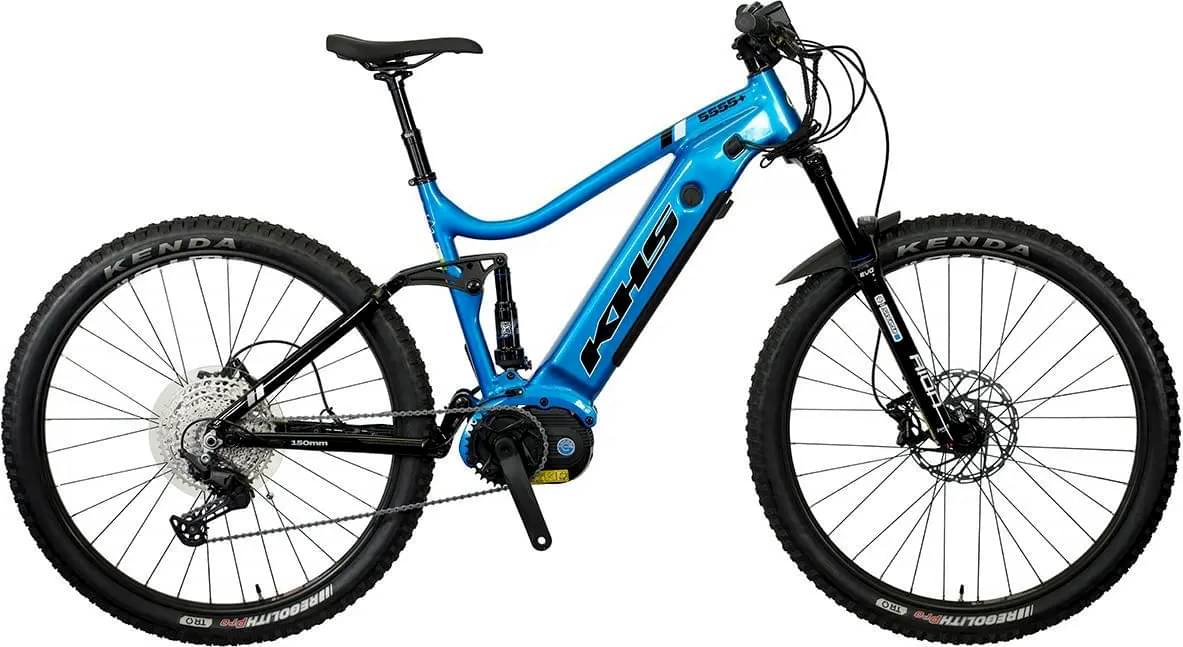

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 150mm -
Fork Suntour AION
-
Groupset Deore -
Suspension Full -
Motor 250W 80Nm mid-drive -
Battery Lithium 48V x 14Ah, 655wh -
Drivetrain 1 × 12 -
Brakes Tektro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-6061 Aluminum 4-Bar Horst Link 150mm w/Custom Formed T/T & D/T, 12 x 148mm Boost, 1.5 Taper
Suspension Fork
SR Aion 36 Boost 29 STD/27.5+, EQ Air, 150mm, 35mm Stanchions, Aluminum Steerer, Magnesium Lowers, Hydraulic Damp, External rebound, Lock-Out, 1.5 Taper, 15QR
Rear Shock
X-Fusion 02 Pro RL, Air, Ext Rebound, Lock-Out
Drivetrain
Rear Derailleur
Shimano Deore RD-M6100
Front Derailleur
n/a
Shift Levers
Shimano Deore, SL-M6100, 12-Speed, Trigger, Right Only
Cassette
Shimano CS-M6100, 10-51T
Crank
Samox Aluminum Forged, 34T, 165mm
Chain
Shimano CN-M6100
Pedals
n/a
Wheels
Front Hub
Shimano HB-MT410, CenterLock Disc, 15mm x 110mm, Boost
Rear Hub
Shimano FH-MT410-B Disc Cassette, 12 x 148mm, Boost
Rims
WTB Scraper i30 TCS Aluminum Plus Disc, 29, Double Wall, 32H, Tubeless-Ready
Spokes
14G Stainless Black, 32x32
Tires
Kenda Regolith Pro RFC, 29 x 2.6”, 120TPI Folding, Tubeless-Ready
Brakes
Brakes
Tektro HD-E725 Hydraulic, 4-Piston, 203mm Rotors
Brake Levers
Tektro HD-E725 Hydraulic w/Sensor
Cockpit
Stem
Aluminum 2D Forged, Threadless 4-bolt, M:35mm, L-XL:45mm
Handlebar
35mm 1 Riser, 80 x 30mm, 35mm
Grips
Q2 Lock-on
Headset
FSA Orbit 1.5E, Zero Stack, 1-1/8”~1.5
Seat
Saddle
WTB Volt Medium
Seatpost
Kind Shock Exa-Form KSP-900-i, Integra w/Remote, Travel Adjust 31.6mm, M: 395x125, L-XL:440x150
Motor & Battery
Motor
MPF 6S Mid Motor 36V x 250W, 80Nm, Class II, 34T
Battery
Lithium 48V x 14Ah, 655wh
