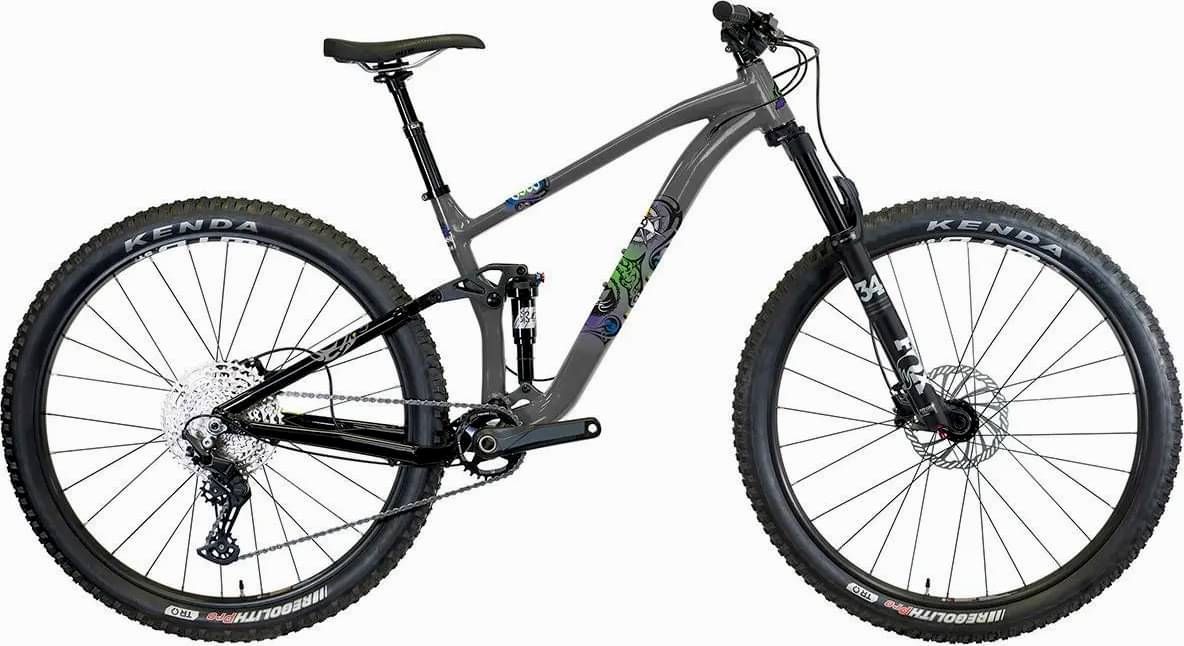

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Rhythm Float 34
-
Groupset SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
4-Bar Horst Link 29/650B+ 130mm, 6061 Aluminum w/Custom Formed Double Butted T/T & D/T, 1.5 Taper, 12 x 148 Rear Axle, w/Replaceable Derailleur Hanger, Internal Cable
Suspension Fork
FOX Float 34, 29 Evol Air, Rhythm, 140mm, Grip Sweep Adjust, Ext Rebound Adj., 1-1/8~1.5 Taper, 15mm x 110 QR Boost
Rear Shock
X-Fusion 02 Pro RL, Air, Ext Rebound, Lock-Out, 200x51mm
Drivetrain
Rear Derailleur
Shimano SLX RD-M7100
Front Derailleur
n/a
Shift Levers
Shimano SLX, SL-M7100, 12s, Trigger, Right Only, I-Spec EV
Cassette
Shimano CS-M6100, 10-51T, 12-Speed
Crank
FSA Comet, 2 pc., 30T Megatooth, Boost , Mega EXO, S;170, M-L:175
Bottom Bracket
FSA MegaEXO, Outboard Bearing
Chain
Shimano CN-M6100
Pedals
n/a
Wheels
Front Hub
Shimano Deore HB-MT410, Center Lock Disc, 15mm x 110mm, Boost
Rear Hub
Shimano Deore FH-MT410-B Disc Cassette, 12 x 148mm, Boost
Rims
WTB ST=S:i35, M-L:i29 TCS, Disc, Double Wall, 32H, Tubeless Ready
Spokes
14/15G Double Butted Stainless, Black w/Aluminum Nipples, 28x28
Tires
Kenda Regolith Pro, S:27.5x2.6, M-L:29x2.4FT, 120 TPI Folding, Tubeless-Ready
Brakes
Brakes
Shimano MT420 4-Piston Hydraulic Disc, 203/180mm RT64 CenterLock Rotors
Brake Levers
Shimano M4100, I-Spec EV
Cockpit
Stem
FSA Grid 3D Forged, 35mm x 50mm
Handlebar
FSA Grid 35mm, 800mm x 20mm
Grips
Q2 Lock-on
Headset
FSA Orbit 1.5E, Zero Stack, 1 1/8”~1.5
Seat
Saddle
WTB Volt Medium SL
Seatpost
Kind Shock Exa-Form KSP-900-i, Integra w/Remote, Travel Adjust, 31.6mm, S: 100x345, M-L: 125x395
