Bike details
Overview
Key information split into simple groups.

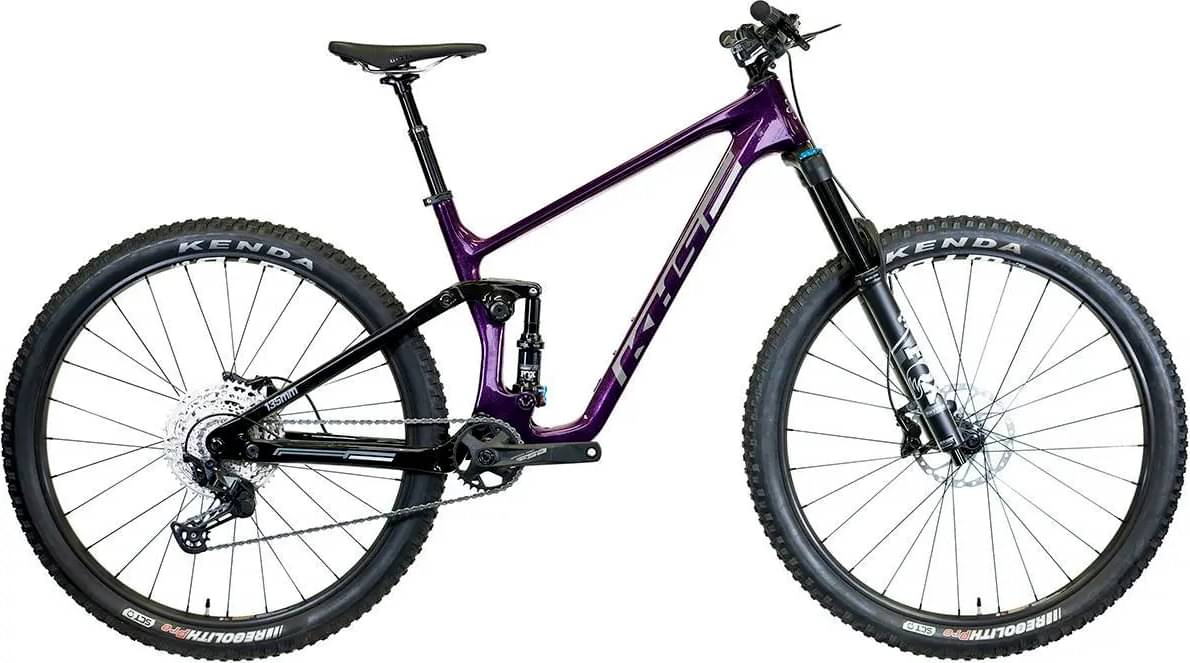

Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Fork Fox Rhythm Float 36
-
Groupset SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MSD Full Carbon 4-Bar Horst Link, 29/650B+, 135mm, 1.5 Taper, 12 x 148 Boost Rear Axle, w/Replaceable Derailleur Hanger
Suspension Fork
FOX Float 36, 29 Std/27.5+ Evol Air, Rhythm, 150mm, Grip Sweep Adjust, 1-1/8~1.5 Taper, 15mm x 110 QR Boost
Rear Shock
FOX Float DPS, Trunnion Performance, 3-Pos, Evol w/LV Eyelet, 185x55
Drivetrain
Rear Derailleur
Shimano SLX, RD-M7100
Front Derailleur
n/a
Shift Levers
Shimano SLX, SL-M7100, 12s, Trigger, Right Only, I-Spec EV
Cassette
Shimano CS-M6100, 10-51T, 12-Speed
Crank
FSA Comet, 2-pc., 30T Megatooth, Boost, S:170, M-XL:175
Bottom Bracket
FSA MegaExo Outboard Cartridge Bearing
Chain
Shimano CN-M6100
Pedals
n/a
Wheels
Front Hub
Shimano HB-MT410, CenterLock Disc, 15mm x 110mm, Boost
Rear Hub
Shimano FH-MT410-B Disc Cassette, 12 x 148mm, Boost
Rims
WTB ST=S:i35, M-XL:i29 TCS, Disc, Double Wall, 28H, Tubeless-Ready
Spokes
14/15G Double Butted Stainless, Black w/Aluminum Nipples, 28x28
Tires
Kenda Regolith Pro, S:27.5 x 2.6”, M-XL:29 x 2.4”, 120TPI, Folding, Tubeless-Ready
Brakes
Brakes
Shimano MT420 4-Piston Hydraulic Disc, 203/180mm RT64 CenterLock Rotors
Brake Levers
Shimano MT420 4-Piston Hydraulic Disc, 203/180mm, RT64 CenterLock Rotors
Cockpit
Stem
FSA Grid 3D Forged, 35mm x 50mm
Handlebar
FSA Grid 35mm, 800mm x 20mm
Grips
Q2 Lock-on
Headset
FSA No. 57/52, Zero Stack, 1-1/8”~1.5
Seat
Saddle
WTB High Tail, CrMo Rail
Seatpost
Kind Shock Exa-Form KSP-900-i, Integra w/Remote, Travel Adjust, 30.9mm, S: 100x345, M-XL: 125x395
