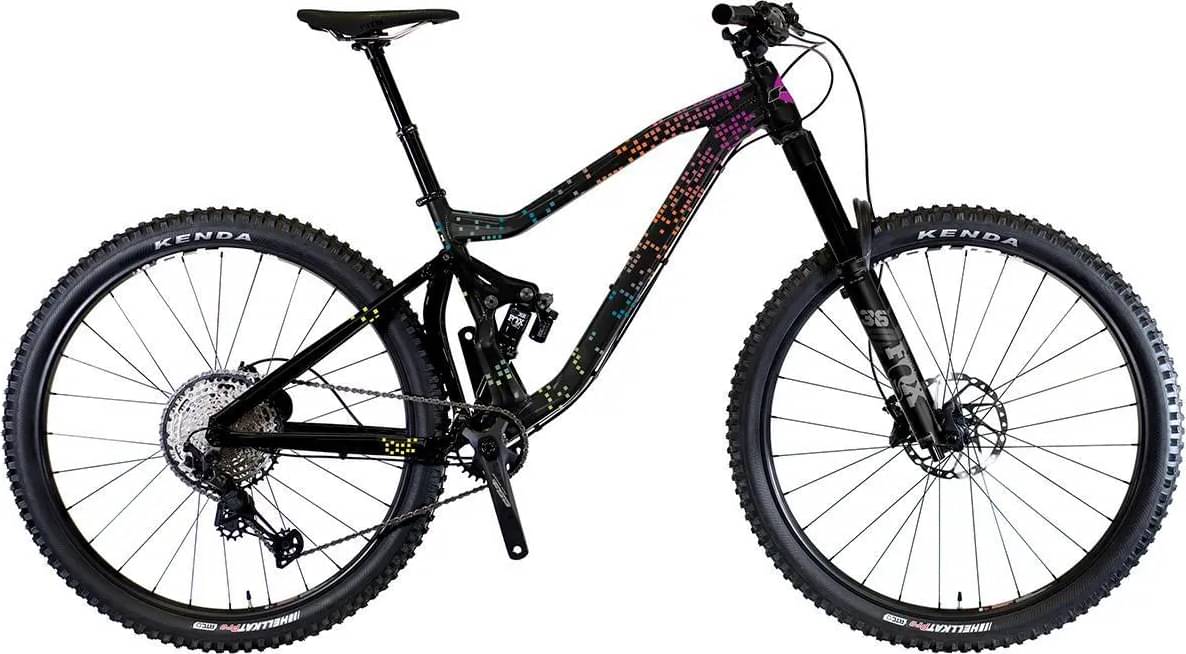

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Float 36
-
Groupset SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FSS 29/650B+ 150mm, 6061 Aluminum w/Custom Formed Double Butted T/T & D/T, 1.5 Taper, 12x148mm Boost Rear Axle, w/Replaceable Derailleur Hanger, 29x2.4
Suspension Fork
FOX Float 36, 29 Evol Air, Performance, 160mm, Grip w/3-Pos. Lever., Ext Rebound Adj., 1-1/8~1.5 Taper, 15mm x 110 QR Boost, 29 x 2.6 Compatible
Rear Shock
FOX Float DPX2 Trunnion, Performance, 3-Pos, Evol w/LV Eyelet 205x65
Drivetrain
Rear Derailleur
Shimano CN-M7100
Front Derailleur
n/a
Shift Levers
Shimano New SLX, SL-M7100, 12s, Trigger, Right Only, I-Spec EV
Cassette
Shimano CS-M7100, 10-51T, 12-Speed
Crank
SA Comet, 2-pc., 30T Megatooth, Boost, Mega EXO, S:170, M-XL:175
Bottom Bracket
FSA Mega EXO, Outboard Bearing
Chain
Shimano CN-M6100
Pedals
n/a
Wheels
Front Hub
Shimano HB-M7110-B CenterLock Disc, 15x110mm Axle, Boost
Rear Hub
Shimano FH-M7110-B Disc Cassette, 12 x 148mm, Boost
Rims
WTB ST=S:i35, M-XL:i29 TCS, Disc, Double Wall, 28H, Tubeless-Ready
Spokes
14/15G Double Butted Stainless, Black w/Aluminum Nipples, 28x28
Tires
Kenda Hellkat, S:27.5x2.6, M-XL:29x2.4, ATC, 120 TPI Folding, Tubeless-Ready
Brakes
Brakes
Shimano M6120 4-Piston, Hydraulic Disc, Servo Wave, 203/180mm, RT64 CenterLock Rotors
Brake Levers
Shimano M6100, Servo Wave, I-Spec EV
Cockpit
Stem
FSA Grid 3D Forged, 35mm
Handlebar
FSA Grid 35mm, 800mm x 20mm
Grips
Q2 Lock-on
Headset
FSA Orbit 1.5E, Zero Stack, 1-1/8”~1.5
Seat
Saddle
WTB High Tail, CrMo Rail
Seatpost
Kind Shock Rage-I, Integra w/Remote, Travel Adjust, 31.6mm S:110x345, M-XL: 125x395
