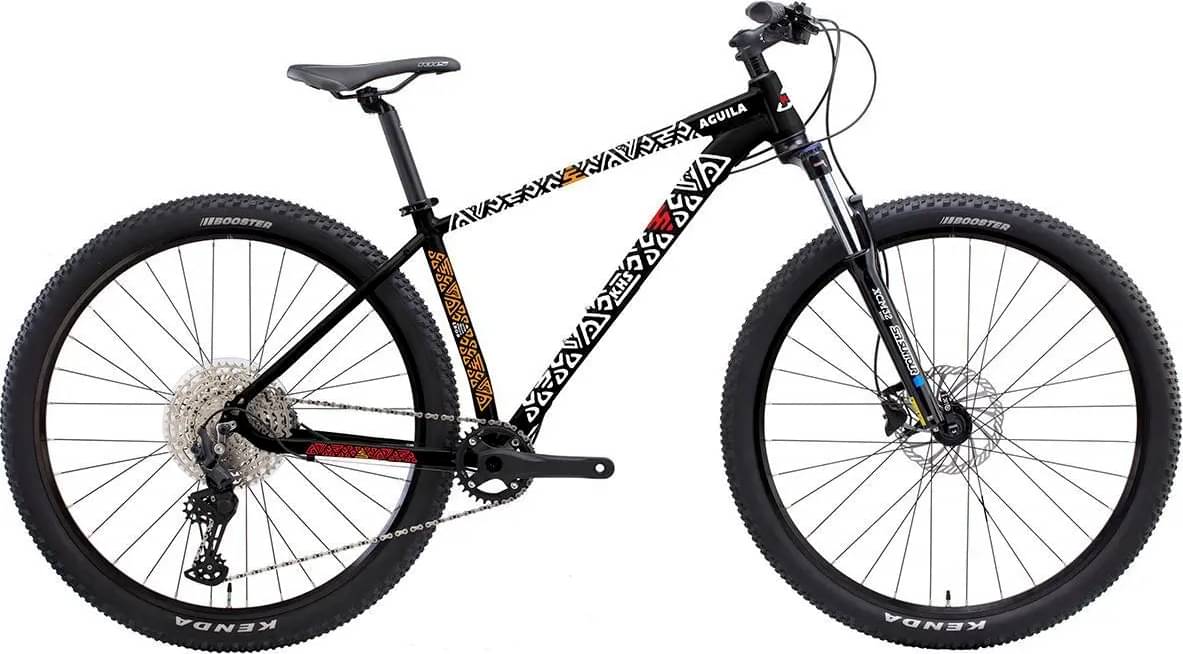

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum w/Custom Formed T/T & D/T, 141mm Boost, w/Replaceable Derailleur Hanger, 1.5 Taper, 29”/27.5 Plus Compatible, Internal Cables
Suspension Fork
SR XCM 32-LO, 100mm, w/Hydraulic Lock-Out, 1-1/8~ 1.5 Taper, 15QR x 110 Boost, 29 Std/27.5 Plus
Drivetrain
Rear Derailleur
Shimano Deore RD-M5100
Front Derailleur
n/a
Shift Levers
Shimano Deore SL-M5100
Cassette
Shimano CS-M5100, 11-51T,11-Speed
Crank
Samox Forged, Boost, 30T Narrow/Wide, S:170, M-XL:175, Ladies:170
Bottom Bracket
Cartridge Bearing
Chain
KMC X11 w/MissingLink
Pedals
n/a
Wheels
Front Hub
T Aluminum Disc w/CNC Rotor Flange, QR, 15mm x 110mm
Rear Hub
KT Aluminum Disc w/CNC Rotor Flange, QR, Cassette, 141mm Boost
Rims
S: Aluminum Plus Disc, 27.5x32H, Double Wall, M-XL: Aluminum Disc Double Wall, 29x32H
Spokes
14G Stainless Black 32x32
Tires
S: Kenda Havok 27.5x2.6, M-XL: Kenda Booster, 29x2.4
Brakes
Brakes
Shimano MT200 Hydraulic Disc, 180/160mm Rotors Wave ‘12’
Brake Levers
Shimano MT200
Cockpit
Stem
Aluminum Threadless 4-bolt, 6-degree, 31.8mm, S:60mm, M-L:75mm, XL:90mm
Handlebar
Aluminum Riser, 31.8mm, 720x20mm, Ladies: 680x20mm
Grips
Q2 Lock-on
Headset
Threadless 1-1/8”~1.5, Zero Stack
Seat
Saddle
KHS Sport, Dual Density
Seatpost
KHS Aluminum Micro-Adjust 31.6mmx350
