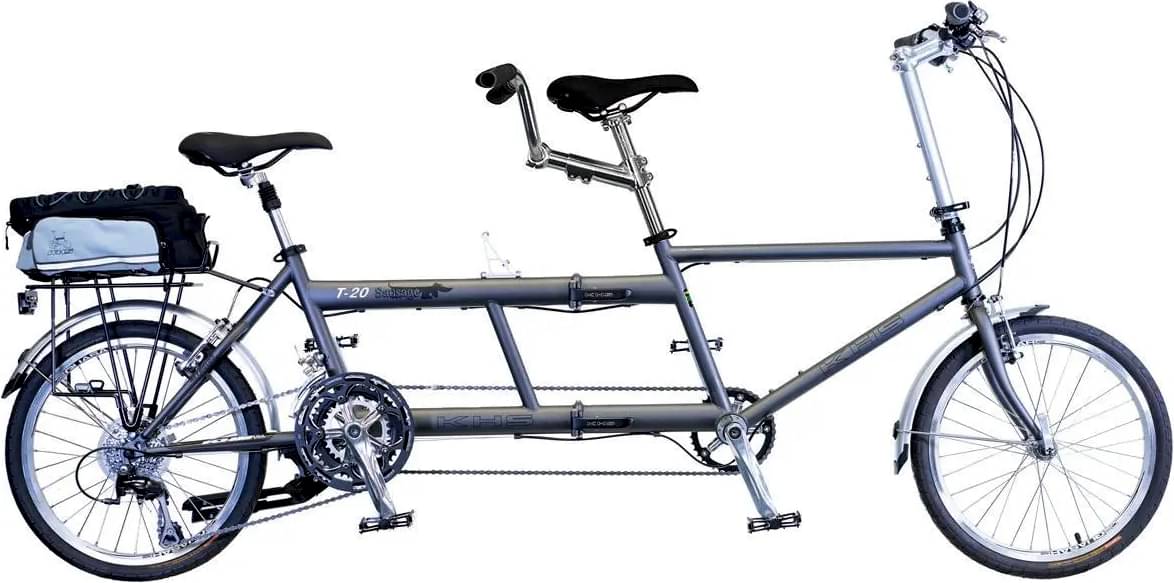

KHS AMERICANO 2025
2025 Urban
Estimate price |
2,199$
Weight | 22.18 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset Sora -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Tektro Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Folding, Reynolds CrMo Tubing w/Carrier Bosses
Suspension Fork
Full CrMo Unicrown, w/Fender Bosses
Drivetrain
Rear Derailleur
Shimano Sora
Front Derailleur
MicroShift FD-R539, Braze-On
Shift Levers
Shimano Sora Trigger
Cassette
SRAM PG-950, 11-28T, 9-Speed
Crank
Driveline 3-pc Aluminum Forged Tandem; Stoker: 52/42/30T + 39T, 170mm; Captain: 39T, 175mm
Bottom Bracket
ISIS Cartridge Bearing
Chain
KMC Z9
Pedals
VP VPE-527 Aluminum Platform w/DU Bearing
Wheels
Front Hub
Formula Aluminum QR
Rear Hub
Formula Aluminum QR, Cassette
Rims
Weinmann SP-17, 20”x32H, Double Wall w/CNC Side Wall
Spokes
14G Stainless, 32x32
Tires
Kenda Kwest, 20x1.5” w/Anti Puncture, 100PSI
Brakes
Brakes
Tektro Linear Pull
Brake Levers
Tektro BL-39B Linear Pull with Bell
Cockpit
Stem
Captain: Threadless 3D Forged, 10D, 25.4mm, Stoker: Aluminum, 35 Degree Adjustable
Handlebar
Aluminum Riser, F: 580x30mm, R: 565x100mm
Grips
Velo Ergo Triple Density
Headset
Aluminum Threaded 1-1/8”
Seat
Saddle
KHS Sport
Seatpost
Aluminum 2-bolt FT: 29.2x400mm, Aluminum Suspension, RR: 27.2x400mm
