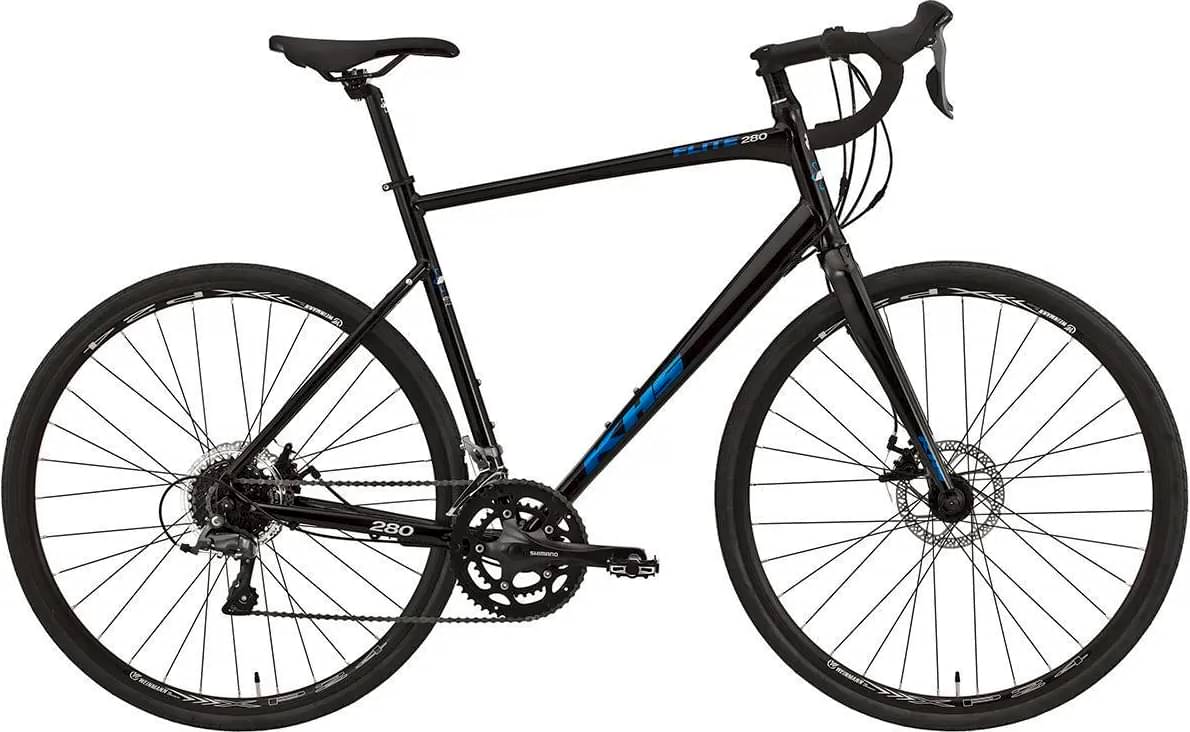

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Tektro Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Disc Design, 6061 Aluminum w/Custom Formed Double Butted T/T & D/T, Internal Cable, Flat Mount Disc, Replaceable Derailleur Hanger
Suspension Fork
Carbon w/Aluminum Steerer, Flat Mount Disc, Straight Blades
Drivetrain
Rear Derailleur
Shimano Claris RD-R2000-SS
Front Derailleur
Shimano Claris FD-R2000, 31.8mm
Shift Levers
Shimano Claris STI, ST-R2000
Cassette
Shimano HG200-8 12/32 8-Speed
Crank
Shimano Alloy, 50/34, XS:165, S-M:170, L-XL-175
Bottom Bracket
FSA Cartridge Bearing
Chain
KMC Z8.3 w/MissingLink
Pedals
Full Aluminum w/DU Bearing
Wheels
Front Hub
KK Aluminum Disc, QR
Rear Hub
KK Aluminum Disc QR, Cassette
Rims
Weinmann XP-24 Aluminum Double Wall
Spokes
14G Stainless Black, 32x32
Tires
Kenda K-193 Kwest Road, 700x28C
Brakes
Brakes
Tektro MD-C550 Dual Piston, Flat Mount Road Cable Disc Brake w/160mm Rotors
Brake Levers
Shimano Claris ST-R2000
Cockpit
Stem
Aluminum 3D Forged, Threadless 4-bolt, 7-degree, 31.8, XS:90mm, S-L:100mm, XL:110mm
Handlebar
FSA Omega Compact Bend, 31.8, XS-S:40cm, M:42cm, L-XL:44cm
Headset
FSA Integrated Cartridge Bearing
Seat
Saddle
DDK Road Padded
Seatpost
KHS Aluminum Micro-Adjust, 27.2x350mm
