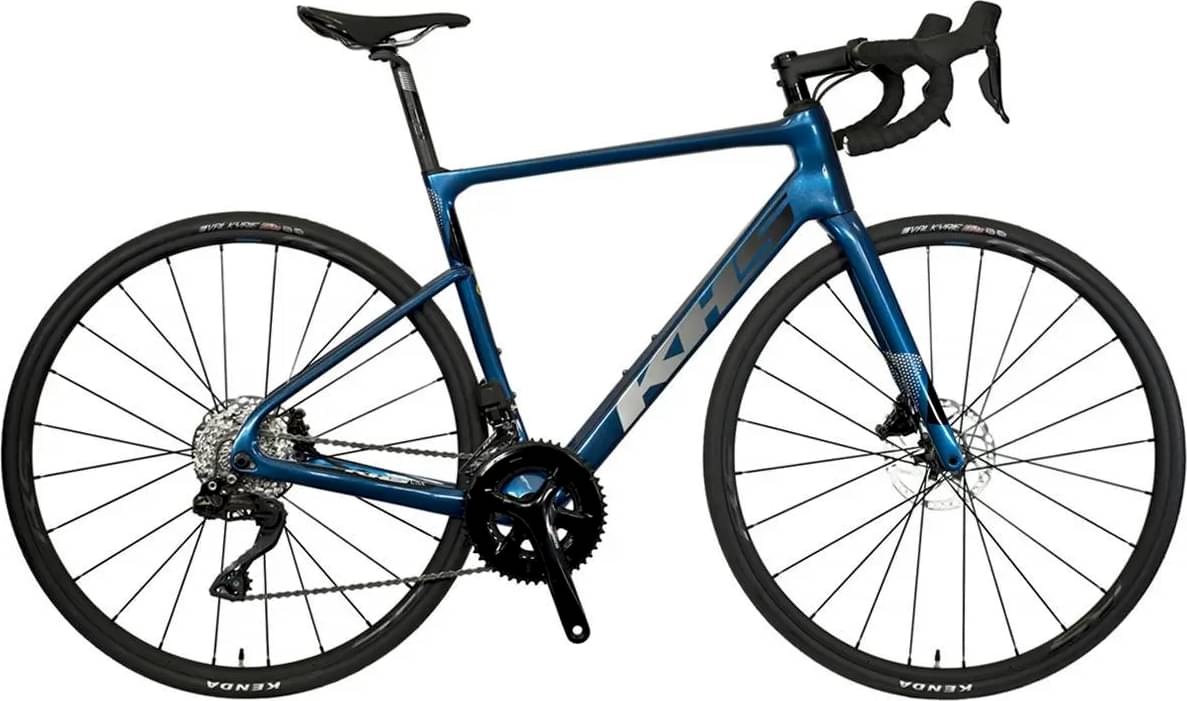

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano 105 Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KHS Disc, Full MSD Carbon Monocoque w/Replaceable Derailleur Hanger, 1-1/8-1.5 Taper, Flat Mount Disc, 12 x 142mm Thru-Axle
Suspension Fork
KHS Performance Disc, Full Carbon, 1.5 Taper, Flat Mount w/12mm Thru-Axle
Drivetrain
Rear Derailleur
Shimano 105 DI2, RD-R7150
Front Derailleur
Shimano 105 DI2 FD-R7150
Shift Levers
Shimano 105 DI2, ST-R7170, Hydraulic
Cassette
Shimano CS-HG710, 11/36 12-Speed
Crank
Shimano FC-RS520, 50/34T Compact, XS:165, S:170, M-ML:172.5, L-XL:175
Bottom Bracket
Shimano Outboard Bearing
Chain
Shimao 12-Speed, CN-M7100
Pedals
n/a
Wheels
Front Hub
Shimano RS-370 Disc Wheelset, 12 x 100mm
Rear Hub
Shimano RS-370 Disc Wheelset, 12 x 142mm,
Rims
Shimano RS-370 Disc Wheelset, 12mm Front & Rear, Tubeless Ready
Spokes
Shimano RS-370 Disc Wheelset
Tires
Kenda Valkyrie, 700x28C, 60TPI, Folding, RC3
Brakes
Brakes
Shimano 105, BR-R7170 Hydraulic Disc, Flat Mount w/160mm Center-Lock Rotors
Brake Levers
Shimano 105 DI2, ST-R7170, Hydraulic
Cockpit
Stem
Aluminum 3D Forged, Threadless 4 Bolt, 31.8mm, XS-S:90mm, M-ML:100mm, L-XL:110mm
Handlebar
FSA Vero Compact, 31.8mm, XS-S:40cm, M-ML:42cm, L-XL:44cm
Headset
FSA Integrated Sealed ACB #69 SRS, 1-1/8”~1.5”
Seat
Saddle
KHS Team Road Cut Out
Seatpost
Q2 Carbon 27.2x350mm
