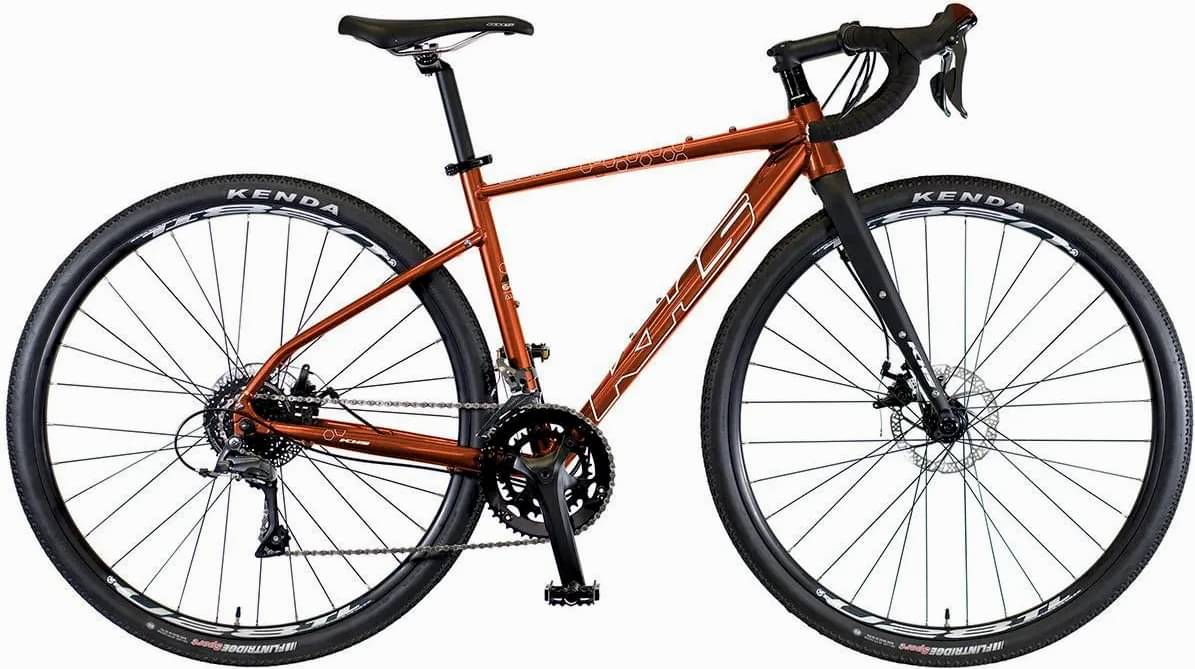

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Tektro Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum Double Butted w/Disc Mounts and Internal Cable Routing, 1.5 Taper, Flat Mount Disc
Suspension Fork
Carbon Disc w/Aluminum Steerer, 1.5 Taper, Flat Mount, 12mm Thru-axle
Drivetrain
Rear Derailleur
Shimano Claris RD-R2000GS
Front Derailleur
Shimano Claris FD-R2000, 31.8mm
Shift Levers
Shimano Claris STI, ST-R2000
Cassette
Shimano CS-HG31, 11-34T, 8-Speed
Crank
Aluminum Forged 3-pc., 48/32T Compact, XS:165, S:170, M-L:172.5
Bottom Bracket
FSA Cartridge Bearing
Chain
KMC Z8.3
Pedals
Wellgo Full Aluminum w/DU Bearing
Wheels
Front Hub
Formula Aluminum Disc, 12mm QR Thru-axle
Rear Hub
Formula Aluminum Disc QR, Cassette
Rims
Weinmann U28 TL, Disc Double Wall, Tubeless-Ready
Spokes
14G Stainless Black, 32x32
Tires
Kenda K1152 Flintridge, 700 x 40c, 60TPI, Tubeless-Ready
Brakes
Brakes
Tektro MD-C550, Dual Piston, Flat Mount, Road Mechanical Disc, 160mm Rotors
Brake Levers
Shimano Claris STI
Cockpit
Stem
Promax Aluminum 3D Forged, Threadless 4-bolt, 31.8mm, XS:90mm, S-L:100mm
Handlebar
Promax Aluminum Drop, Adventure Compact Bend, 31.8mm, XS:40cm, S-M:42cm, L:44cm
Headset
FSA Orbit Integrated Sealed ACB, 1-1/8”~1.5”
Seat
Saddle
KHS Sport Road
Seatpost
Aluminum Micro-Adjust, 27.2x350mm
