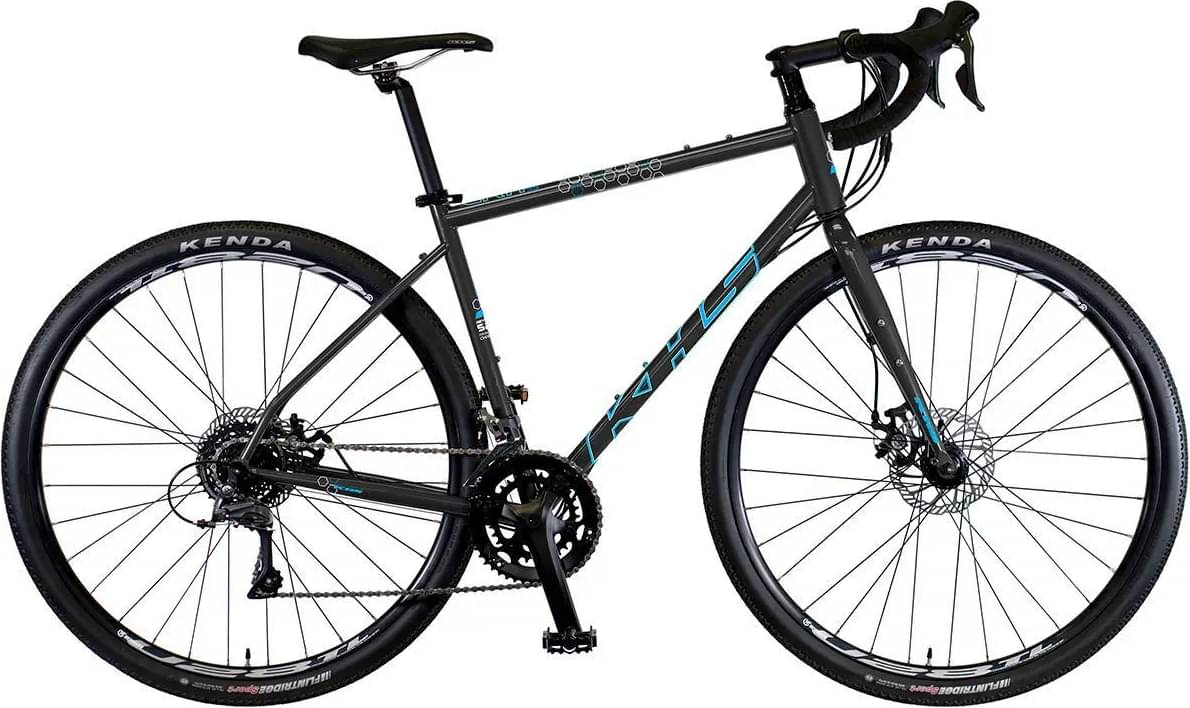

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Reynolds 520 DB CrMo Tubing w/Carrier Bosses & Disc Mount
Suspension Fork
Full CrMo Unicrown, Low-rider and Fender Bosses w/Disc, Straight Blade
Drivetrain
Rear Derailleur
Shimano Claris RD-R2000-GS
Front Derailleur
Shimano Claris FD-R2000, 28.6mm
Shift Levers
Shimano Claris STI, ST-R2000
Cassette
Shimano HG318, 11-34T, 8-Speed
Crank
Aluminum Forged 3pc. 48x32 Compact, XXS:160, XS:165, S:170, M-L:172.5
Bottom Bracket
FSA Cartridge Bearing
Chain
KMC Z8.3
Pedals
Wellgo Full Aluminum w/DU Bearing
Wheels
Front Hub
KK Aluminum Disc, QR w/Rubber Seal
Rear Hub
KK Aluminum Disc, QR w/Rubber Seal, Cassette
Rims
Weinmann U28 TL, Disc Double Wall, Tubeless Ready
Spokes
14G Stainless Black, 32x32
Tires
Kenda K1152 Flintridge, 700x40C, 60TPI
Brakes
Brakes
Bengal MB700T Cable Disc, 160/160, Wave 12
Brake Levers
Shimano Claris STI
Cockpit
Stem
Promax Aluminum 3D Forged, Threadless 4 Bolt, 31.8, XXS:80mm, XS:90mm, S-L:100mm
Handlebar
Promax Aluminum Drop, Adventure Compact Bend, 31.8mm, XS:40cm, S-M:42cm, L:44cm
Headset
FSA Threadless 1-1/8, Zero Stack
Seat
Saddle
KHS Sport Road
Seatpost
Aluminum Micro-Adjust, 27.2x350mm
