Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminum -
Wheels 26" -
Groupset Altus, Shimano -
Suspension Rigid -
Motor Bafang 500W 45Nm hub-drive -
Battery Lithium 48V x 10.5Ah, 504Wh -
Drivetrain 1 × 8 -
Brakes Drum
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum w/Custom Formed T/T & D/T w/Replaceable Derailleur Hanger, Internal Cable Routing
Suspension Fork
Aluminum Straight Leg w/CrMo Steerer, Disc Mount
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Altus RD-M310
Front Derailleur
n/a
Shift Levers
Shimano SL-M315 Trigger
Cassette
Shimano CS-HG31-8, 11-34T, 8-Speed
Crank
Samox Forged, 36T w/Guard, 170mm
Chain
KMC E8S
Pedals
Wellgo Platform w/Non-slip Tread, DU Bearings
Wheels
Front Hub
Aluminum Disc w/CNC Rotor Flange, QR
Rear Hub
Bafang, Drum Motor
Rims
Alex EV-23 Aluminum Double Wall, 26x36H
Spokes
14G Black, 36x36
Tires
Kenda Khan, 26 x 2.35” w/Anti-Puncture
Brakes
Brakes
Radius Cable Disc BR-CX7, 160mm Rotors w/ABS System Click for more information about BrakeSafe
Brake Levers
Bengal Aluminum Linear Pull Trekking 3 Finger w/Sensor Control
Cockpit
Stem
Aluminum Threadless, 17 Degree
Handlebar
Aluminum, 100mm rise, 660mm
Grips
Comfort Kraton
Headset
Threadless 1-1/8", Zero Stack w/Aluminum Conical Top Cap
Seat
Saddle
DDK Wide Comfort, Memory Foam w/Elastomer Spring
Seatpost
Aluminum Suspension
Motor & Battery
Motor
Bafang RMG020-500DC, 48V x 500W, 45Nm, Class II
Battery
Lithium 48V x 10.5Ah, 504Wh
Model Overview

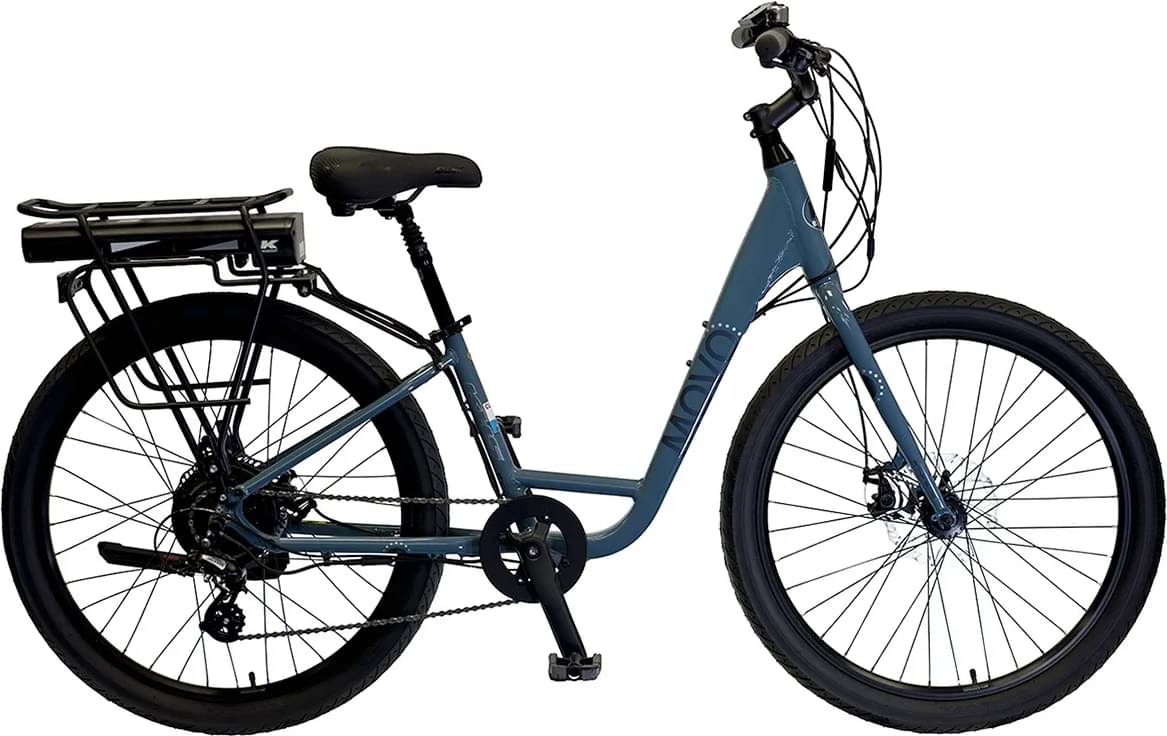

MOVO 1.0E is part of the Khs E Movo model. KHS launched 3 e-bikes of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When KHS released this model in 2022, its price was 2199$. Doing a quick comparison, we notice that MOVO 1.0E price is 16.83% lower than the average cost of a Commuter e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The wheels on MOVO 1.0E are the 26″ aluminum type. These wheels give you great handling over your e-bike. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Nothing is more important on a bike than its ability to brake properly. KHS MOVO 1.0E is equipped with Drum brakes.
Sizes
KHS MOVO 1.0E 2022 is available in one size only. In conclusion, make sure it fits you, or look for another model.
