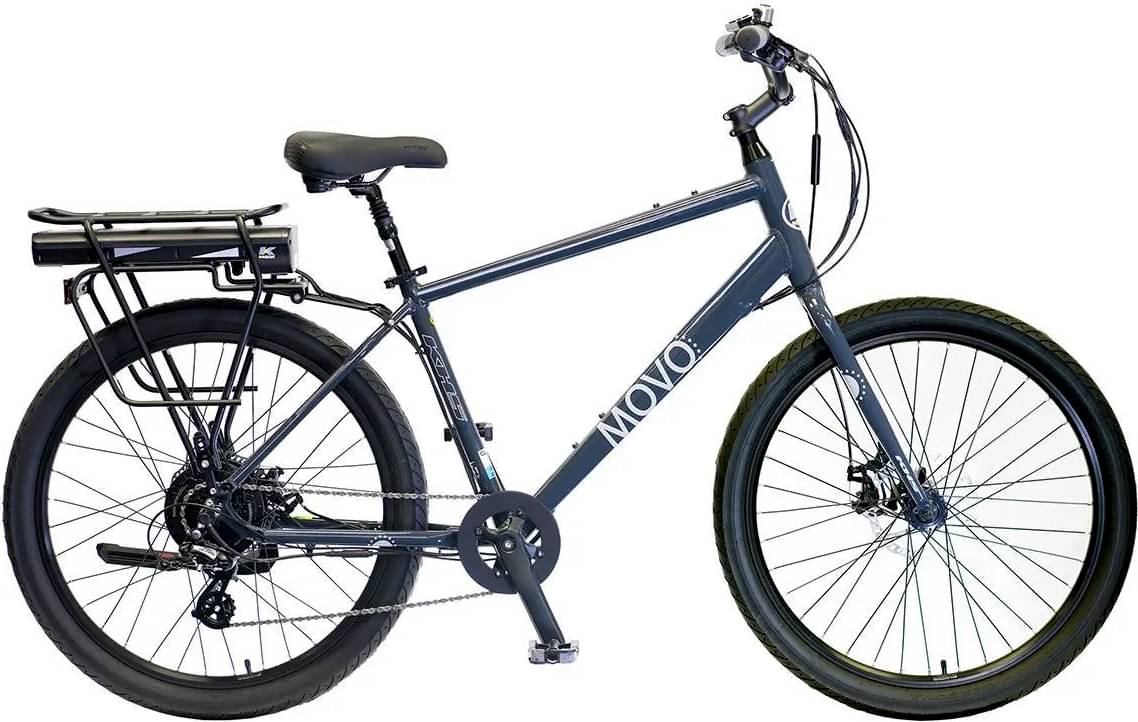

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Altus -
Suspension Rigid -
Motor Bafang 500W 45Nm hub-drive -
Battery Lithium 48V x 10.5Ah, 504Wh -
Drivetrain 1 × 8 -
Brakes Drum
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum w/Custom Formed T/T & D/T w/Replaceable Derailleur Hanger, Internal Cable Routing
Suspension Fork
Aluminum Straight Leg w/CrMo Steerer, Disc Mount
Drivetrain
Rear Derailleur
Shimano Altus RD-M310
Front Derailleur
n/a
Shift Levers
Shimano SL-M315 Trigger
Cassette
Shimano CS-HG31-8, 11-34T, 8-Speed
Crank
Forged, 36T w/Guard, 170mm
Chain
KMC E8S
Pedals
Wellgo Platform w/Non-slip Tread, DU Bearings
Wheels
Front Hub
Aluminum Disc w/CNC Rotor Flange, QR
Rear Hub
Bafang, Drum Motor
Rims
Weinmann Aluminum Double Wall, 26x36H
Spokes
14G Black, 36 Front / 13G Black, 36 Rear
Tires
Innova, 26 x 2.35” w/Anti-Puncture
Brakes
Brakes
Radius Cable Disc BR-CX7, 160mm Rotors w/ABS System
Brake Levers
Bengal Aluminum Linear Pull Trekking 3 Finger w/Sensor Control
Cockpit
Stem
Aluminum Threadless, 17 Degree, 90mm
Handlebar
Aluminum 100mm rise/660mm, 25.4mm
Grips
Comfort Kraton
Headset
1-1/8” Threadless, Zero Stack w/Aluminum Conical Top Cap
Seat
Saddle
DDK Wide Comfort, Memory Foam w/Elastomer Spring
Seatpost
Aluminum Suspension, 27.2x350mm
Motor & Battery
Motor
Bafang RMG020-500DC, 48V x 500W, 45Nm, Class II
Battery
Lithium 48V x 10.5Ah, 504Wh
