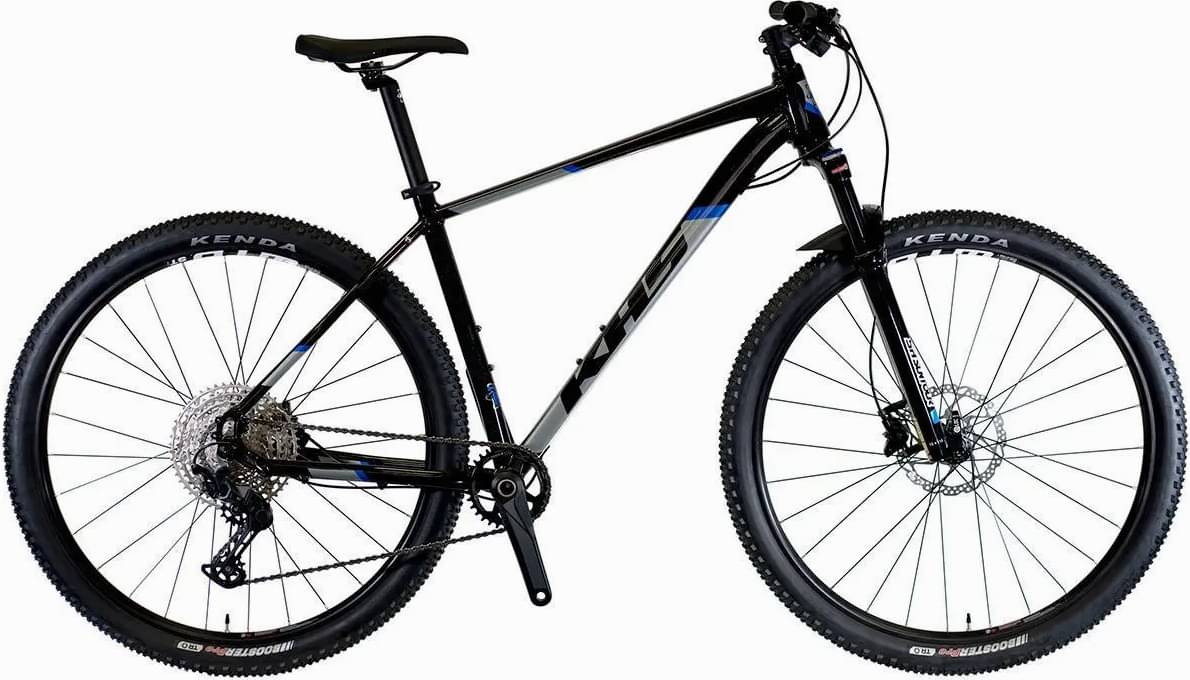

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour
-
Groupset SLX, Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum Double Butted w/Custom Formed T/T & D/T, 1.5 Taper, 141mm Boost, w/Replaceable Derailleur Hanger, 27.5 Plus Compatible, Internal Cables
Suspension Fork
SR Axom 32-LORC, 29 Std/27.5 Plus, 100mm Air, Hydraulic Speed Lock-Out w/Ext. Rebound & Compression Dampening Adjust, 1-1/8~ 1.5 Aluminum Taper, 15QR x 110 Boost
Drivetrain
Rear Derailleur
Shimano SLX RD-M7100
Front Derailleur
n/a
Shift Levers
Shimano New Deore, SL-M6100, 12s, Trigger, Right Only, I-Spec EV
Cassette
Shimano Deore CS-M6100, 10-51T, 12-Speed
Crank
Shimano FC-MT511, 2-pc, Boost, 32T, S:170, M-XL:175, Ladies:170
Bottom Bracket
Outboard Cartridge Bearing
Chain
Shimano CN-M6100
Pedals
n/a
Wheels
Front Hub
Shimano HB-MT410, Center Lock Disc, 15mm x 110mm, Boost
Rear Hub
Shimano FH-MT401-B, CenterLock Disc, QR, Cassette, Boost
Rims
WTB ST S:i35:27.5”, M-XL: i25:29”, TCS, Disc, Double Wall, 32H, Tubeless-Ready
Spokes
14G Stainless Black w/Aluminum Nipples, 32x32
Tires
S: Kenda Booster Pro, 27.5x2.6, M-XL: Booster Pro, 29x2.2, 120TPI Folding, Tubeless Ready
Brakes
Brakes
Shimano MT410 Hydraulic Disc, 180/160mm RT54 CenterLock Rotors
Brake Levers
Shimano M4100, I-Spec EV
Cockpit
Stem
FSA V-Drive, 3D Forged, 4-bolt, 6 Degree, 31.8, S:60mm, M:70mm, L:80mm, XL:90mm
Handlebar
FSA Comet Low Riser, 31.8, 760x15mm, Ladies: 720x15mm
Grips
Q2 Lock-on
Headset
FSA Orbit 1.5E, Zero Stack, 1 1/8”~1.5
Seat
Saddle
WTB Volt Medium, Ladies: KHS Ladies Design
Seatpost
KHS Aluminum Micro-Adjust 31.6x350mm
