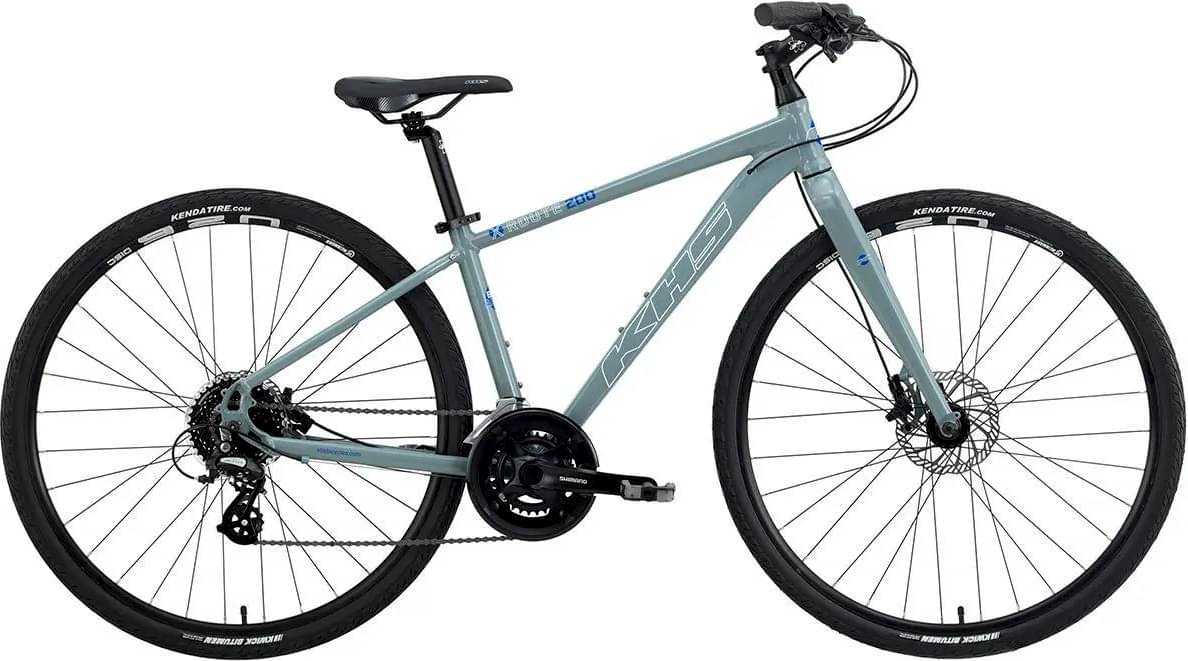

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Groupset Tourney, Altus -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum w/Custom Formed T/T & D/T w/C/S Disc Mount, w/Replaceable Derailleur Hanger
Suspension Fork
Full Aluminum Unicrown, Fender Bosses w/Disc, Straight Blade
Drivetrain
Rear Derailleur
Shimano Altus, M310
Front Derailleur
Shimano, FD-TY710, 34.9mm
Shift Levers
Shimano, SL-315 Trigger Shifters
Cassette
Shimano CS-HG31-8, 11-34T, 8-Speed
Crank
Shimano FC-TY501, 46/30 w/Chainguard, XS-M:170, L-XL: 175
Bottom Bracket
FSA Cartridge Bearing, 122.5mm
Chain
KMC Z8.3
Pedals
Wellgo Platform w/Non-slip Tread, DU Bearings
Wheels
Front Hub
KK Aluminum Disc, QR w/Rubber Seal
Rear Hub
KK Aluminum Disc, QR w/Rubber Seal, Cassette
Rims
Weinmann U26 Disc, 700x32H, Double Wall
Spokes
14G Stainless Black, 32x32
Tires
Kenda Kwick Bitumen K1068, 700 x 40c
Brakes
Brakes
Bengal Aries 3 Hydraulic Disc, 160x160, Wave 12
Brake Levers
Bengal Aries 3
Cockpit
Stem
KHS Aluminum Threadless, 17D, 4-bolt, XS:80mm, S-L: 90mm, XL: 100mm
Handlebar
Aluminum Trekking, 630mm, 31.8mm
Grips
Q2 Ergo Lock-On, Dual Density
Headset
Threadless 1-1/8, Zero Stack
Seat
Saddle
KHS Ultra Comfort Plus, Soft Shell w/Memory Foam
Seatpost
KHS Aluminum Micro-Adjust, 31.6x350mm
