Kinesis Fernweh Frame 2023

Bike details

Overview

Key information split into simple groups.

Frame summary

Category
Frame Titanium
Wheels 29"

Sizing

Recommended size guide.

XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Suspension Fork

Geometry optimised for 80mm travel suspension fork.

Drivetrain

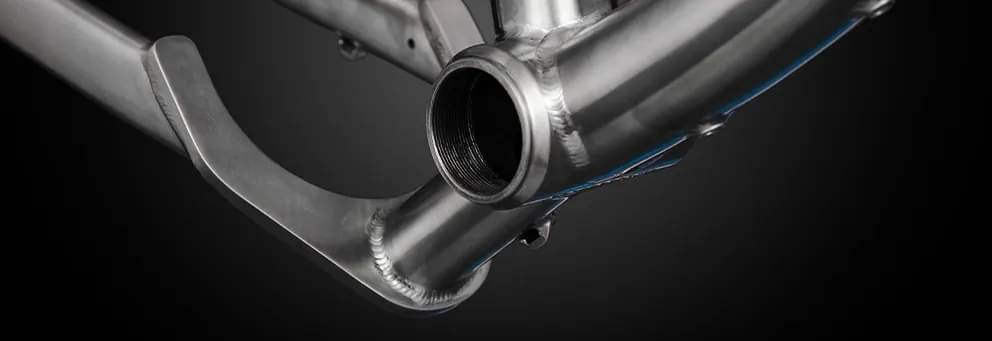

Bottom Bracket

73mm BSA threaded BB shell,

Fit data

Geometry

Numbers for sizing and ride feel.

Size	XS	SM	MD	LG	XL
Stack Reach Ratio	1.61 mm	1.56 mm	1.53 mm	1.49 mm	1.44 mm
Bottom Bracket Height	304 mm	304 mm	304 mm	304 mm	304 mm
Front Center	649 mm	670 mm	690 mm	715 mm	747 mm
Rake	50 mm	50 mm	50 mm	50 mm	50 mm
Trail	94 mm	94 mm	94 mm	94 mm	94 mm
Stack	615 mm	625 mm	635 mm	649 mm	665 mm
Reach	382 mm	400 mm	416 mm	436 mm	461 mm
Top Tube Length	569 mm	590 mm	609 mm	633 mm	663 mm
Seat Tube Angle	73 °	73 °	73 °	73 °	73 °
Seat Tube Length	370 mm	419 mm	470 mm	521 mm	572 mm
Head Tube Angle	68.5 °	68.5 °	68.5 °	68.5 °	68.5 °
Head Tube Length	131 mm	142 mm	153 mm	168 mm	185 mm
Chainstay Length	464 mm	464 mm	464 mm	464 mm	464 mm
Wheelbase	1104 mm	1125 mm	1145 mm	1171 mm	1202 mm
Bottom Bracket Drop	70 mm	70 mm	70 mm	70 mm	70 mm
Wheels	29"	29"	29"	29"	29"
Rider Min Height	156 cm	163 cm	171 cm	179 cm	185 cm
Rider Max Height	166 cm	174 cm	182 cm	189 cm	195 cm

About this model

Fernweh Frame belongs to the Kinesis Fernweh model. Kinesis released 1 frame variation of this model so far.

Safety

Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.

Average price for Crosscountry frames

Our math shows that the average cost of a dependable Crosscountry frame is 1689$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.

At the moment of the release date, Kinesis Fernweh Frame price was 2919$. Doing a quick comparison, we notice that Fernweh Frame price is 72.82% more expensive than the average cost of a Crosscountry frame.

Average weight for Crosscountry frames

If we make a quick analysis of the average weight of a Crosscountry frame, we get 1.98 kg (4.37 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.

With a weight of 2.3 kg (5.07 lbs), Kinesis frame is much heavier than average. In other words, this model is 16.16% heavier than the average Crosscountry frame.

Fernweh Frame components

Sizes

Fernweh Frame comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.

Model years
