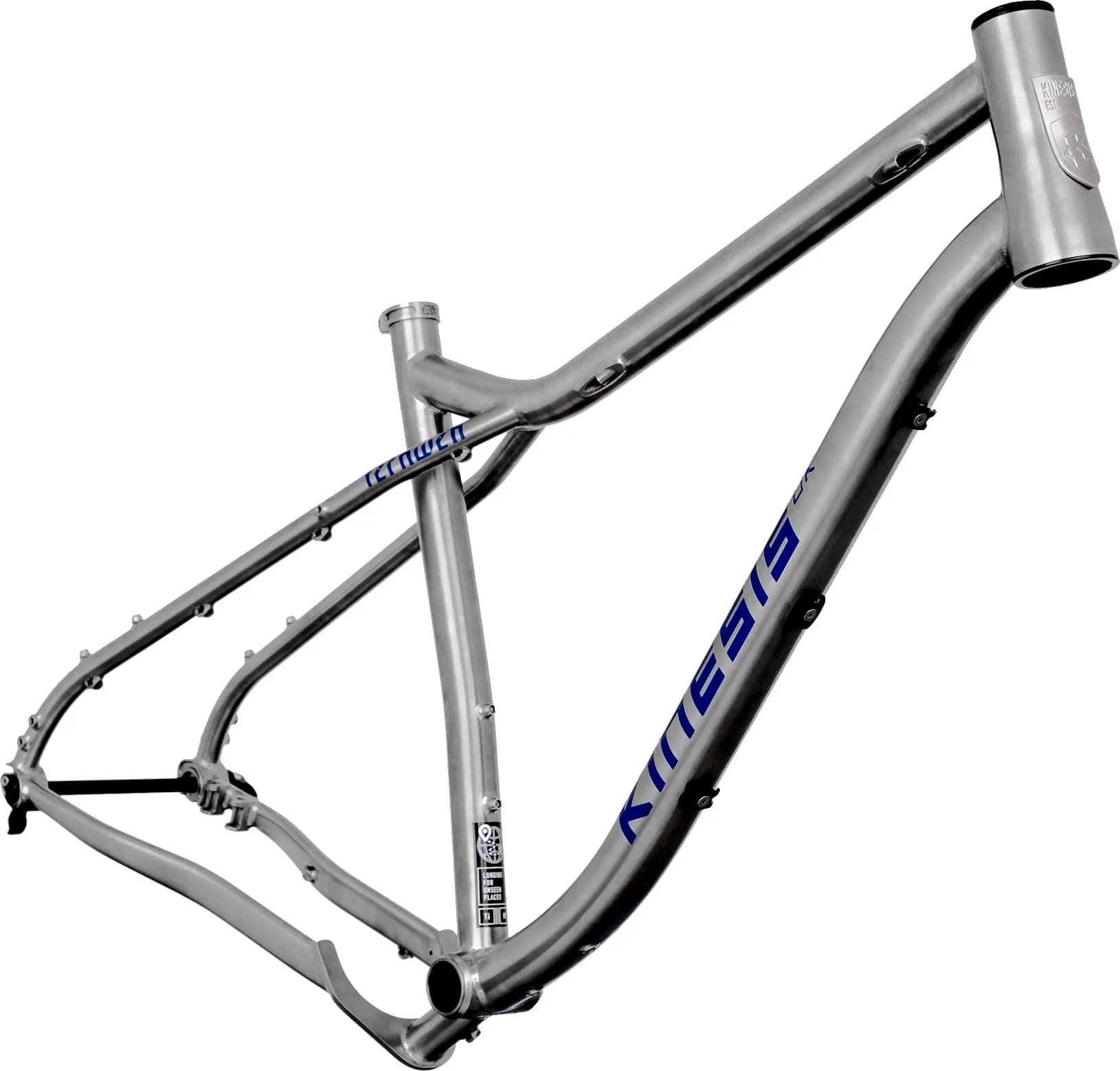

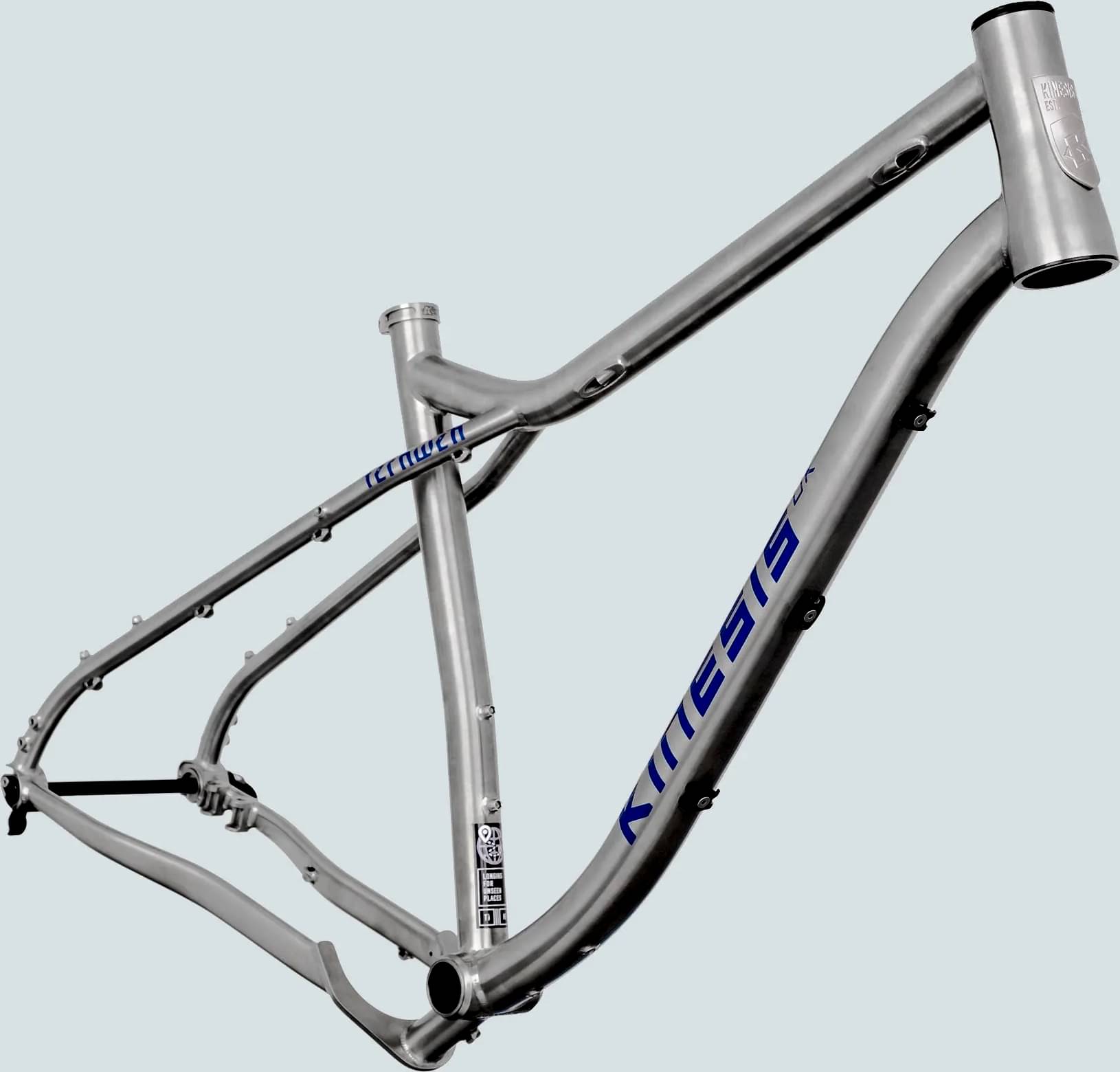

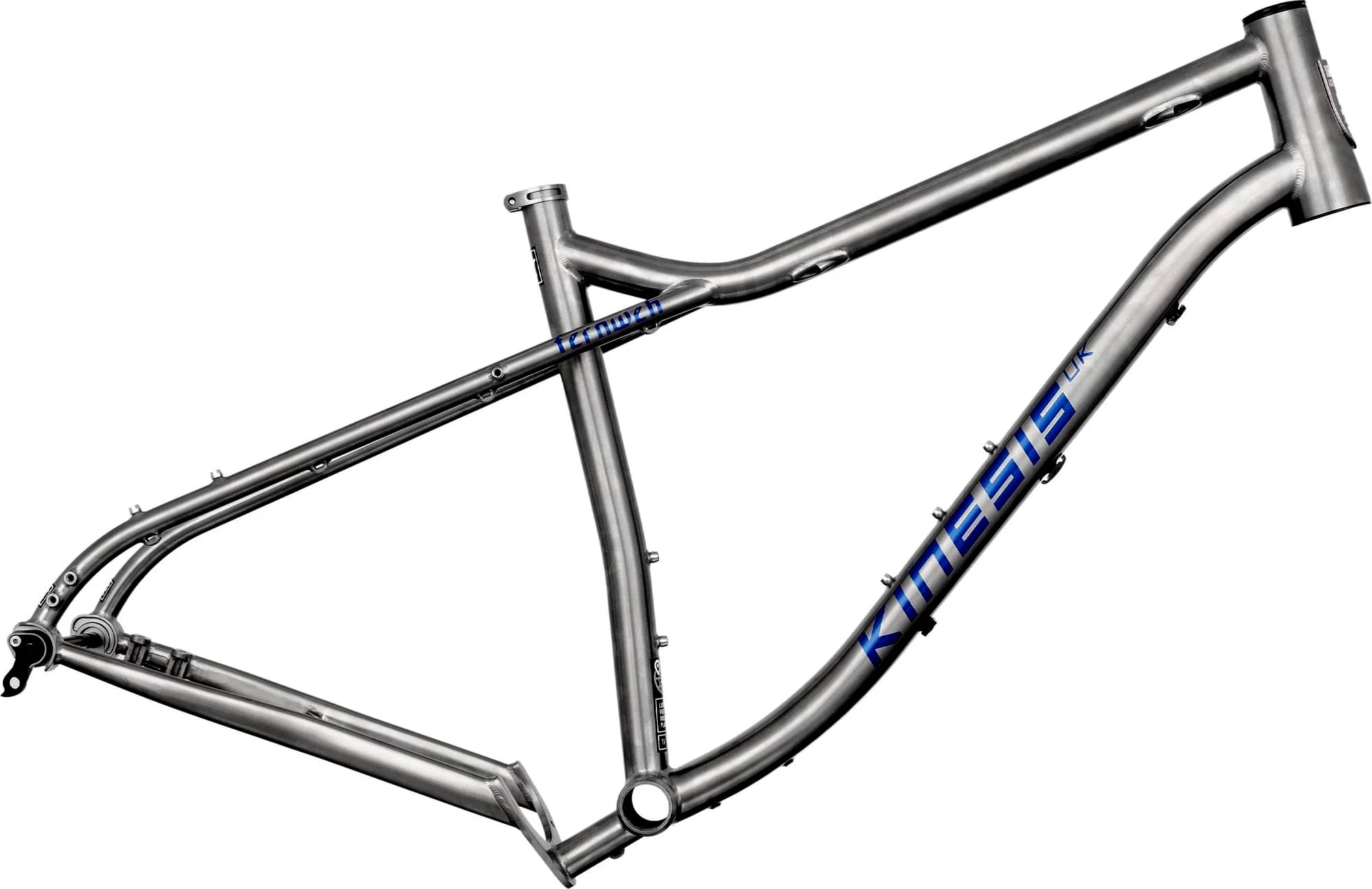

Kinesis Fernweh Frameset 2024
2024 Mountain
Estimate price |
3,252$
Weight | 2.3 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Titanium
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3AL/2.5V Titanium tubing

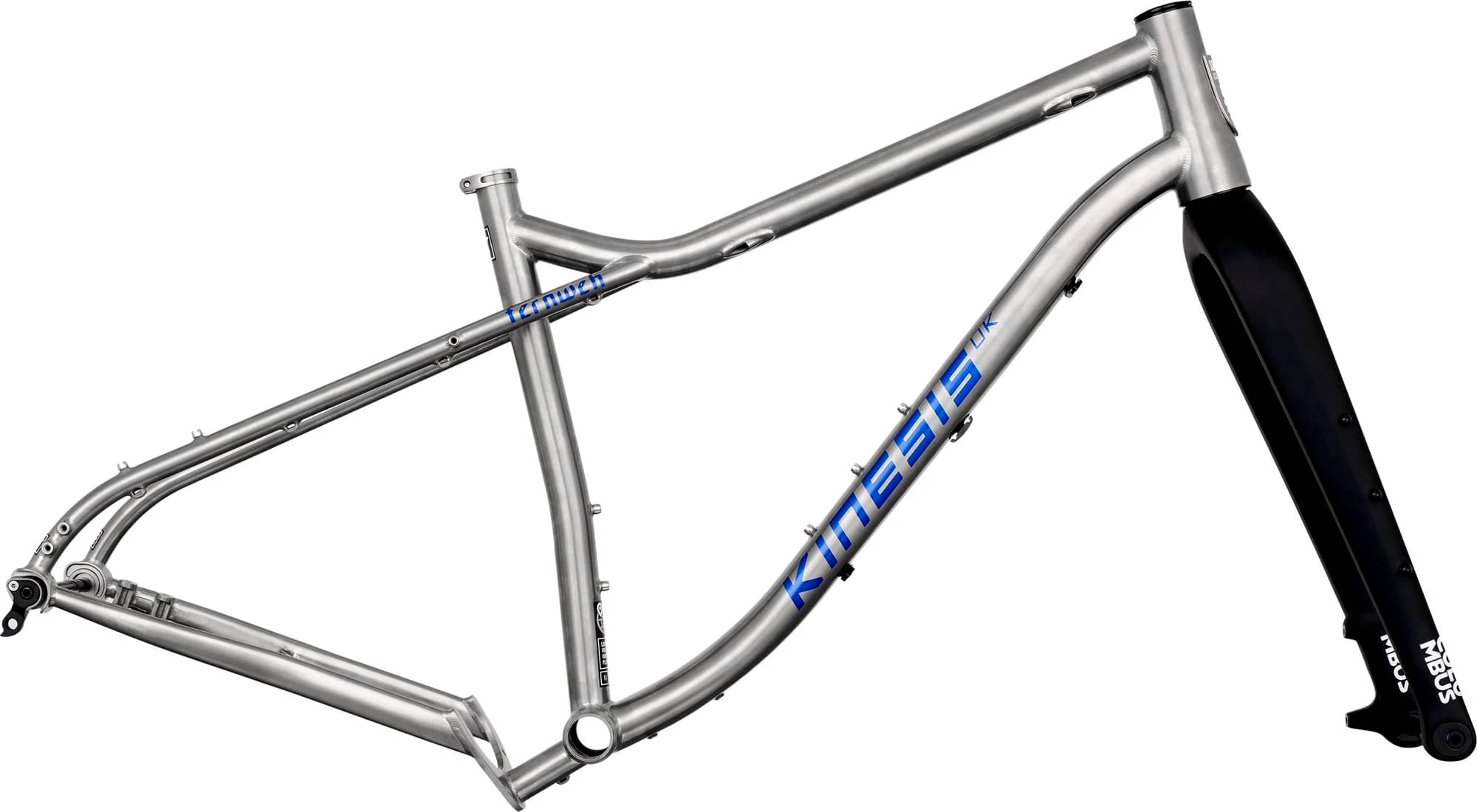

Suspension Fork
Optional Columbus Futura Adventure carbon fork
Drivetrain

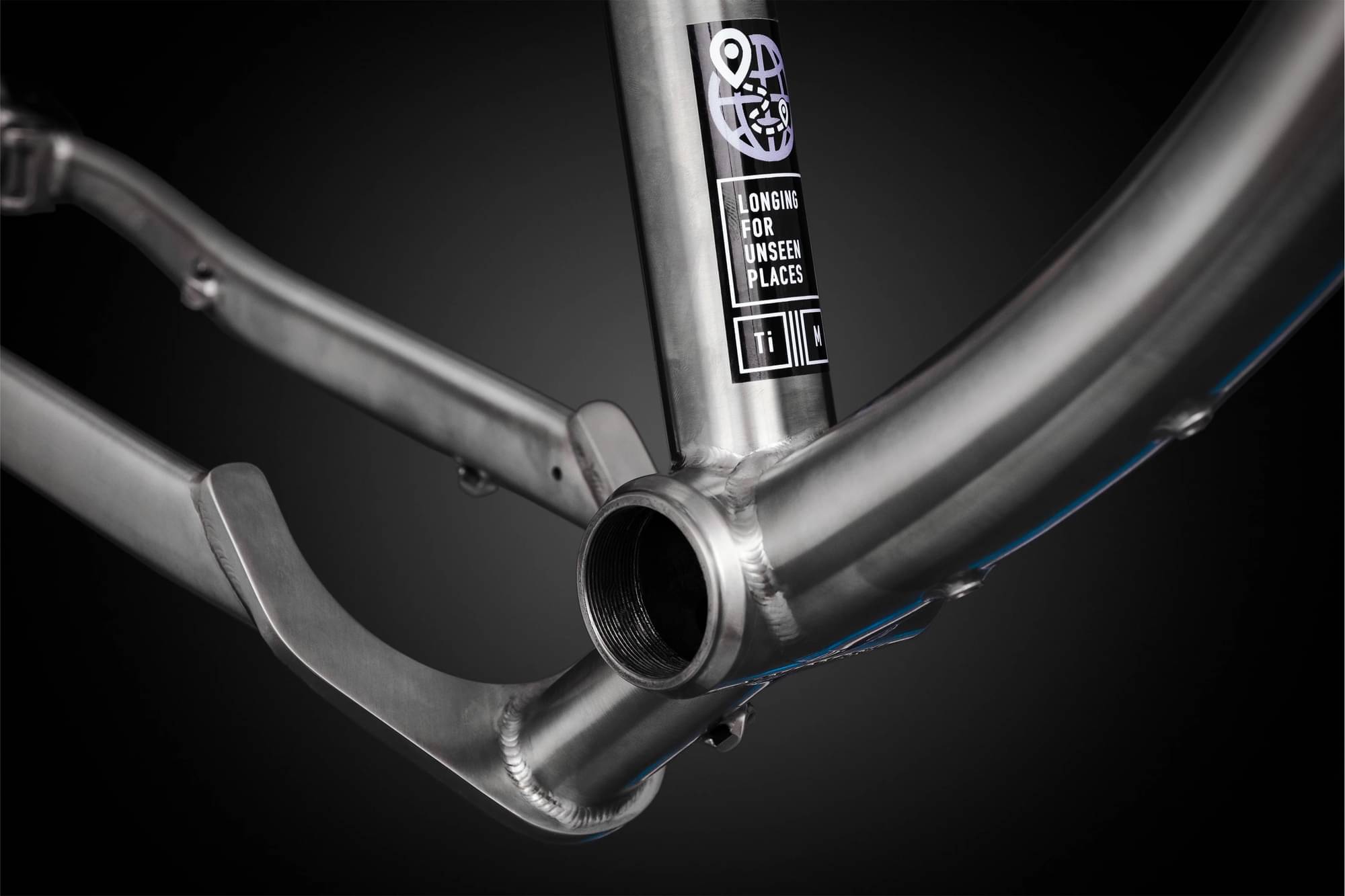

Bottom Bracket
73mm BSA threaded BB shell
Cockpit

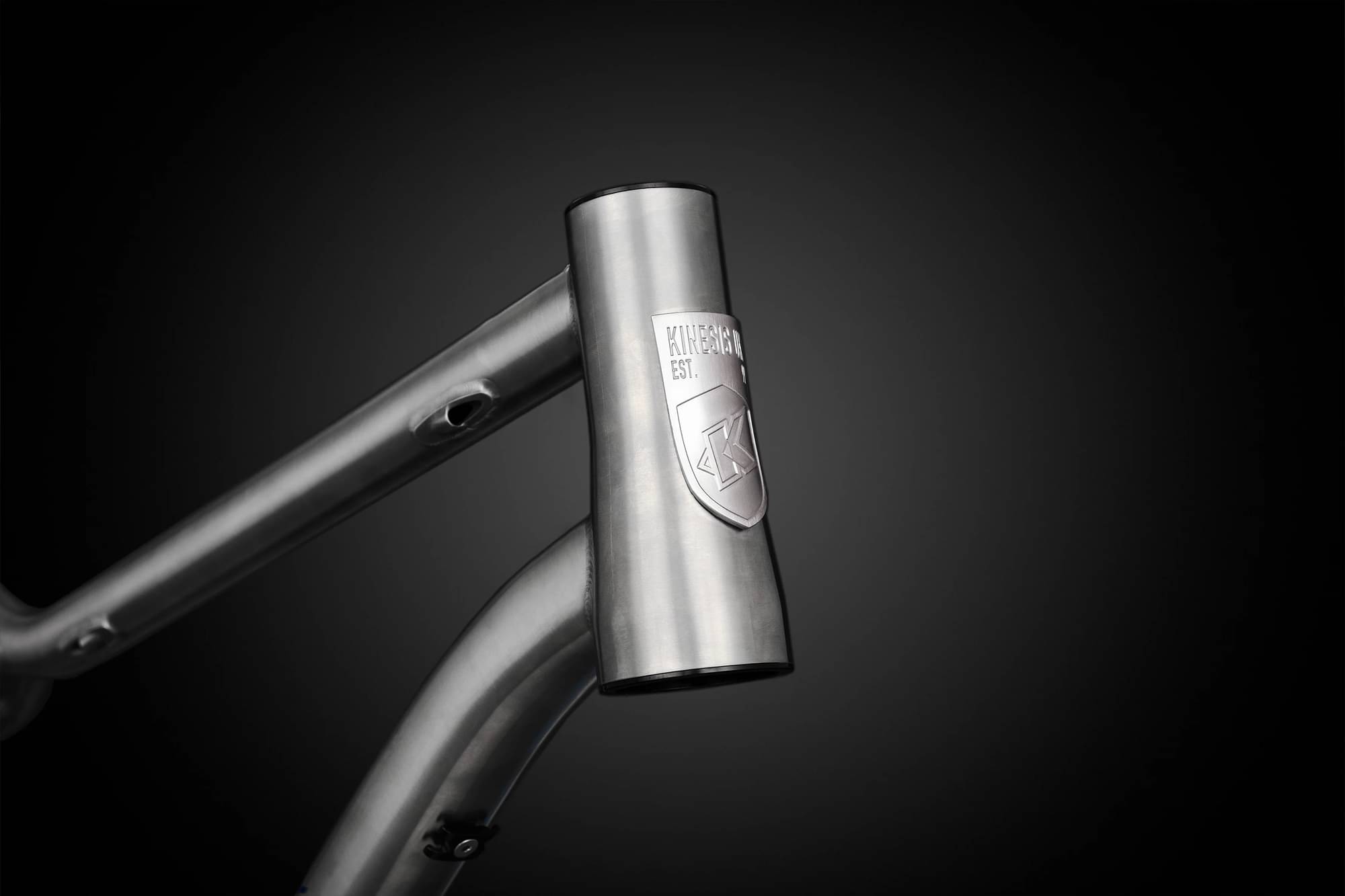

Headset
Headset required
Seat

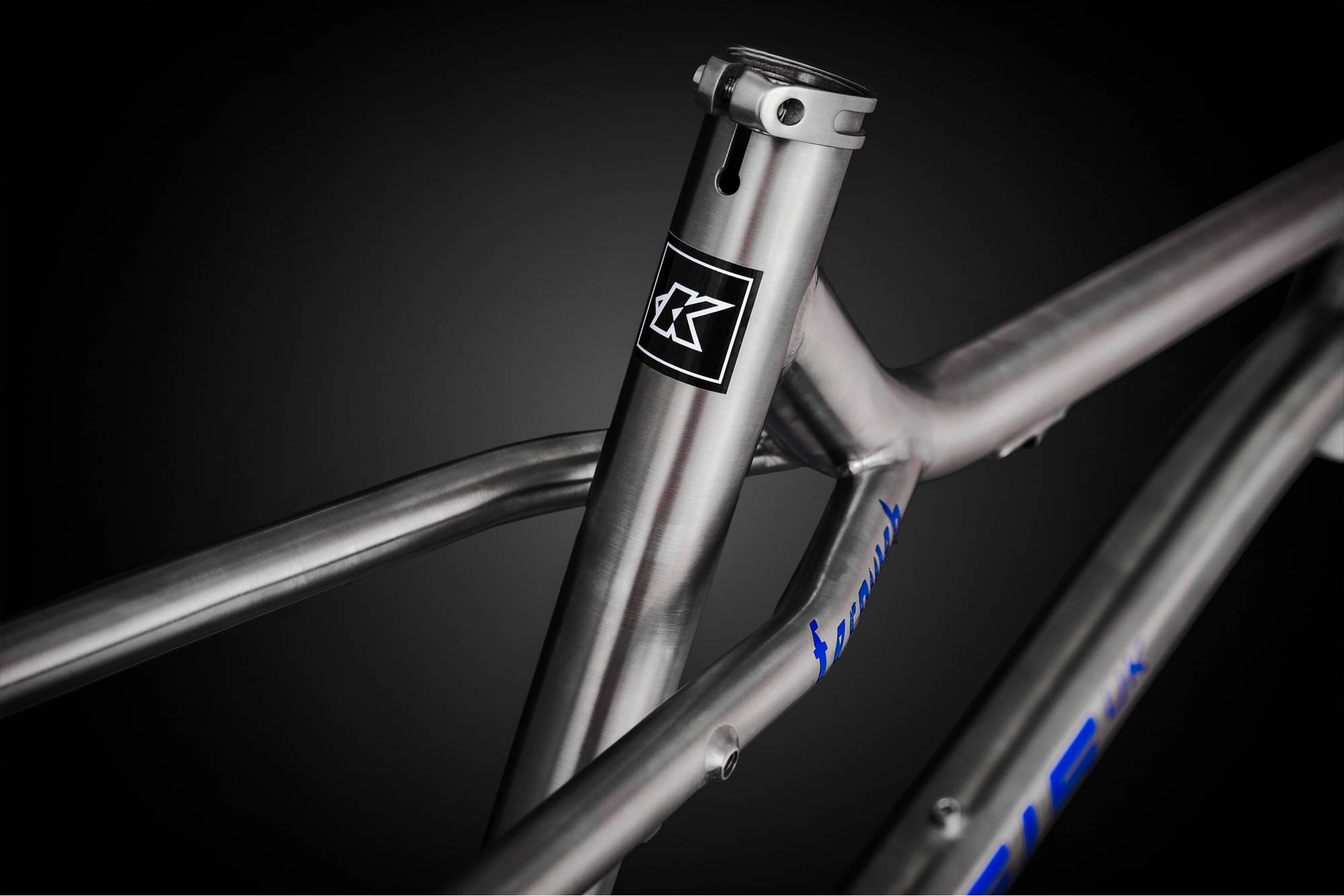

Seatpost
Dropper post compatible for when the terrain gets steep.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.616 mm | 1.568 mm | 1.532 mm | 1.493 mm | 1.446 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 649 mm | 670 mm | 690 mm | 715 mm | 747 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 94 mm | 94 mm | 94 mm | 94 mm | 94 mm |
| Stack | 611 mm | 621 mm | 631 mm | 645 mm | 661 mm |
| Reach | 378 mm | 396 mm | 412 mm | 432 mm | 457 mm |
| Top Tube Length | 565 mm | 586 mm | 605 mm | 629 mm | 659 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 370 mm | 419 mm | 470 mm | 521 mm | 572 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 131 mm | 142 mm | 153 mm | 168 mm | 185 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1100 mm | 1121 mm | 1141 mm | 1167 mm | 1198 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
