Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Apex -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

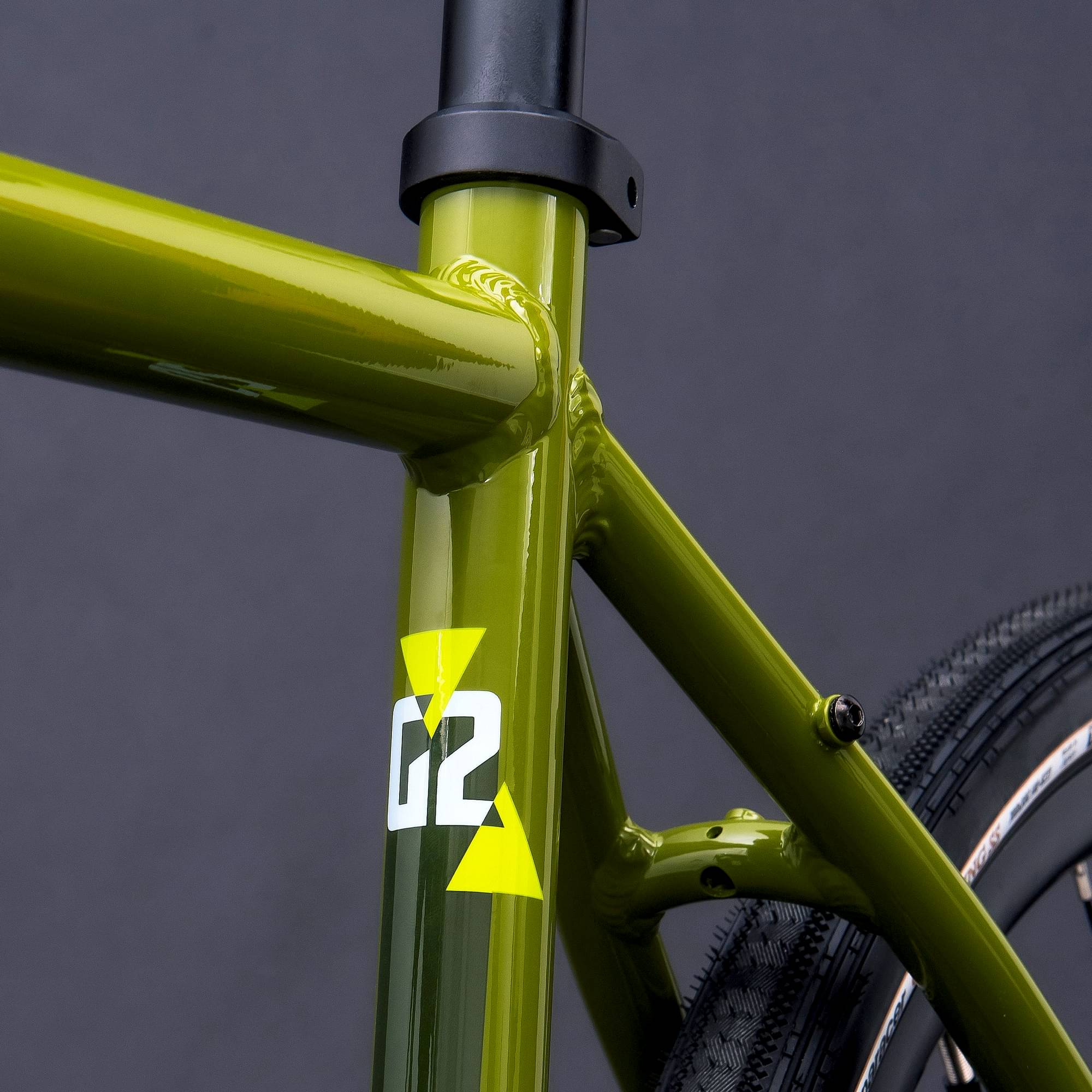

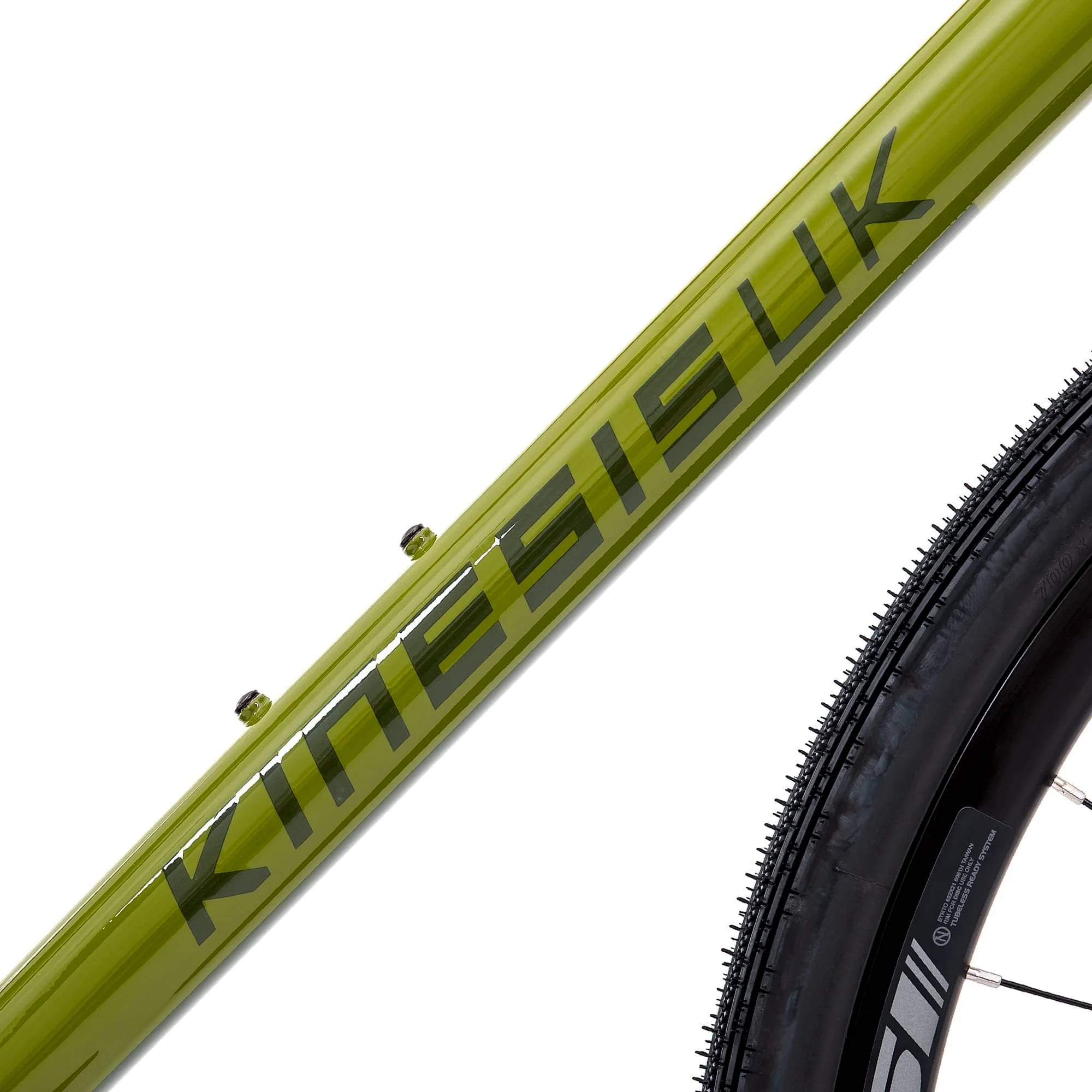

Frame
Kinesis G2 Double Butted Alloy 6061
Suspension Fork
700C Carbon Fork, Carbon Tapered Steerer, Oval Blades, Flat Disc Mount, 12mm x 100mm Thru Axle
Drivetrain
Rear Derailleur

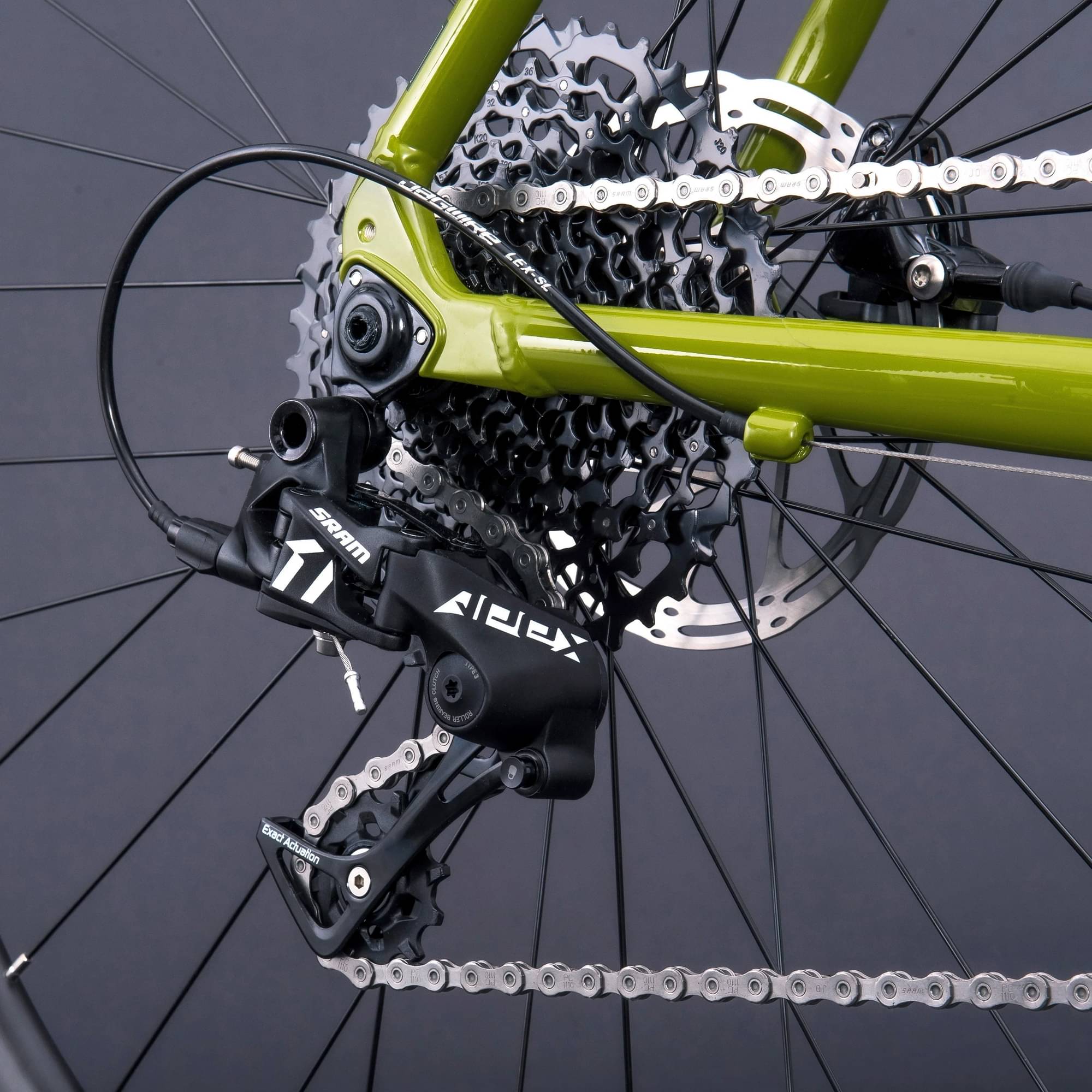

SRAM Apex 1 Long Cage
Shift Levers
SRAM Apex 1 x 11 Speed
Cassette
SRAM PG-1130 POWERGLIDE 11-42

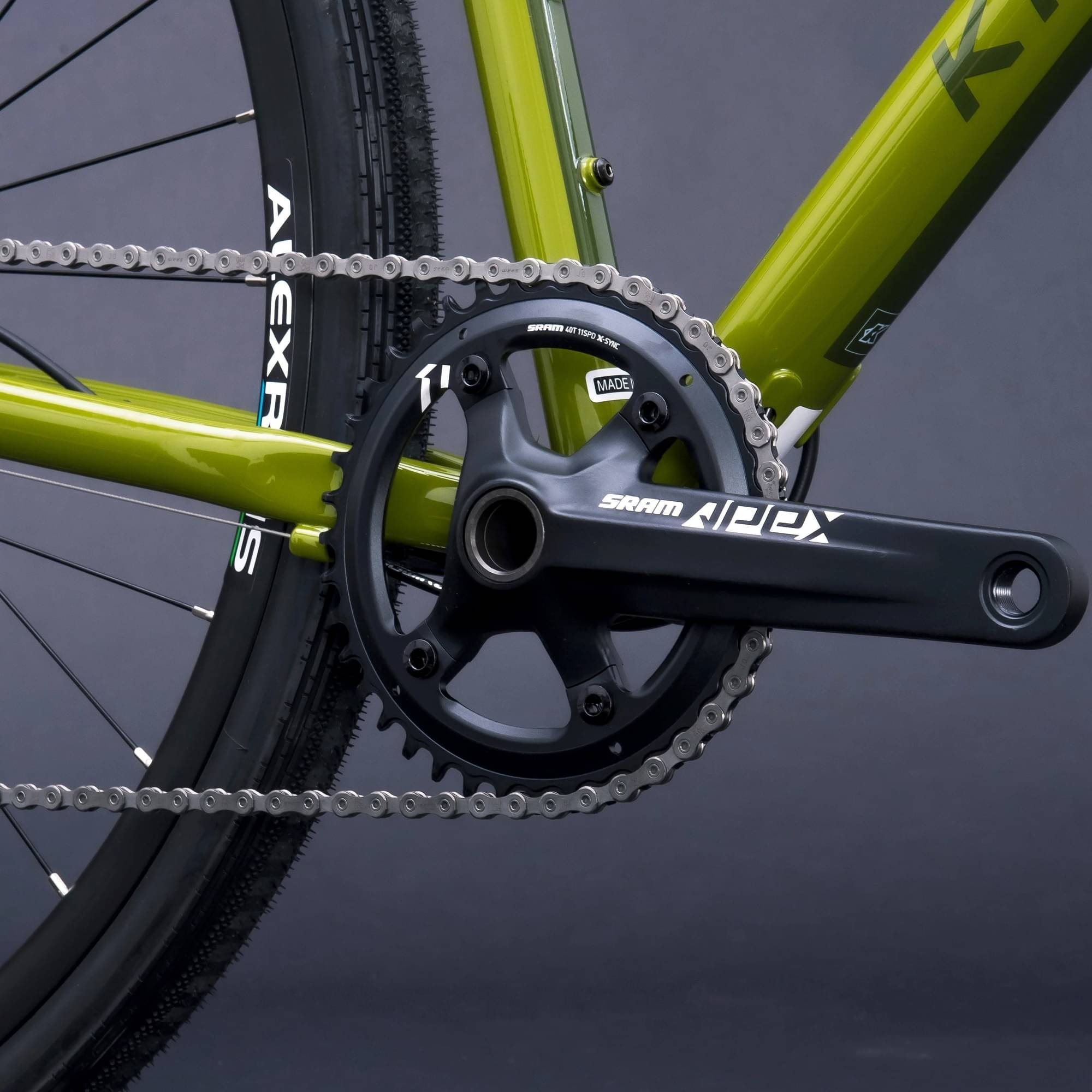

Crank

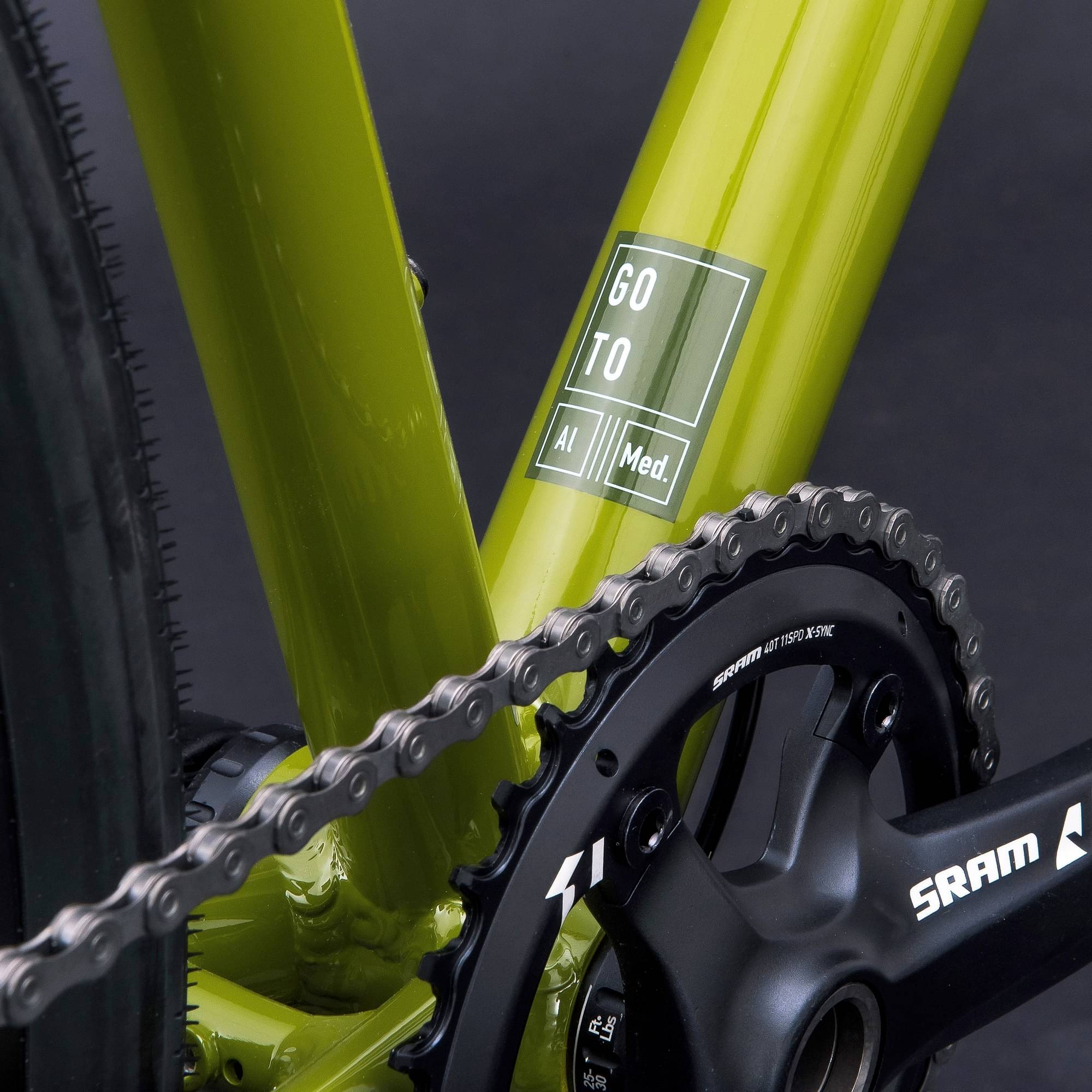

SRAM Apex 1 X-SYNC 40t S(51):170mm M(54):172.5mm L(57):172.5mm XL(60):175mm
Bottom Bracket
SRAM BB GXP - 68mm BSA
Chain
SRAM PC1110 with POWERLOCK
Wheels
Front Hub
Alloy, Sealed Cartridge Bearing Hub, Centre-lock, Front
Rear Hub
Alloy, Sealed Cartridge Bearing Hub, Centre-lock, Front
Rims
Jalco Tubeless Compatible
Tires
Schwalbe G-One Allround 700x40c TLE Tubeless Tyre
Brakes
Brakes

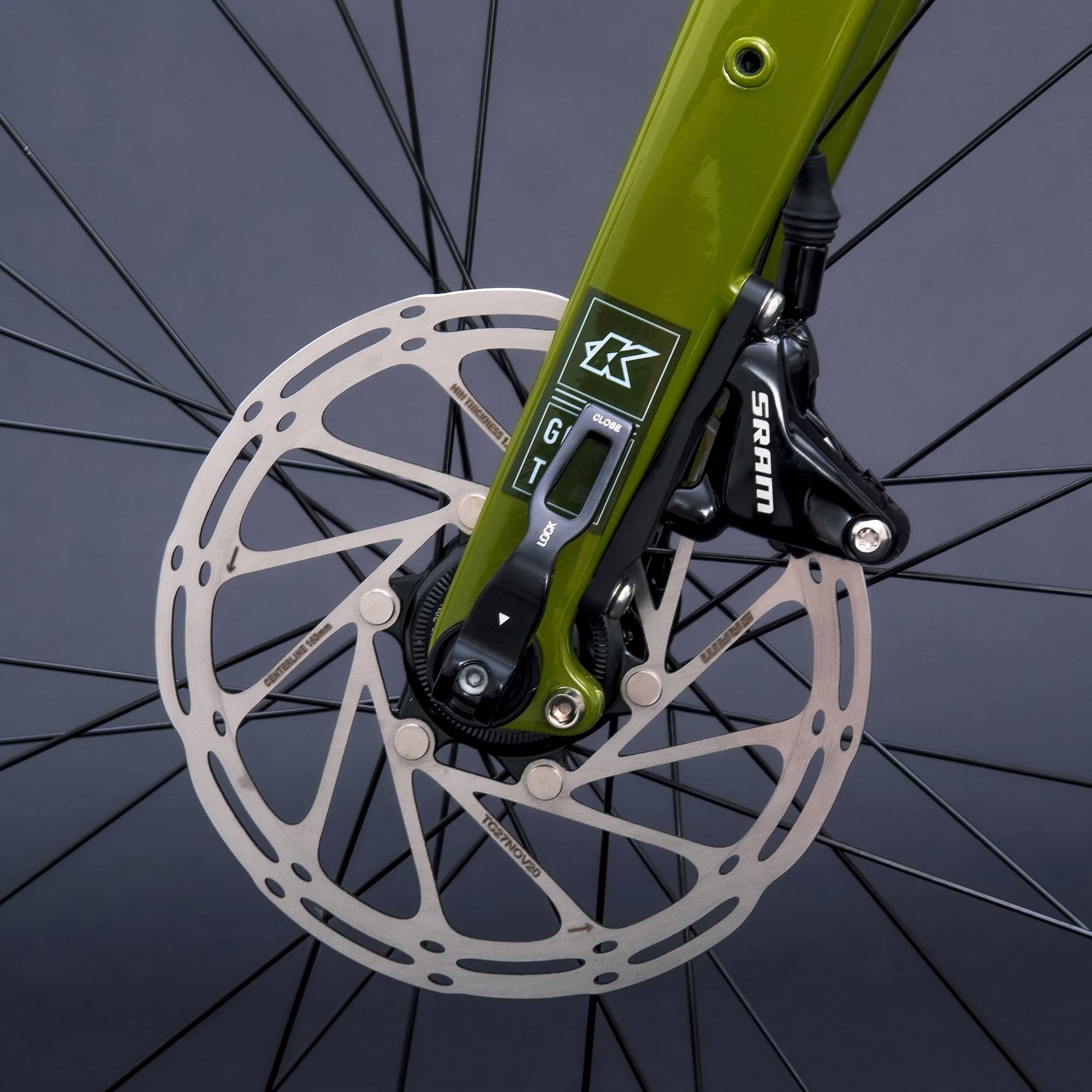

SRAM Apex 1 HYD 160mm Rotors

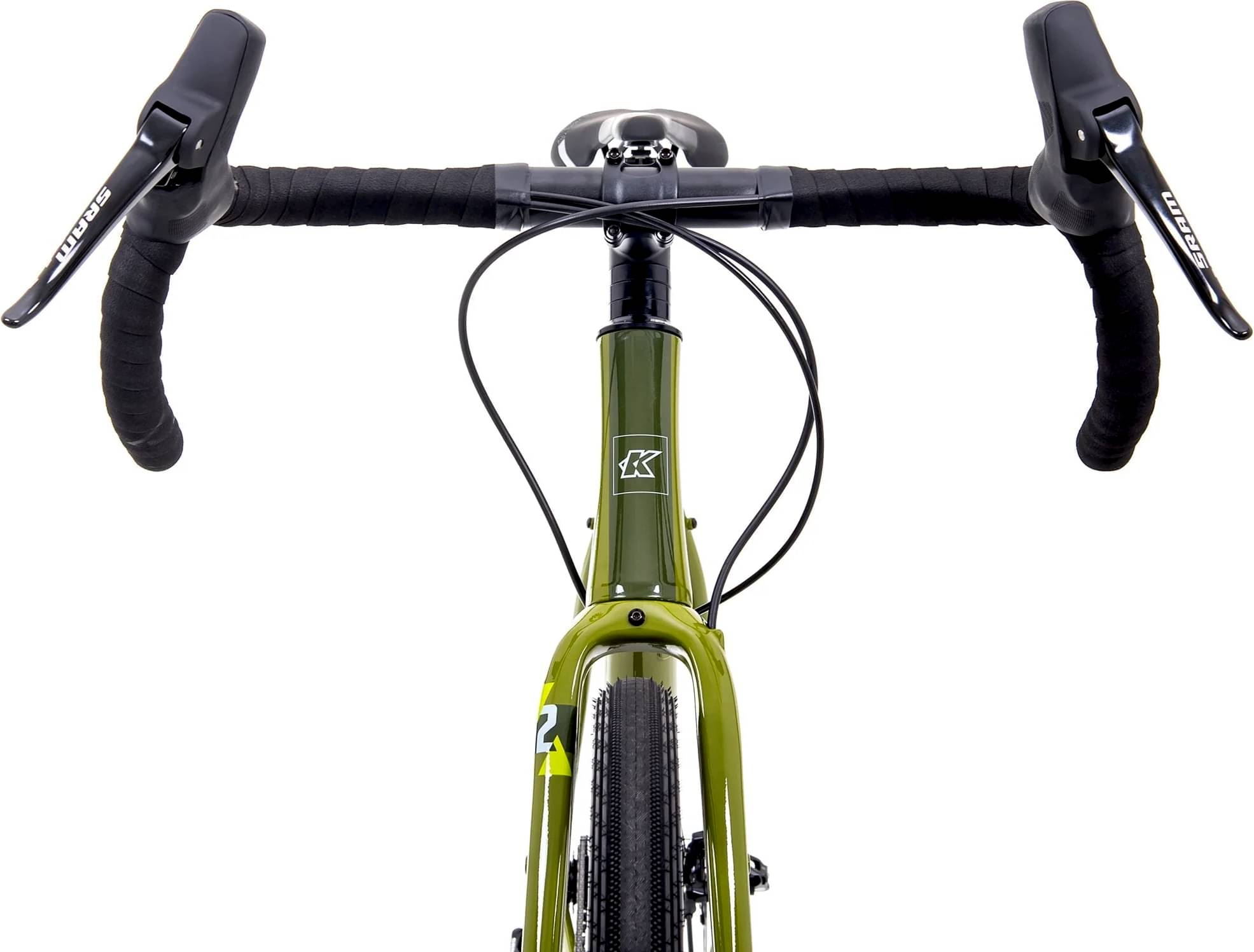

Cockpit

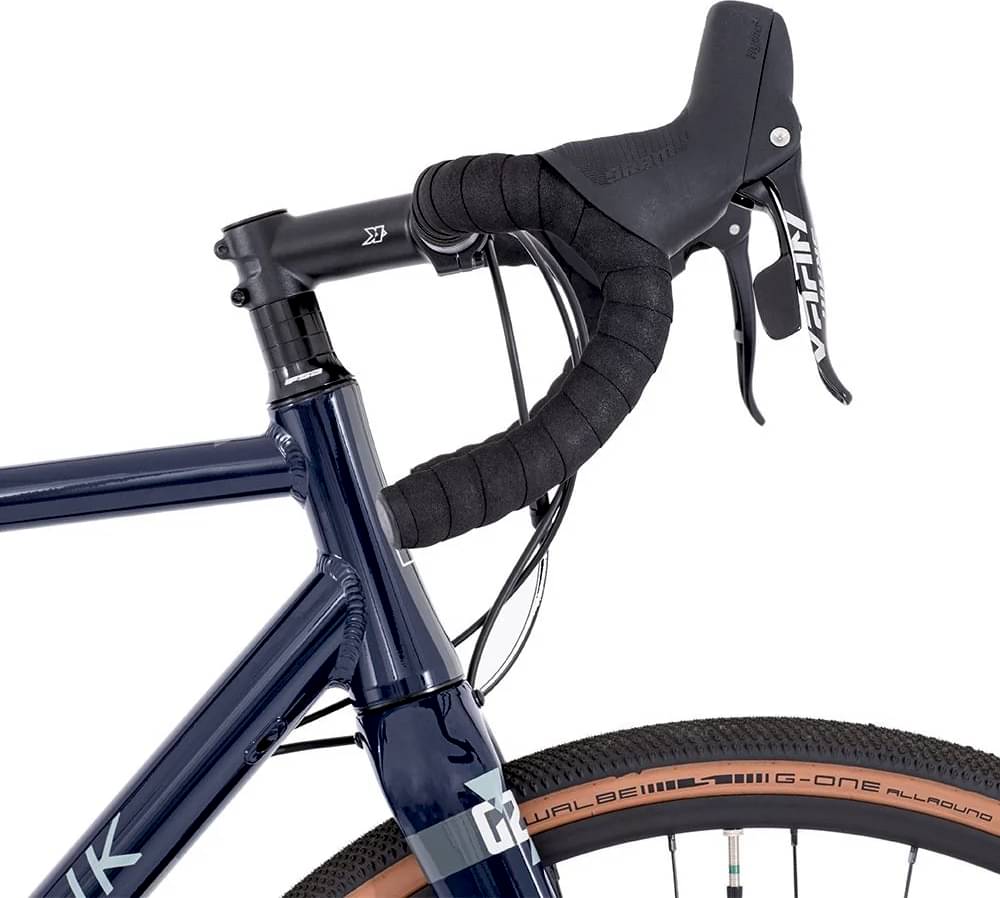

Stem
Black Alloy 6061 OEM 7° S(51):80mm M(54):90mm L(57):90mm XL(60):100mm
Handlebar
Black Alloy 6061 OEM S(51):42cm M(54):44cm L(57):44cm XL(60):46cm
Headset
FSA No. 42 Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Bearings
Seat
Saddle
Selle Italia X3 Black OEM
Seatpost
Black Alloy 6061 27.2mm, 350mm, 5mm offset OEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.446 mm | 1.484 mm | 1.526 mm | 1.587 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 598 mm | 613 mm | 628 mm | 647 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 67 mm | 67 mm | 77 mm |
| Stack | 545 mm | 570 mm | 595 mm | 630 mm |
| Reach | 377 mm | 384 mm | 390 mm | 397 mm |
| Top Tube Length | 533 mm | 547 mm | 566 mm | 584 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 490 mm | 540 mm | 570 mm | 600 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1022 mm | 1037 mm | 1052 mm | 1062 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
