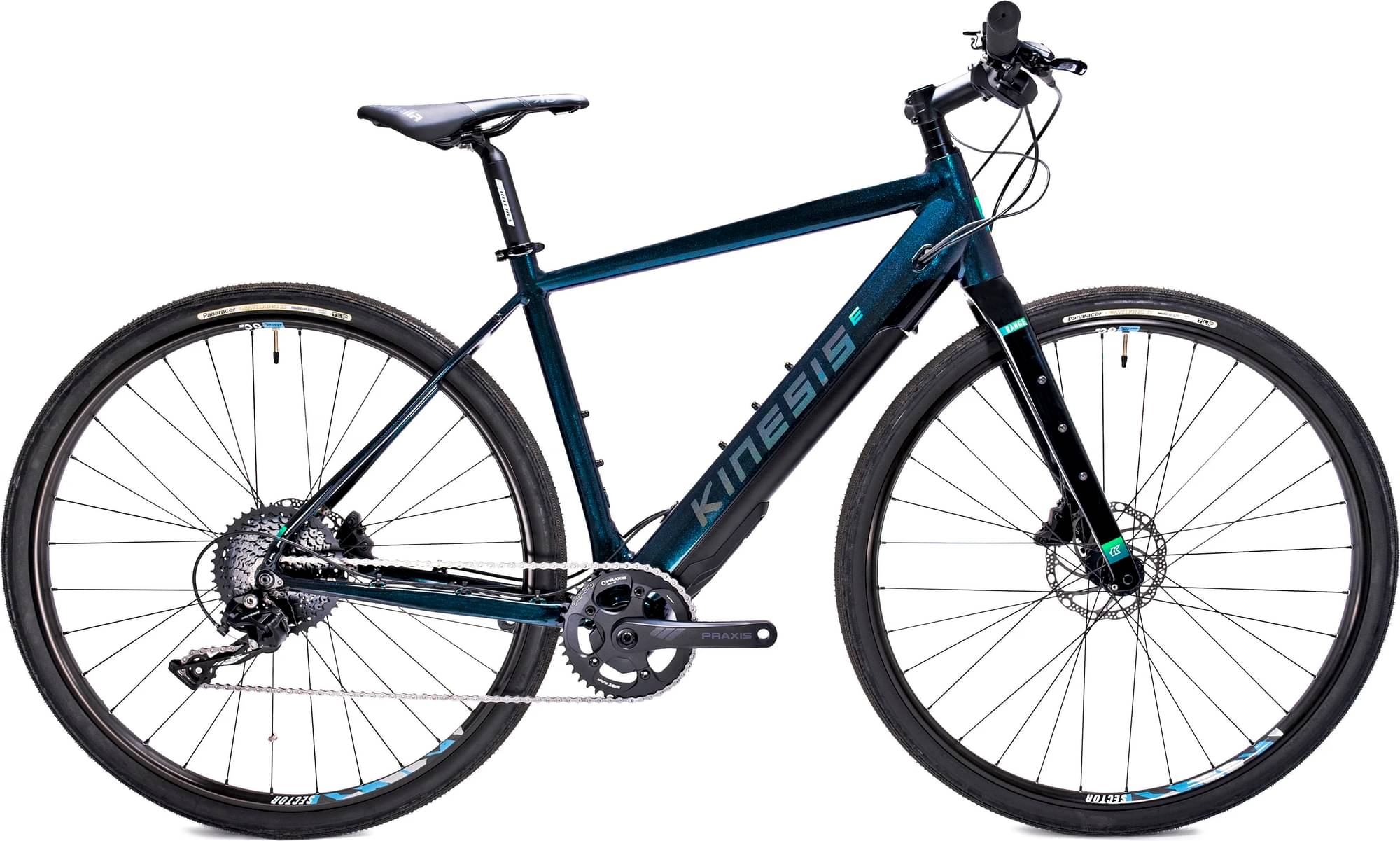

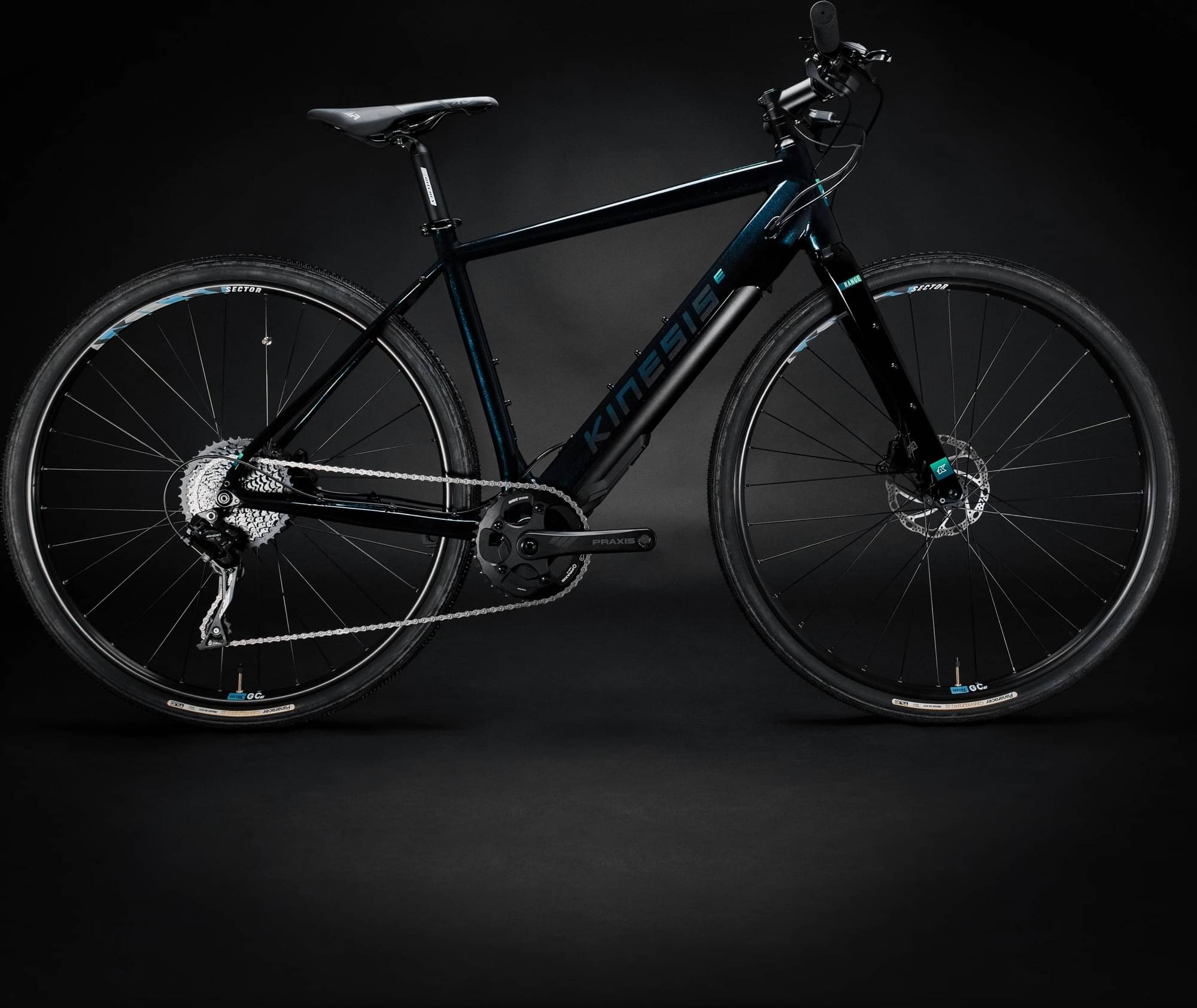

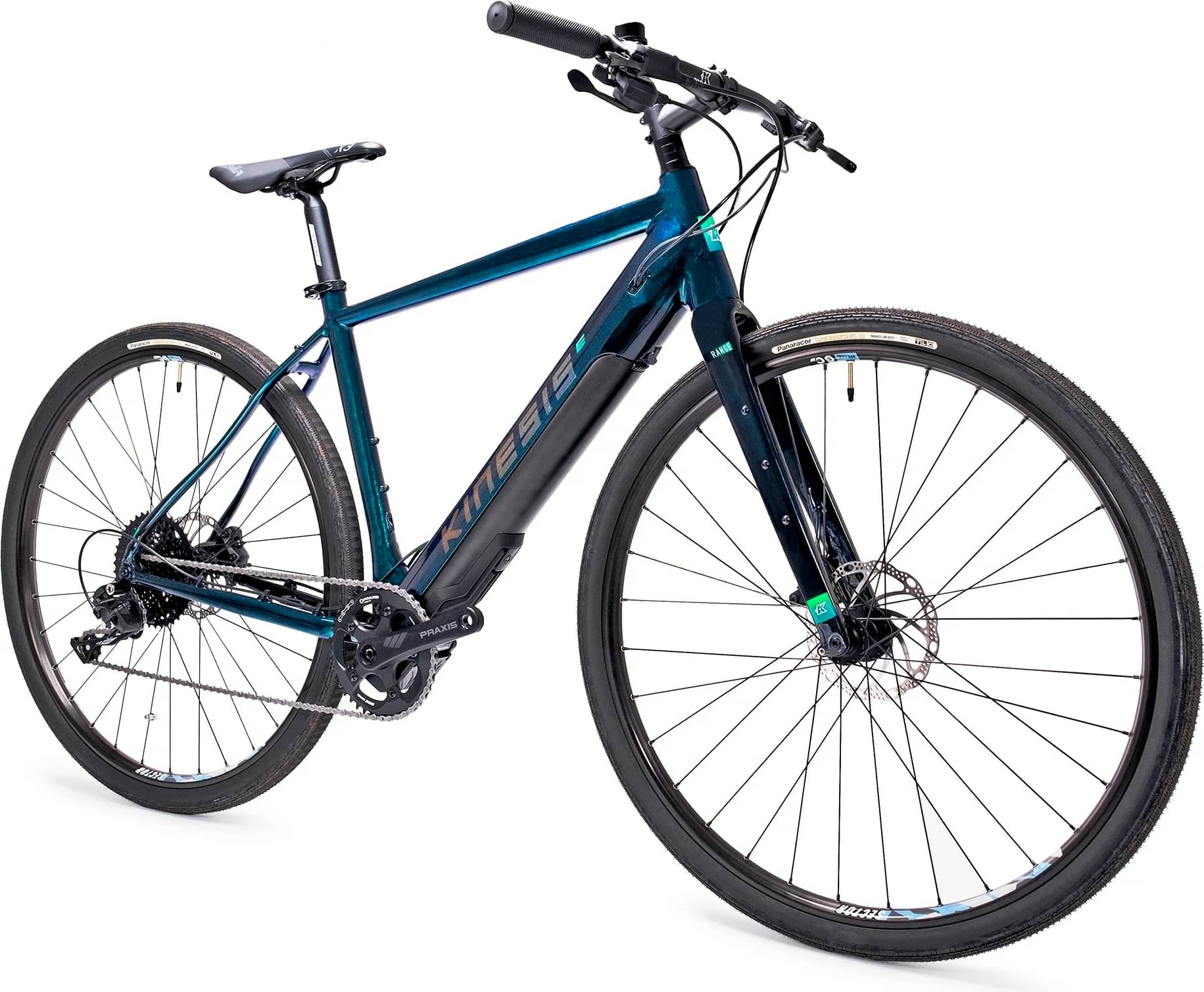

Kinesis Range 50 – Flat Bar 2024
2024 Urban
Estimate price |
4,674$
Weight | 14.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT XLE -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

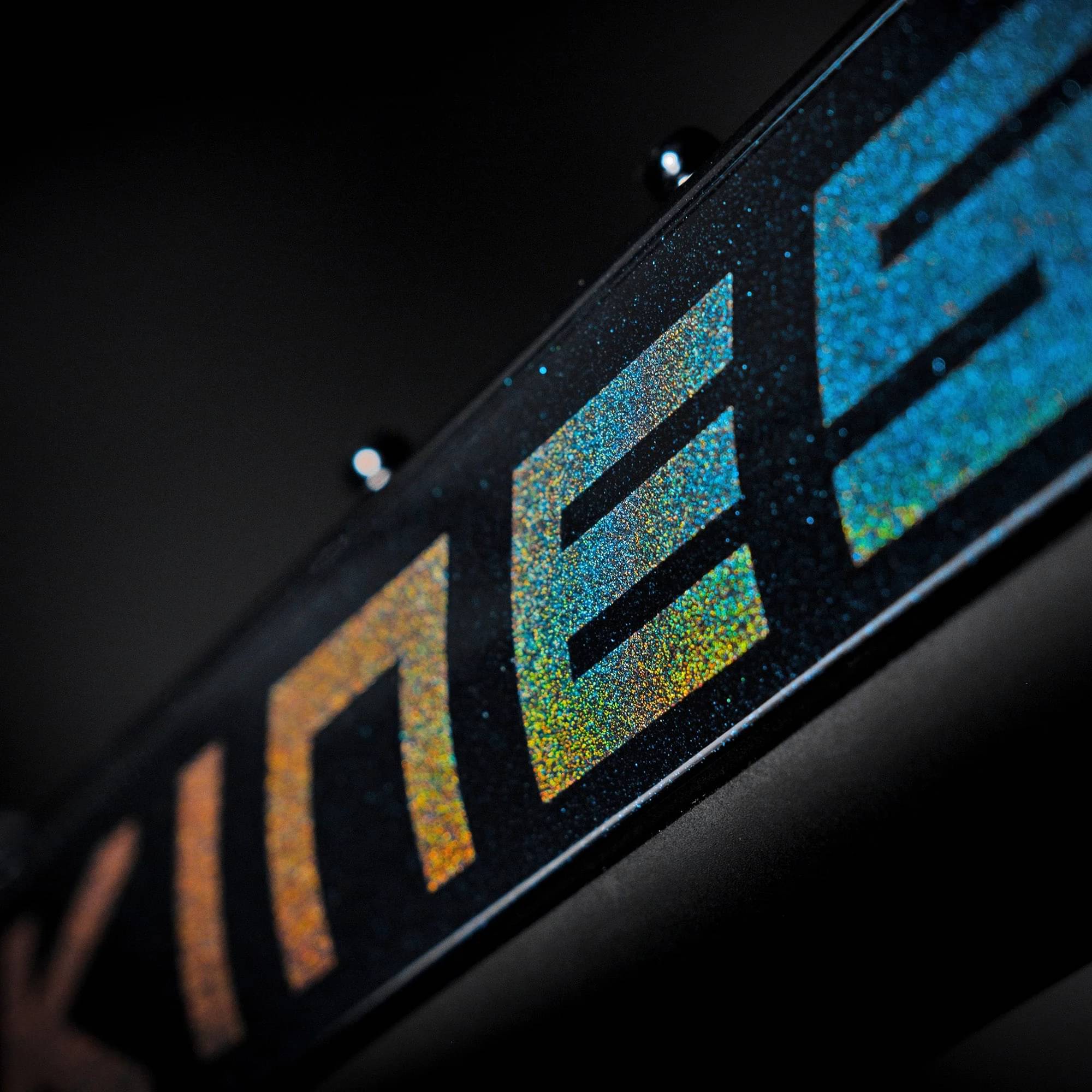

Frame
Frame

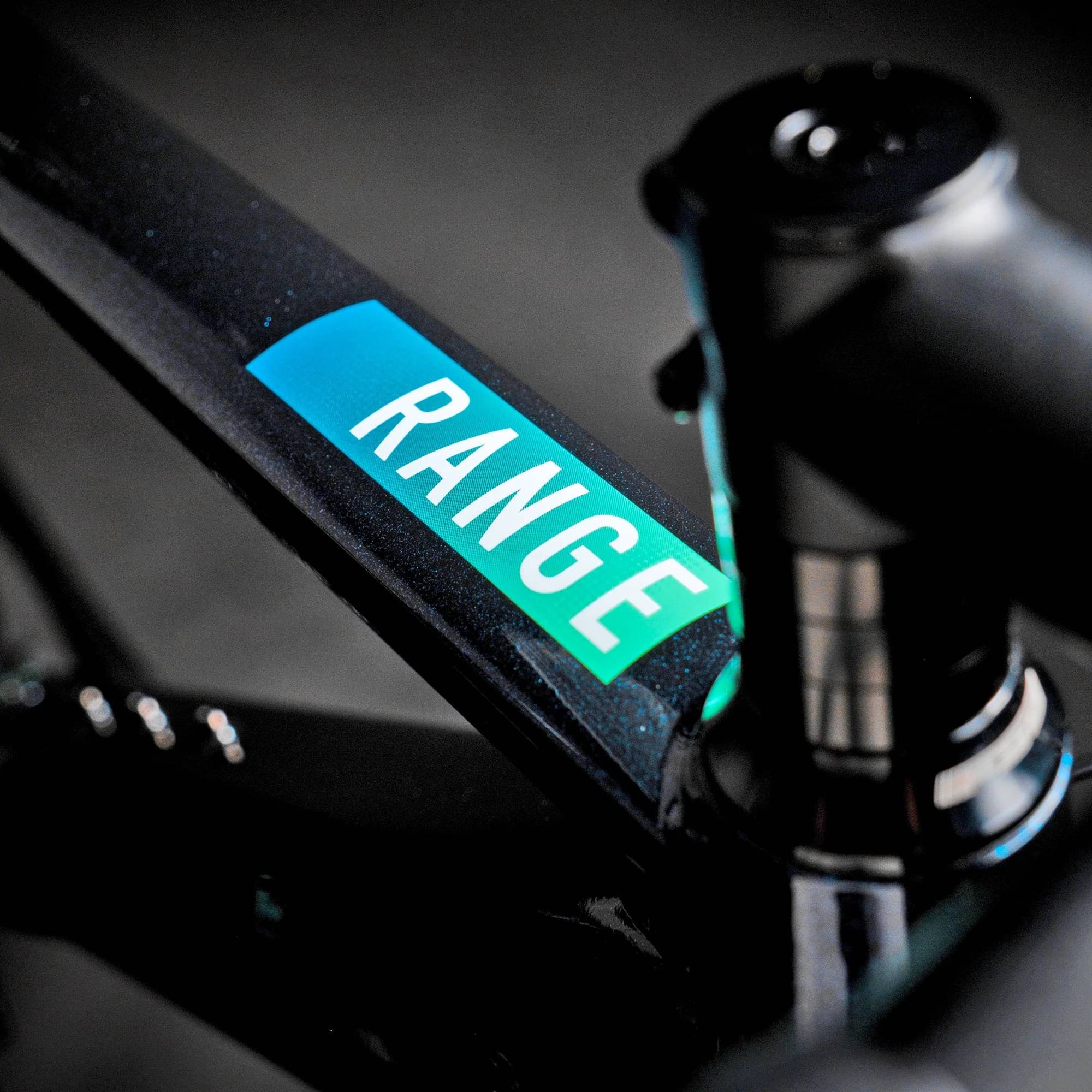

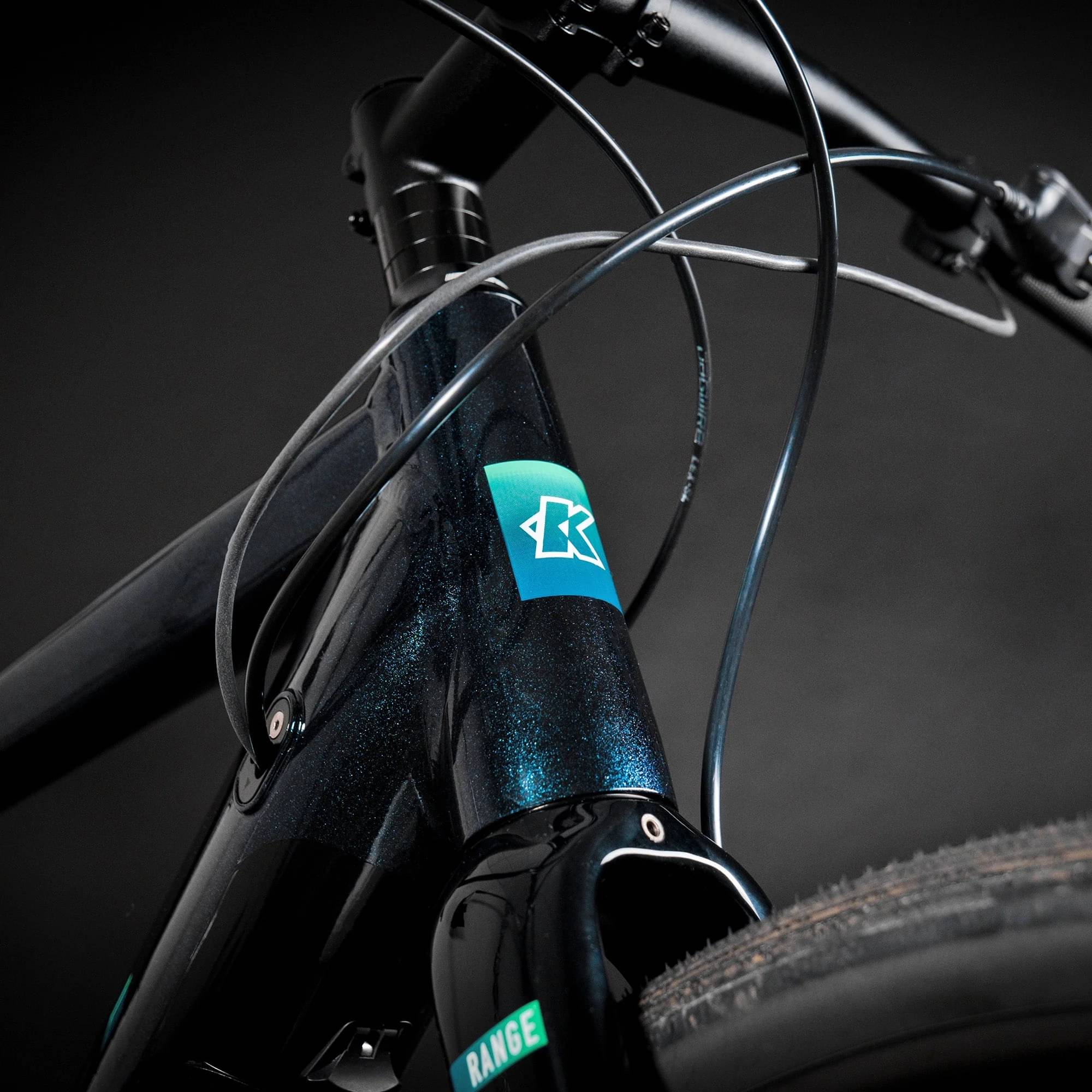

Kinesis RANGE lightweight 6061 Hydroformed Aluminium Frame
Suspension Fork
Kinesis RANGE Carbon Fork
Drivetrain

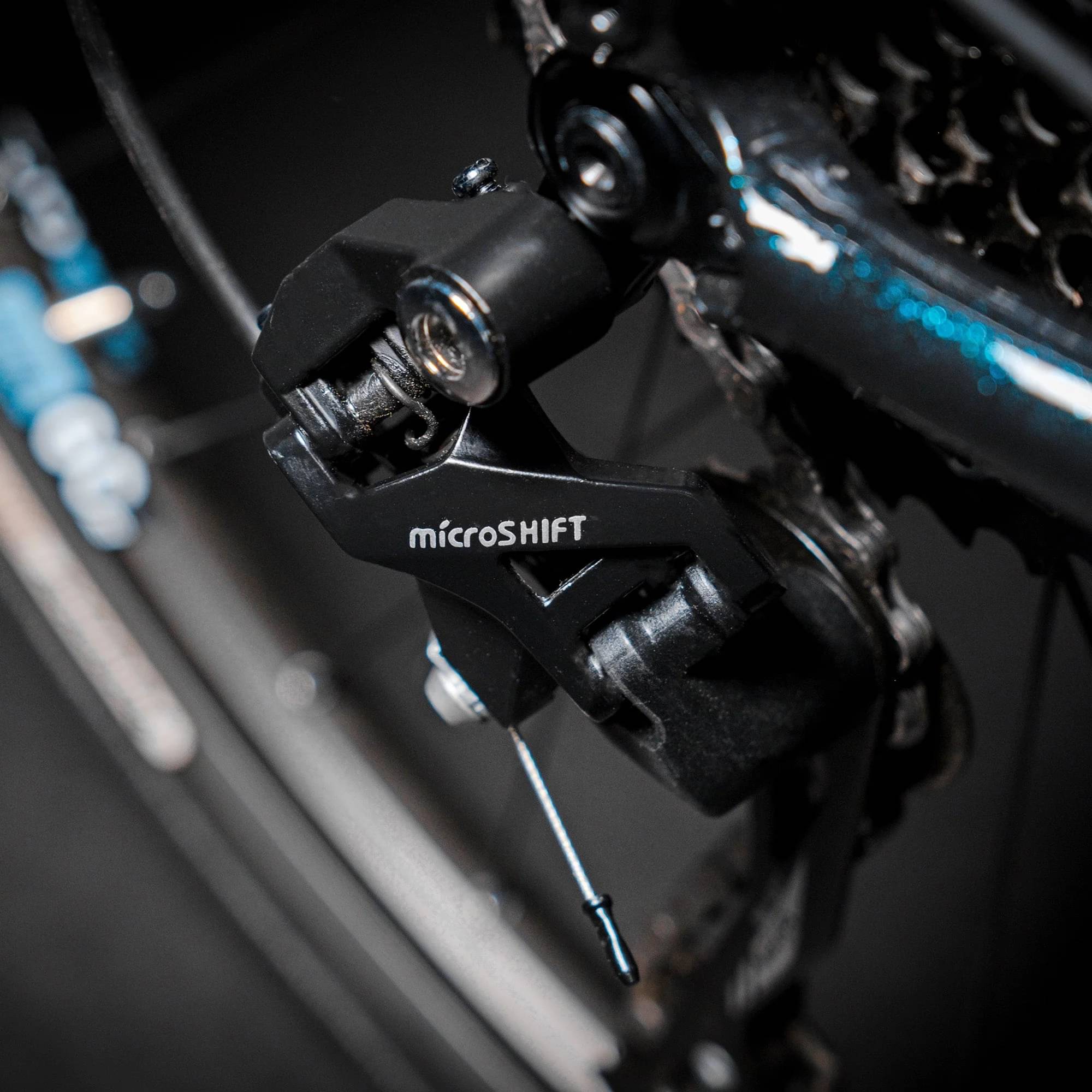

Rear Derailleur
MicroSHIFT XLE
Shift Levers
MicroSHIFT XLE 1x10spd
Cassette
MicroSHIFT 11-42
Crank

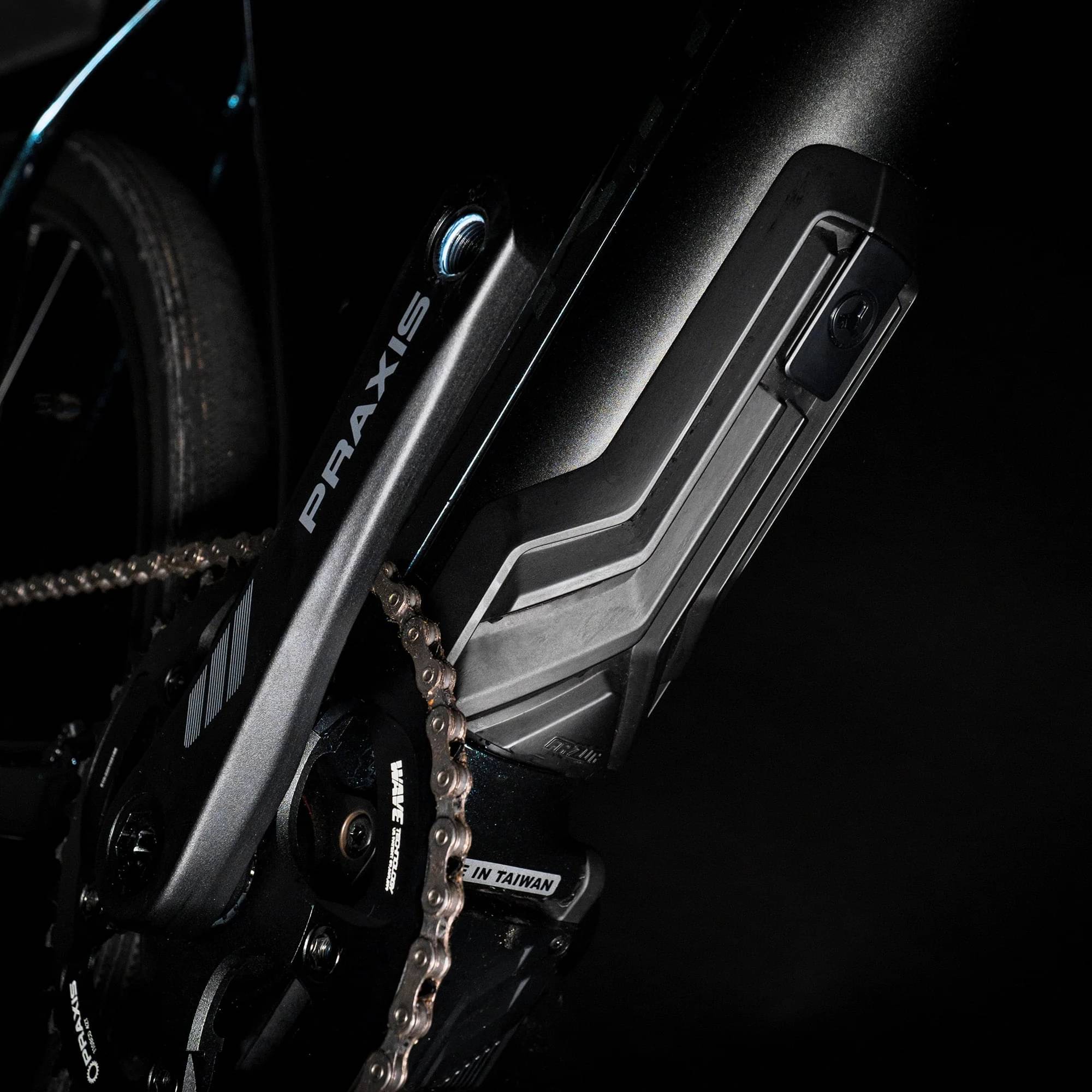

Praxis Alloy E-Crank 42t - S-M 165mm, L-XL 170mm
Wheels
Front Hub
Sector E-Specific Hubs w/ Steel Rear Axle, 5 Bearings and 4 pawl Freehub
Rear Hub
Sector E-Specific Hubs w/ Steel Rear Axle, 5 Bearings and 4 pawl Freehub
Rims

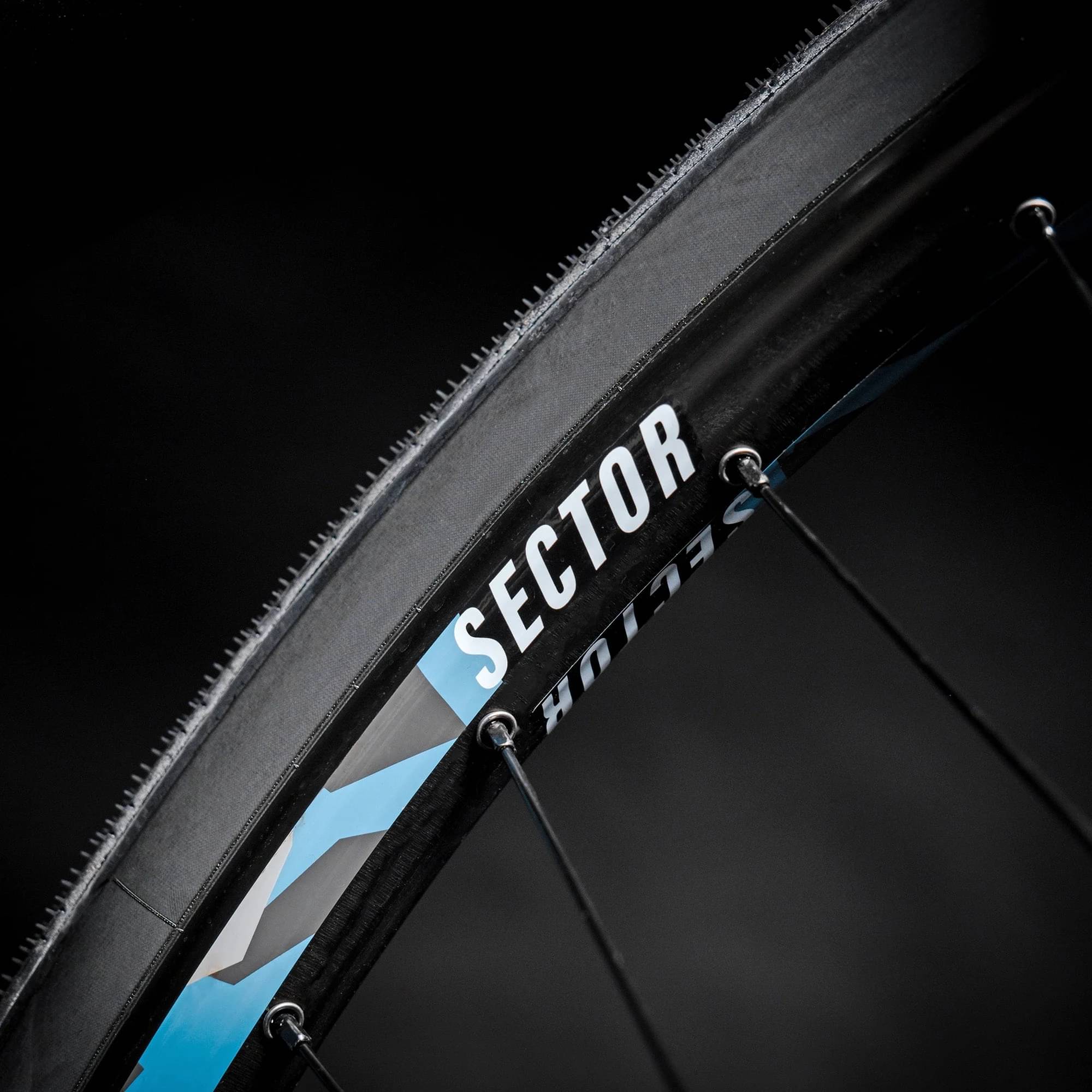

Sector GCe E-Specific Tubeless Ready Aluminium Rim. Eyeletted and Pinned
Spokes
14g Black
Tires
Panaracer Gravel SS 43c Tubeless Ready

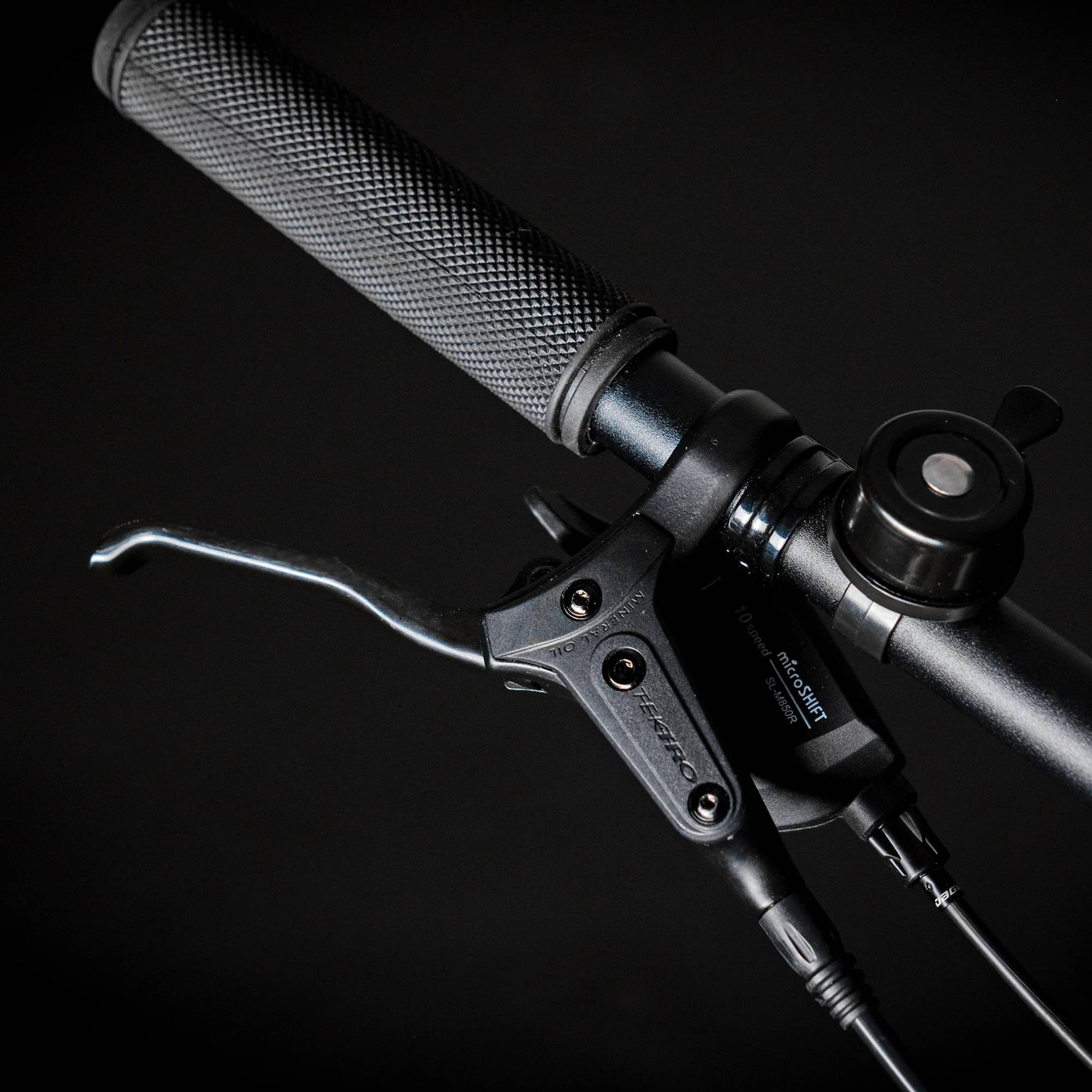

Brakes
Brakes
Tektro R280 - 160mm Front and Rear
Cockpit

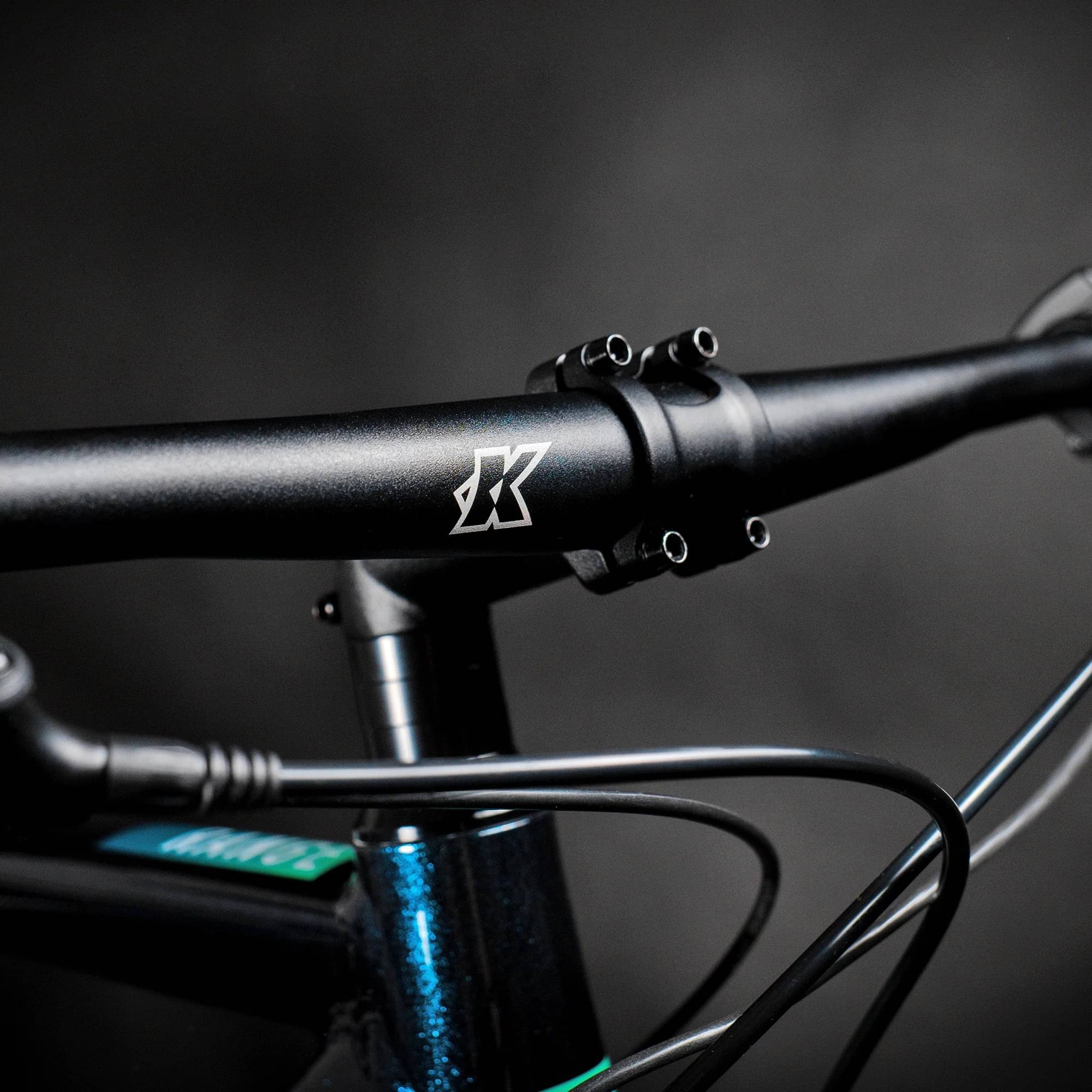

Stem
Kinesis Alloy S-M 80mm, L-XL 90mm
Handlebar
Kinesis Aluminium Bar 720mm

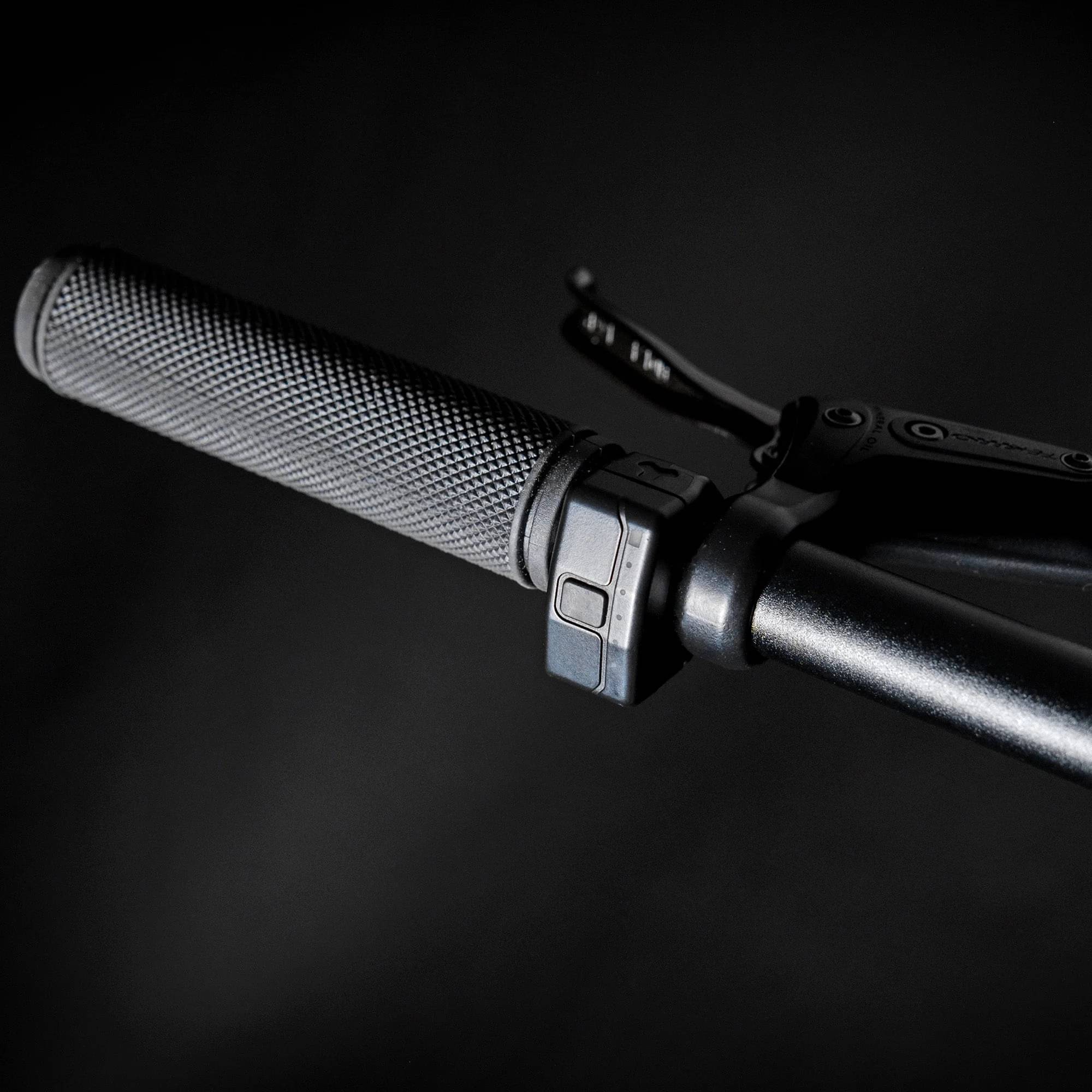

Grips
Ritchey MTN Comp
Headset
FSA no.42 Cartridge Bearing
Seat
Saddle
Selle Italia X3
Seatpost
Ritchey 2-Bolt - 350mm x 31.6 diameter / 25mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.506 mm | 1.532 mm | 1.58 mm |
| Front Center | 602.7 mm | 621 mm | 635 mm | 657.9 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 74 mm | 71 mm | 71 mm |
| Stack | 555 mm | 580 mm | 605 mm | 640 mm |
| Reach | 375 mm | 385 mm | 395 mm | 405 mm |
| Top Tube Length | 534 mm | 551 mm | 574 mm | 595 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 490 mm | 540 mm | 570 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 131 mm | 157 mm | 185 mm | 224 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1032 mm | 1050 mm | 1065 mm | 1089 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 72 mm | 70 mm |
| Standover Height | 708 mm | 745 mm | mm | 834 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
