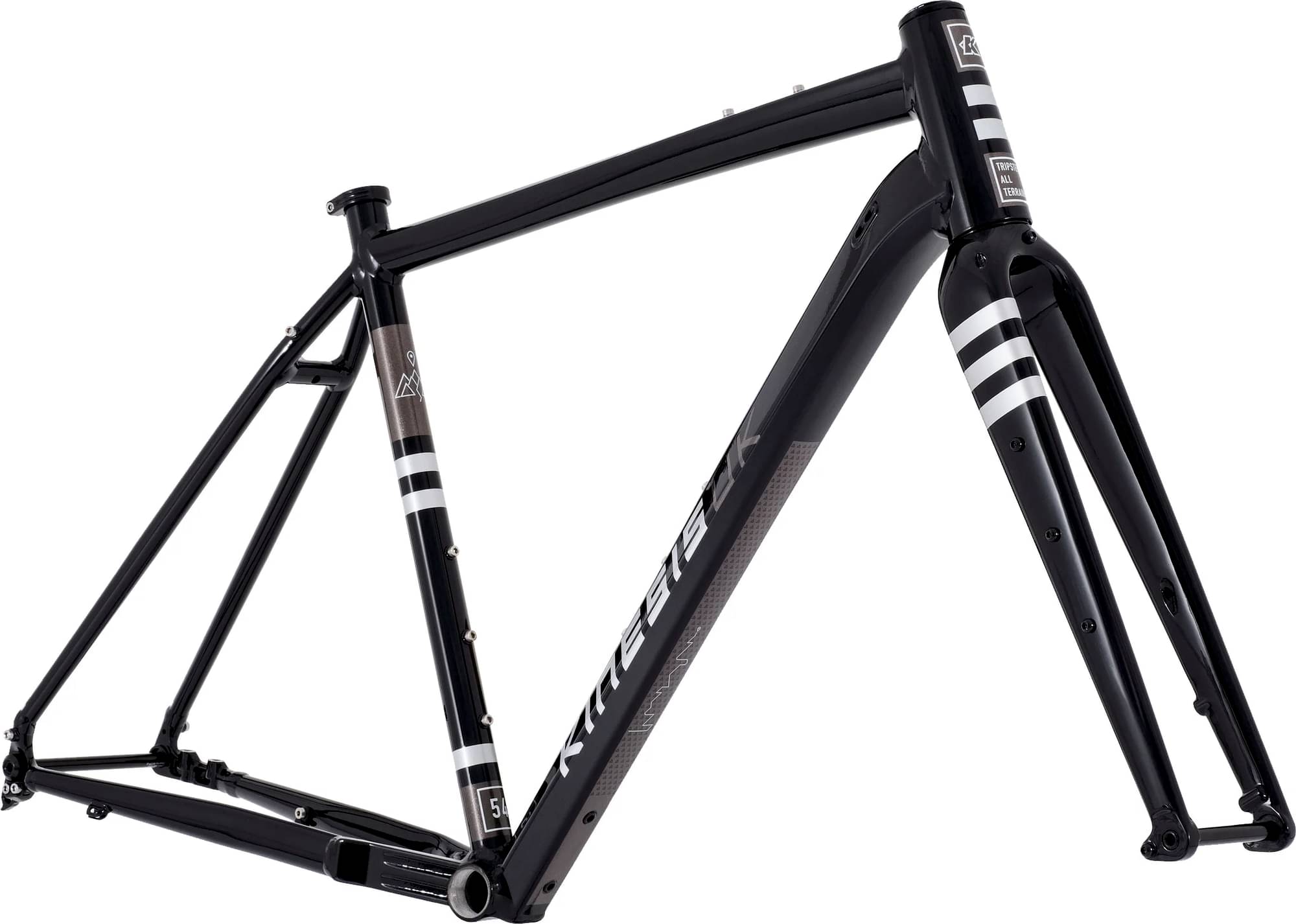

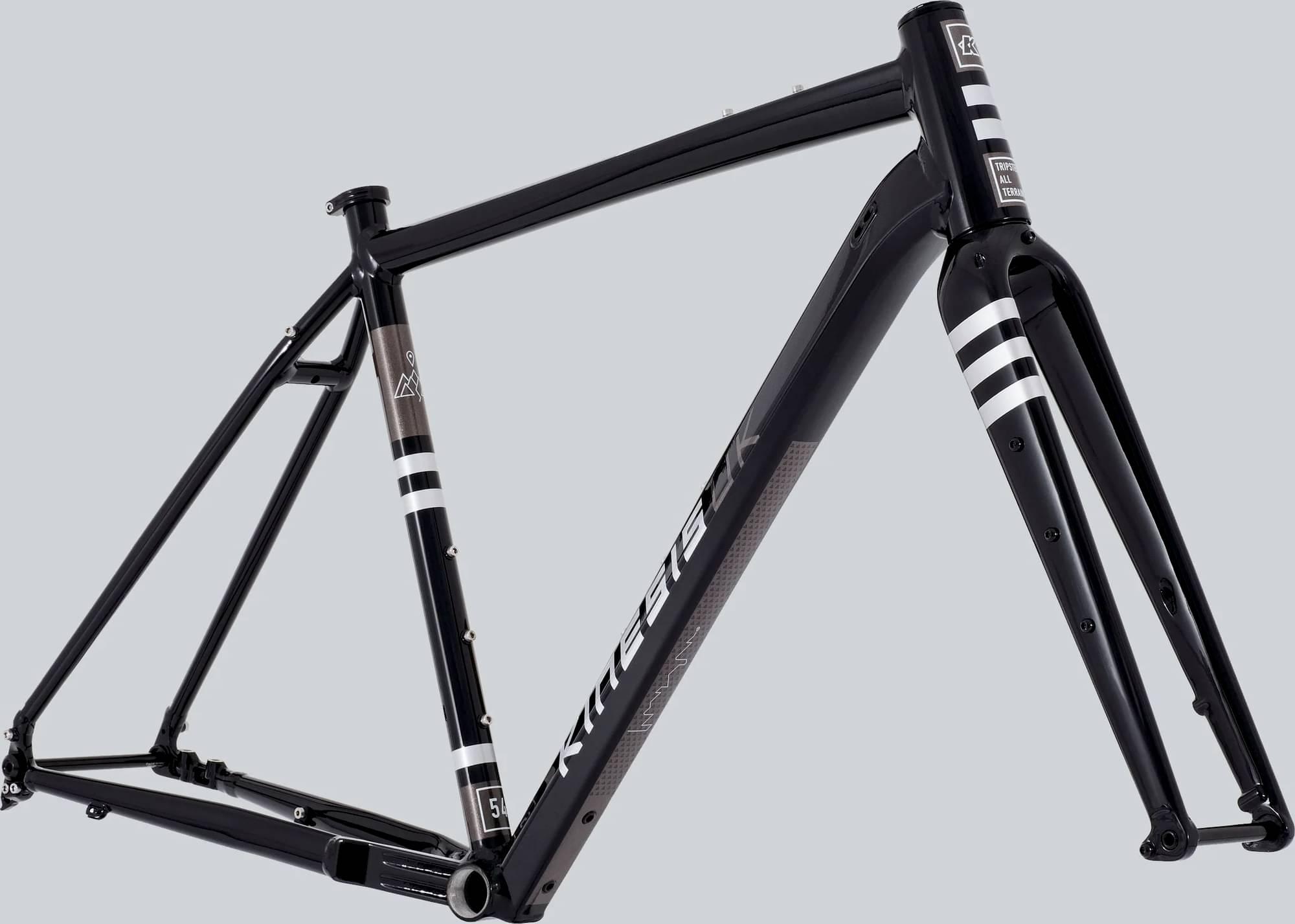

Kinesis Tripster AT Plus Frameset 2024

2024 Road

Estimate price | 1,219$

Weight | 1.69 kg

Open compare Use advisor

Bike details

Overview

Key information split into simple groups.

Frame summary

Category
- Road
- |
- Gravel
Frame Titanium
Suspension Rigid

Sizing

Recommended size guide.

XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Suspension Fork

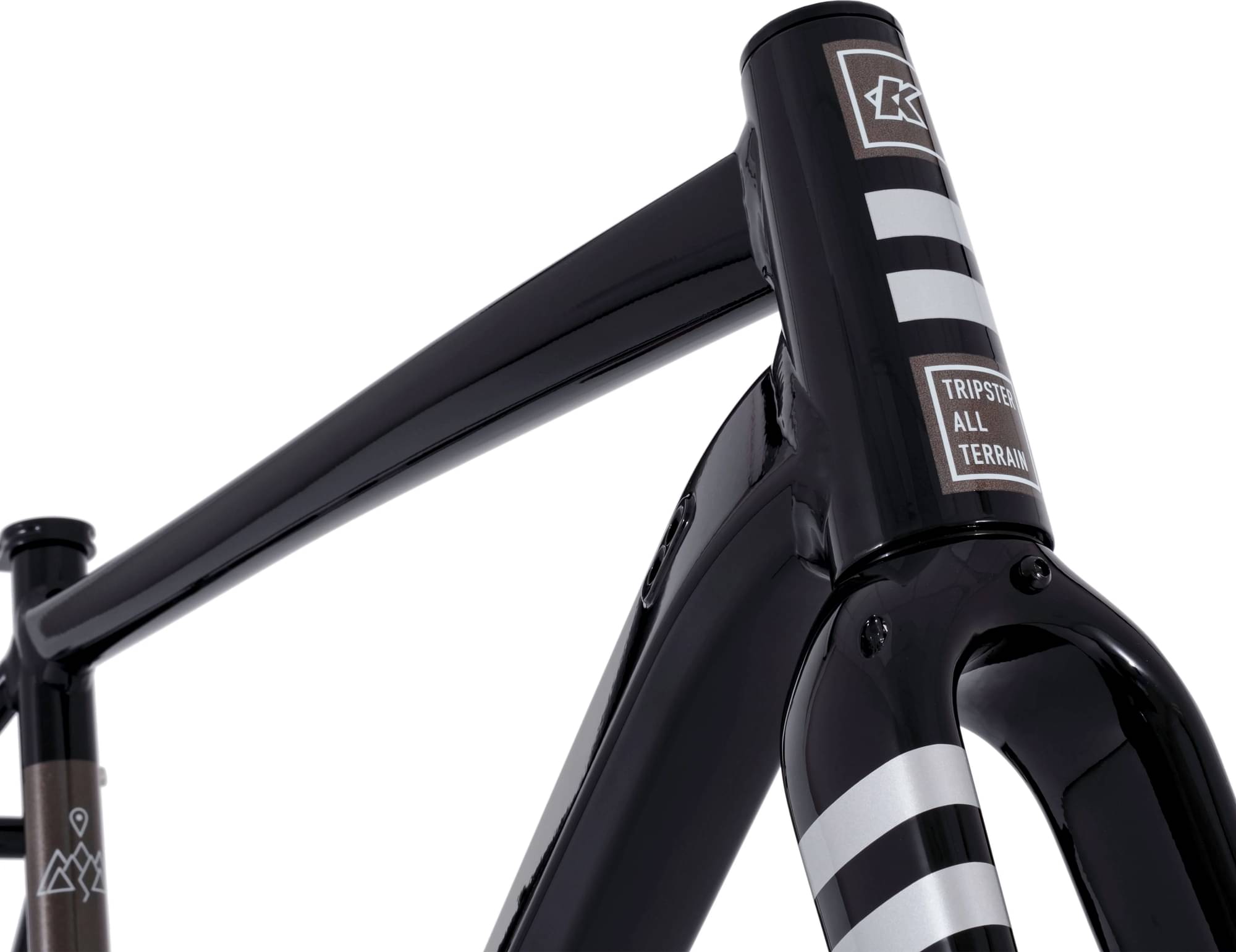

New Kinesis All Terrain fork with internal dynamo and brake routing

Drivetrain

Bottom Bracket

It also has a lower bottom bracket to lower the centre of gravity when fitted with larger tyres.

Seat

Seatpost

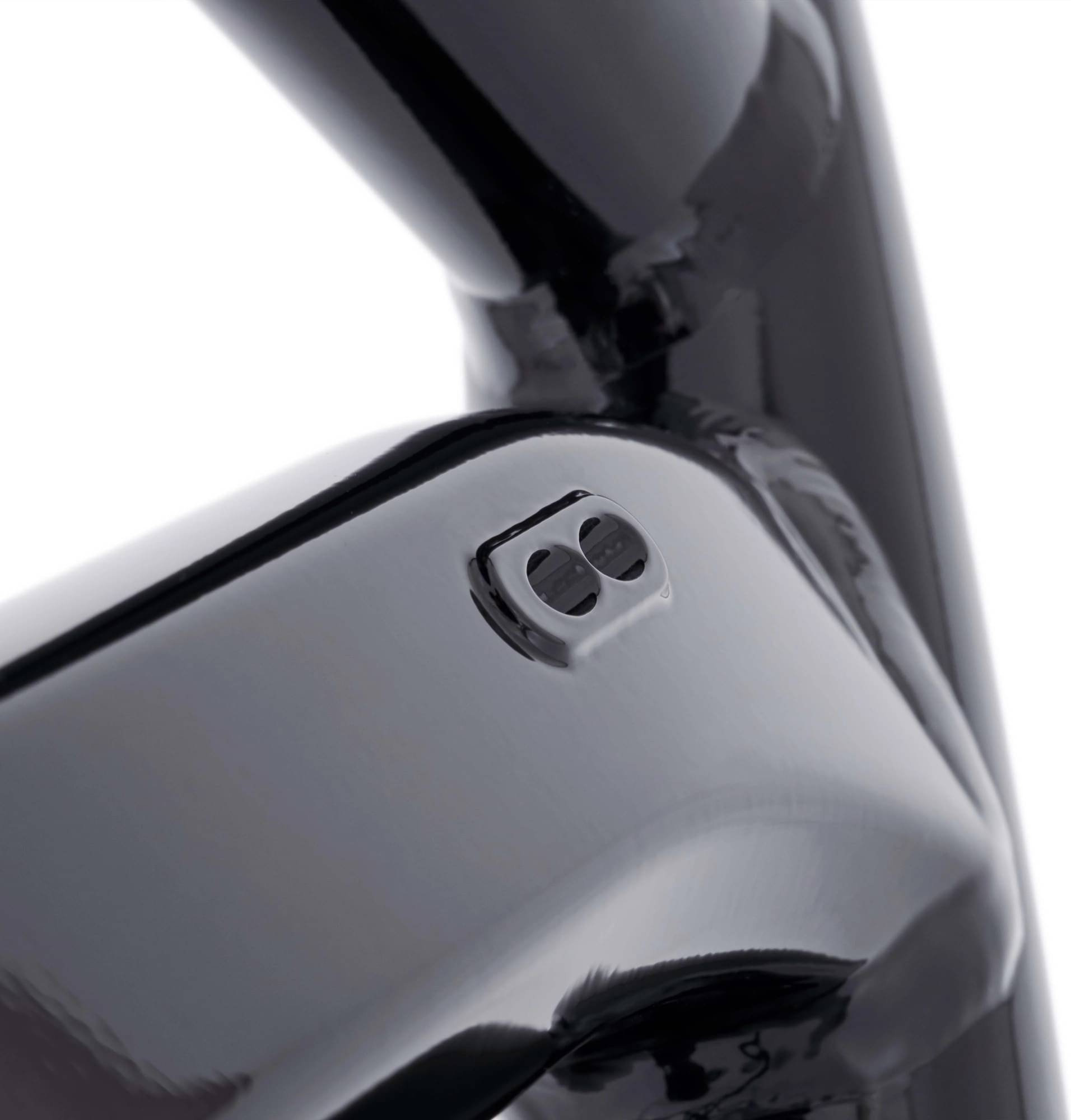

Dropper post routing

Fit data

Geometry

Numbers for sizing and ride feel.

Size	XXS	XS	SM	MD	LG	XL	XXL
Stack Reach Ratio	1.492 mm	1.481 mm	1.495 mm	1.513 mm	1.527 mm	1.541 mm	1.553 mm
Bottom Bracket Height	269 mm	272 mm	274 mm	274 mm	274 mm	277 mm	279 mm
Front Center	600 mm	607 mm	621 mm	636 mm	650	660 mm	674 mm
Rake	50 mm	50 mm	50 mm	50 mm	50 mm	50 mm	50 mm
Trail	74 mm	71 mm	71 mm	71 mm	71 mm	67 mm	67 mm
Stack	552 mm	560 mm	577 mm	596 mm	614 mm	632 mm	649 mm
Reach	370 mm	378 mm	386 mm	394 mm	402 mm	410 mm	418 mm
Top Tube Length	528 mm	539 mm	551 mm	565 mm	581 mm	597 mm	613 mm
Seat Tube Angle	74 °	74 °	74 °	74 °	73.75 °	73.5 °	73.25 °
Seat Tube Length	430 mm	460 mm	490 mm	530 mm	550 mm	570 mm	590 mm
Head Tube Angle	70 °	70.5 °	70.5 °	70.5 °	70.5 °	71 °	71 °
Chainstay Length	450 mm	450 mm	450 mm	450 mm	450 mm	450 mm	450 mm
Wheelbase	1038 mm	1045 mm	1060 mm	1075 mm	1090 mm	1100 mm	1115 mm
Bottom Bracket Drop	80 mm	77 mm	75 mm	75 mm	75 mm	72 mm	70 mm
Wheels	700	700	700	700	700	700	700
Rider Min Height	157 cm	165 cm	171 cm	177 cm	183 cm	188 cm	194 cm
Rider Max Height	167 cm	173 cm	179 cm	185 cm	191 cm	197 cm	204 cm
