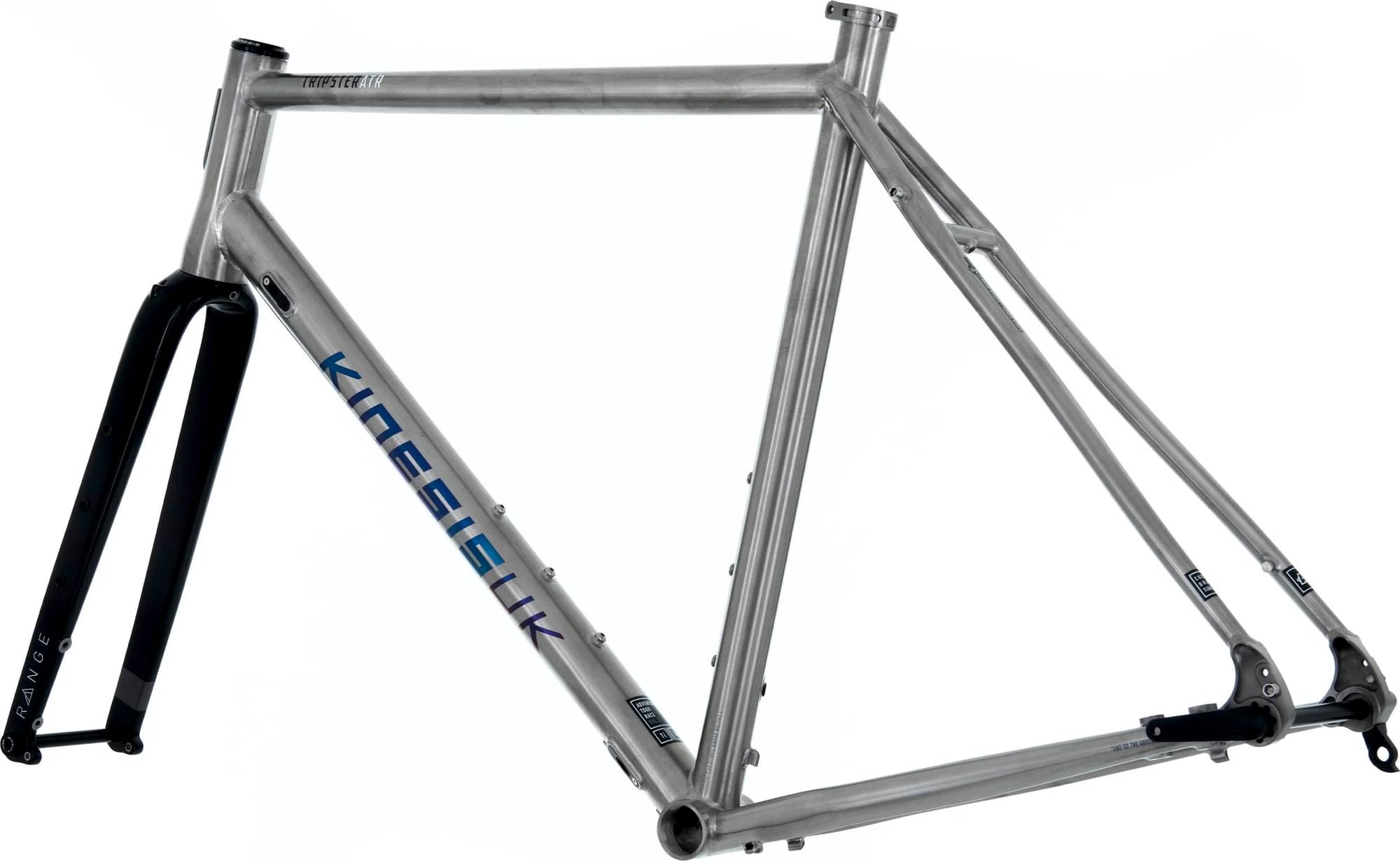

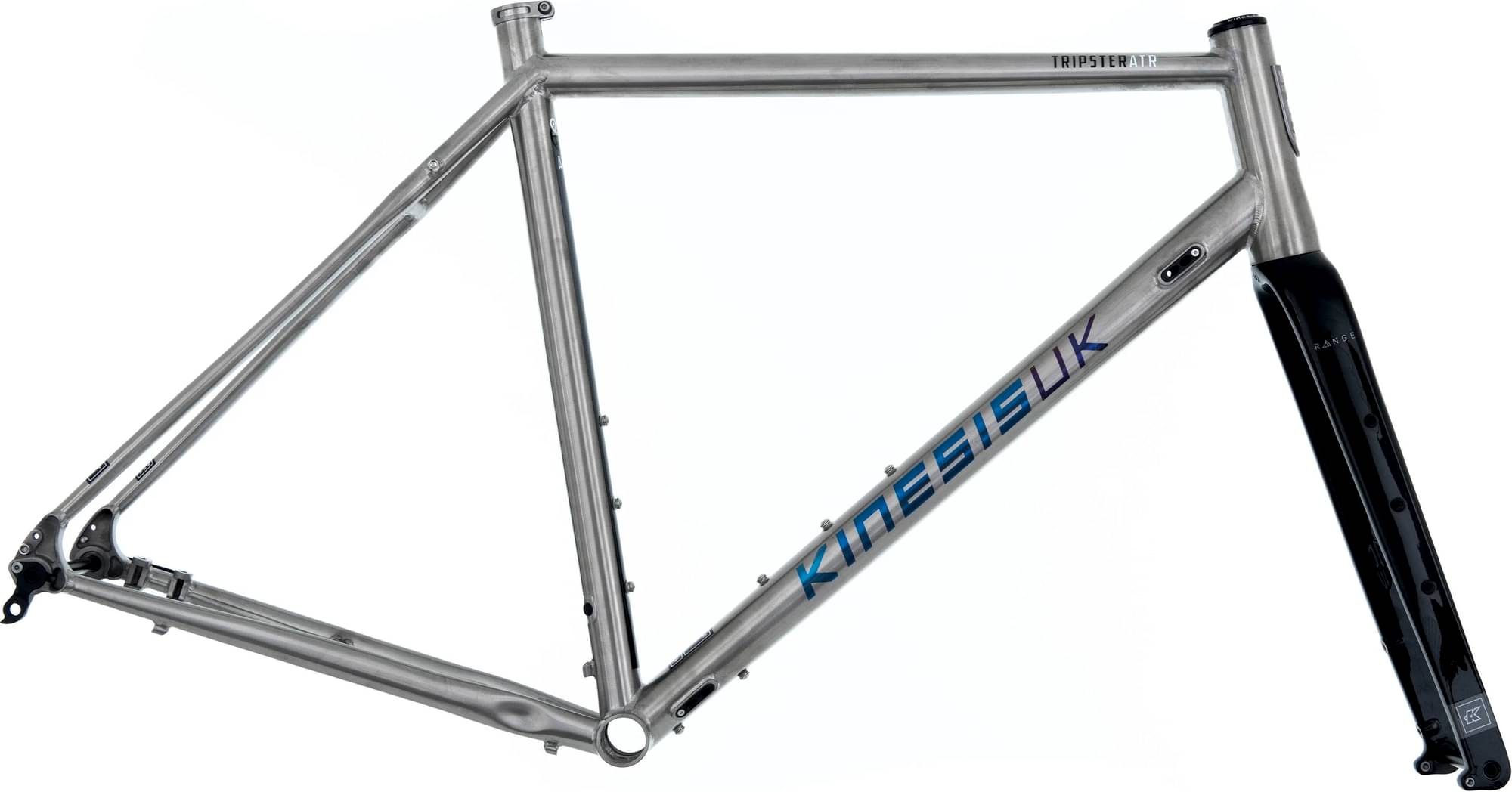

Kinesis Tripster ATR Frameset 2024
2024 Road
Estimate price |
3,252$
Weight | 1.88 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-

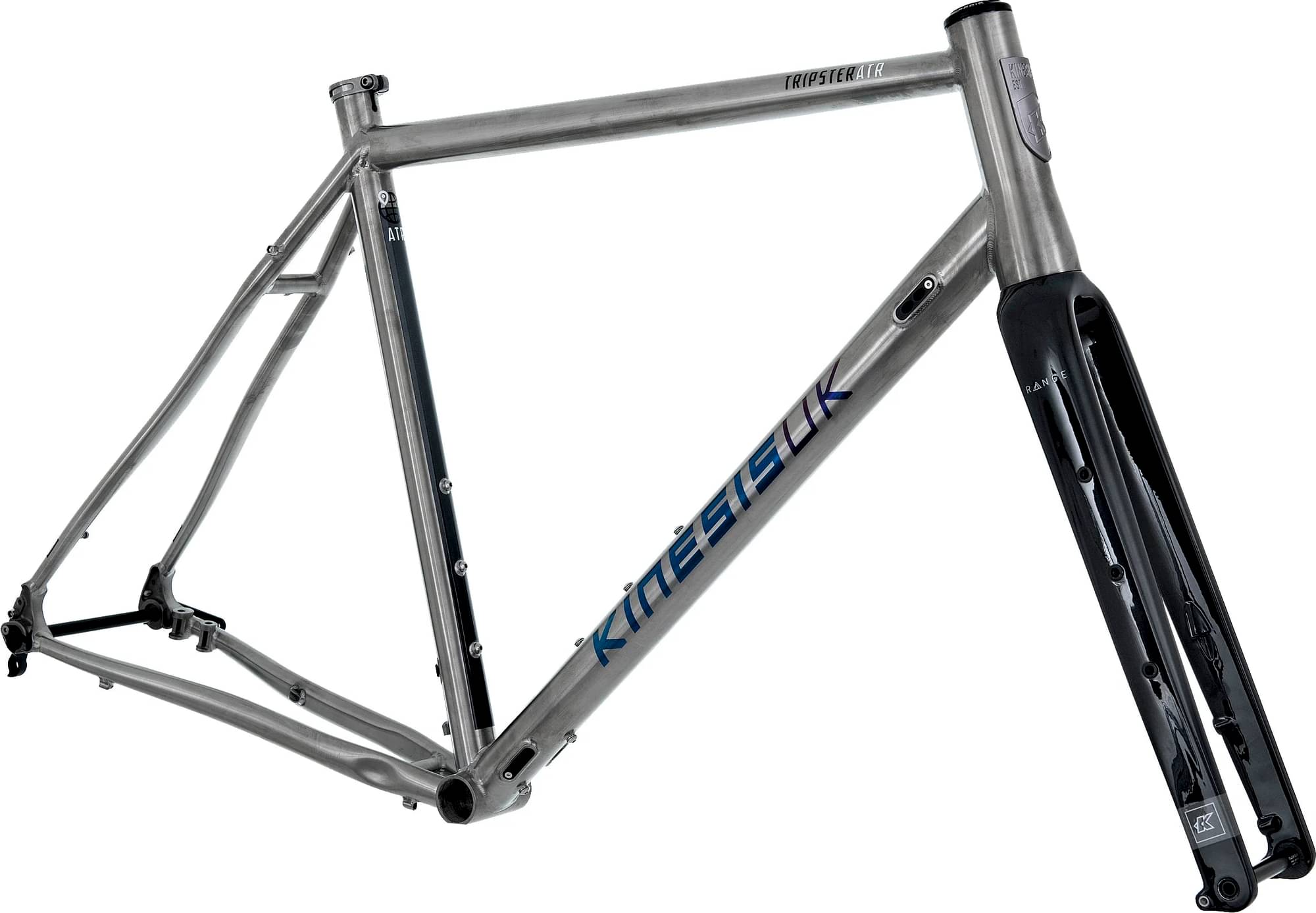

Frame Titanium -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork

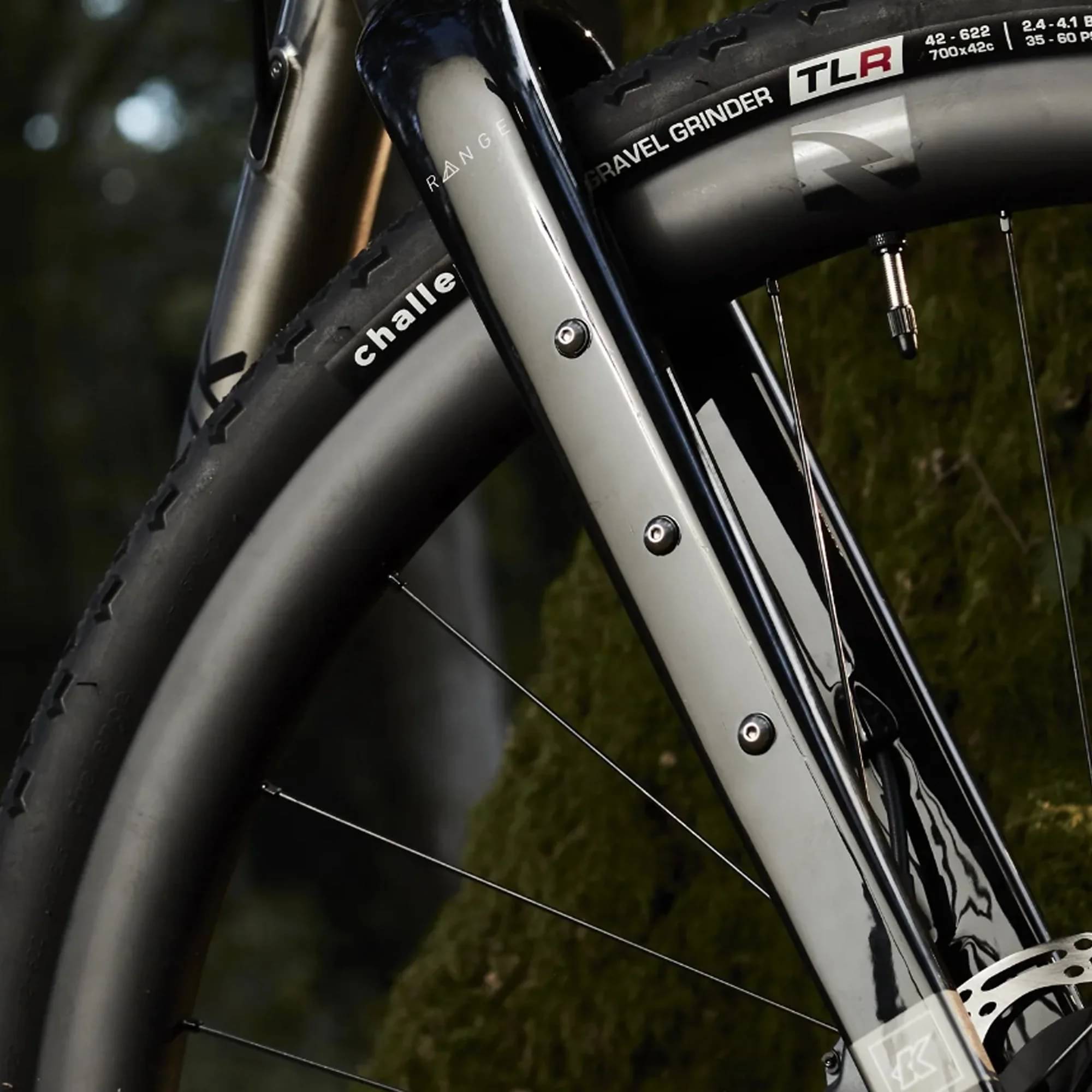

New Kinesis ‘Range’ adventure fork with cargo mounts
Drivetrain
Front Derailleur
34.9mm front mech clamp required

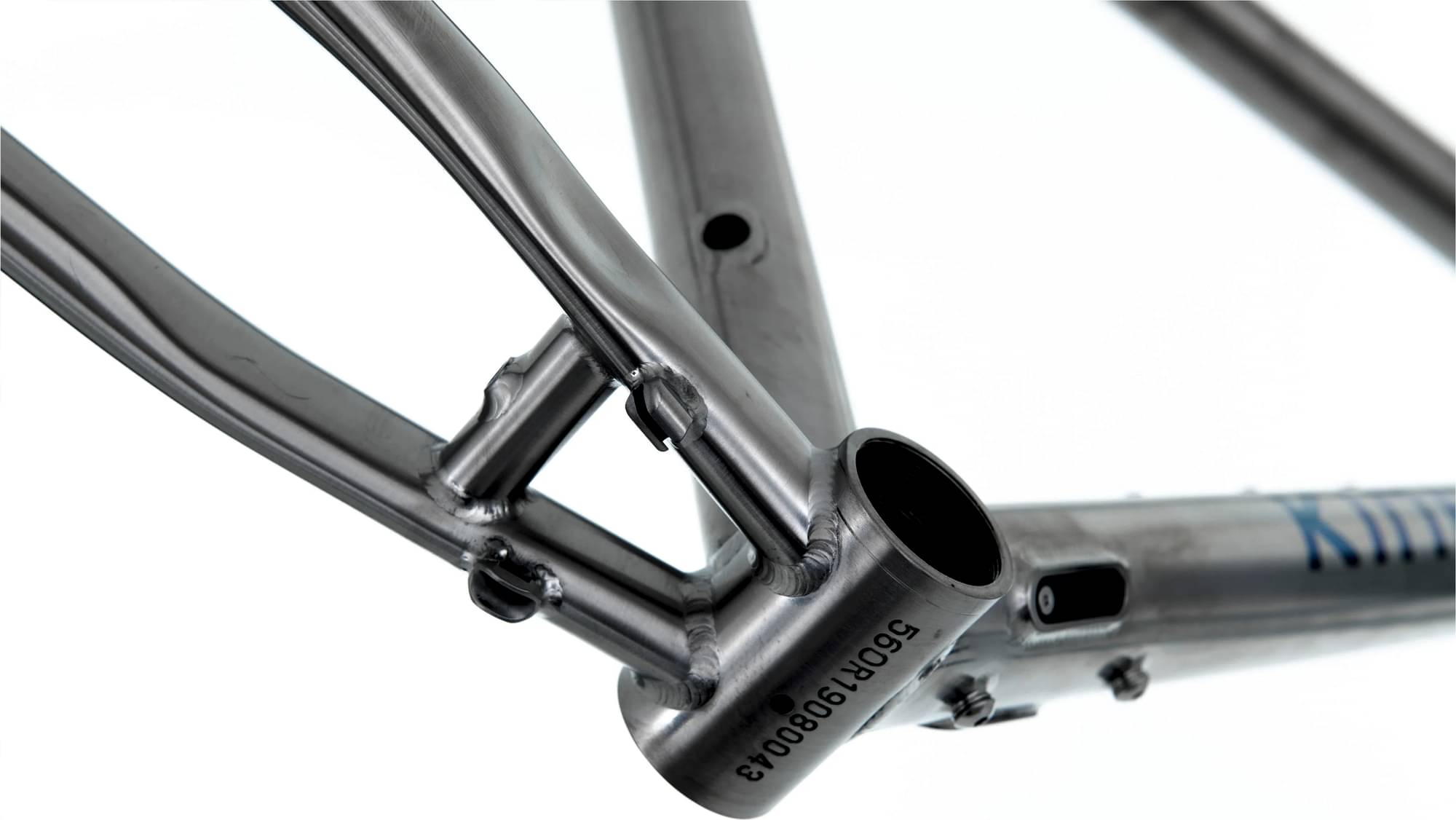

Bottom Bracket

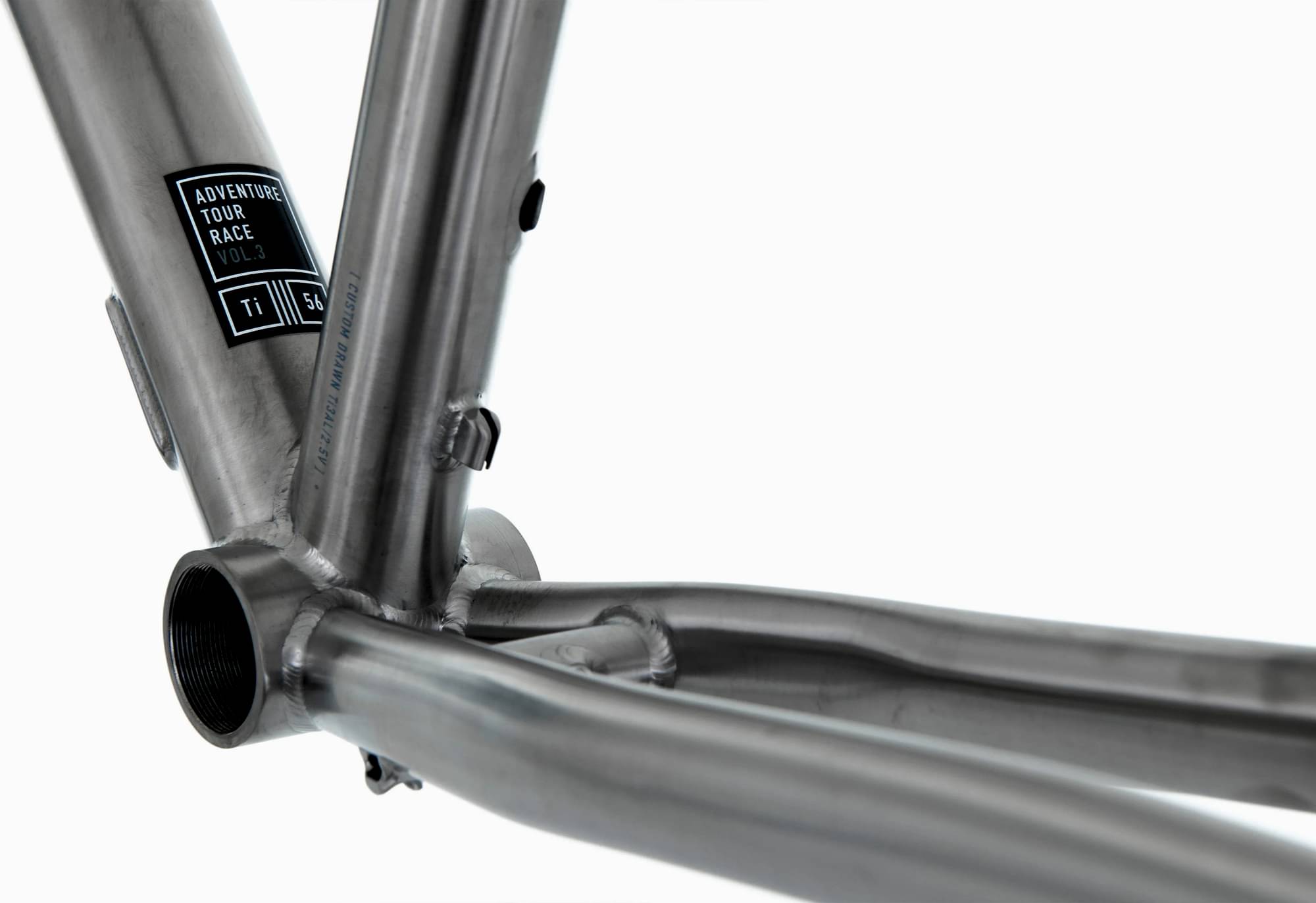

68mm threaded BB.
Cockpit
Headset
Kinesis designed tapered headset with ACB bearings.
Seat
Seatpost

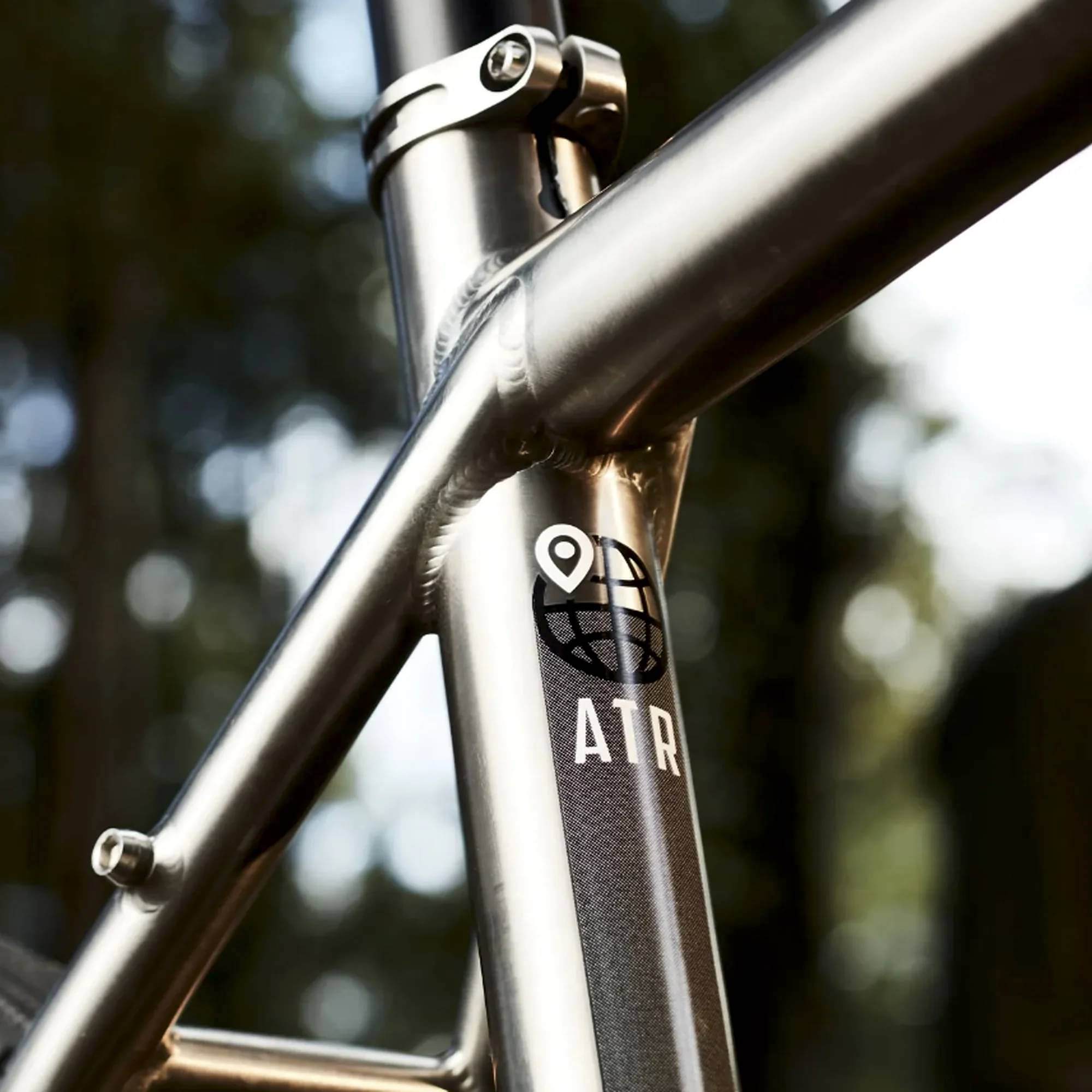

31.6mm seat post required.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL | XXXL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.452 mm | 1.459 mm | 1.468 mm | 1.484 mm | 1.504 mm | 1.523 mm | 1.541 mm | 1.566 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 587 mm | 595.12 mm | 603.63 mm | 617.87 mm | 631.13 mm | 644.39 mm | 652.17 mm | 663.3 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 77 mm | 77 mm | 74 mm | 74 mm | 75 mm | 74 mm | 70 mm | 70 mm |
| Stack | 530 mm | 540 mm | 555 mm | 573 mm | 591 mm | 609 mm | 627 mm | 645 mm |
| Reach | 365 mm | 370 mm | 378 mm | 386 mm | 393 mm | 400 mm | 407 mm | 412 mm |
| Top Tube Length | 517 mm | 525 mm | 537 mm | 553 mm | 565 mm | 580 mm | 595 mm | 609 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 73.75 ° | 73.75 ° | 73.75 ° | 73.75 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 540 mm | 560 mm | 580 mm | 600 mm | 620 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 114 mm | 124 mm | 138 mm | 157 mm | 176 mm | 195 mm | 212 mm | 231 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1017 mm | 1025 mm | 1034 mm | 1048 mm | 1061 mm | 1075 mm | 1082 mm | 1093 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
