Knolly Cache Titanium Shimano GRX 600 2X 2024
2024 Road
Estimate price |
4,995$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
52cm
157cm - 162cm
54cm
165cm - 170cm
56cm
172cm - 177cm
58cm
180cm - 185cm
60cm
185cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork

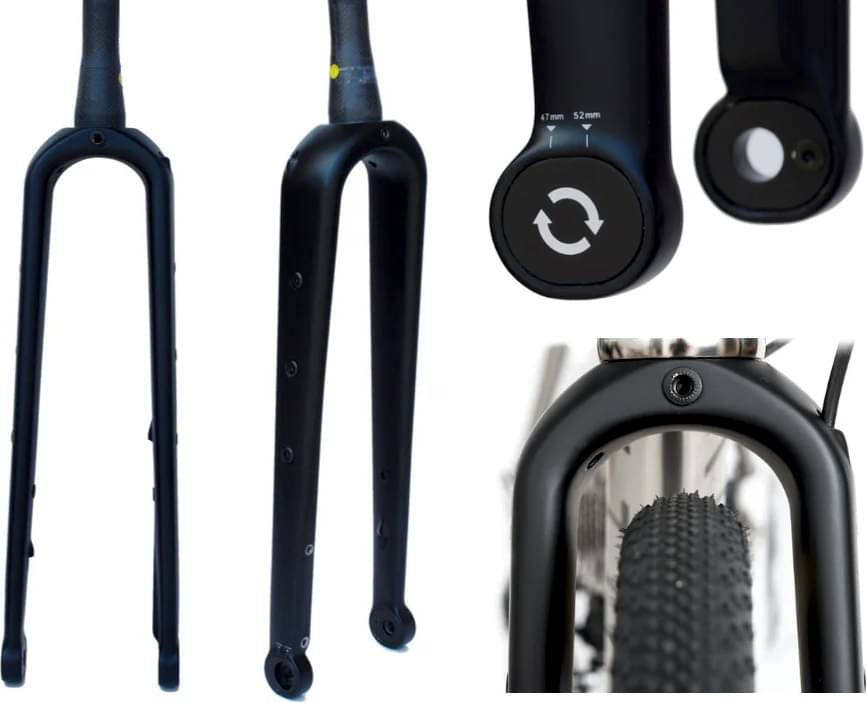

Carbon Adventure 700x55c / 650b x 2.4, Offset: 47mm / 52mm - Adjustable, triple fender/rack/cage mounts, M6 front of crown mount, internal dynamo routing, 398 axle to crown, 12x100mm
Drivetrain
Rear Derailleur
Shimano GRX 810 2x11spd, Shadow Plus
Front Derailleur
Shimano GRX 810 2x11spd (Braze-On Front)
Shift Levers
Shimano GRX 600 Flat Mount Brakes
Cassette
Shimano 105 HG700 11spd, 11-34T
Crank
Shimano GRX 600 46-30T, 172.5mm
Bottom Bracket
Shimano 68mm BSA
Chain
Shimano HG601 11spd
Wheels
Rims
DT Swiss G1800 SPLINE DB 25 24h 12x100 / 12x142
Tires
Front: Maxxis Ravager EXO 700x40c, Rear: Maxxis Rambler EXO 700x40c
Brakes
Brakes
Shimano GRX 600
Cockpit
Stem
Easton EA50 AX 31.8 (60-80cm)
Handlebar
Easton EA50 AX 31.8 (42-46cm)
Grips
Easton Bar Tape Pinline Logo Black
Headset
FSA Orbit ZS44/56
Seat
Saddle
SDG Duster P
Seatpost
RaceFace Ride XC 31.6x375mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.451 mm | 1.457 mm | 1.466 mm | 1.472 mm | 1.478 mm | 1.484 mm | 1.471 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 612 mm | 625 mm | 633 mm | 646 mm | 659 mm | 671 mm | 689 mm |
| Rake | 48 mm | 48 mm | 43 mm | 43 mm | 43 mm | 43 mm | 42 mm |
| Trail | 73 mm | 73 mm | 78 mm | 78 mm | 78 mm | 78 mm | 79 mm |
| Stack | 558.5 mm | 572.7 mm | 588 mm | 602 mm | 616.5 mm | 630.5 mm | 644.5 mm |
| Reach | 385 mm | 393 mm | 401 mm | 409 mm | 417 mm | 425 mm | 438 mm |
| Top Tube Length | 545.5 mm | 557.5 mm | 569.5 mm | 581.5 mm | 593.5 mm | 606 mm | 622 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 438 mm | 464 mm | 492 mm | 520 mm | 548 mm | 576 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 128 mm | 143 mm | 157 mm | 172 mm | 187 mm | 202 mm | 217 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1022 mm | 1035 mm | 1043 mm | 1056 mm | 1069 mm | 1082 mm | 1100 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 719 mm | 735 mm | 751 mm | 772 mm | 786 mm | 810 mm | 824 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
