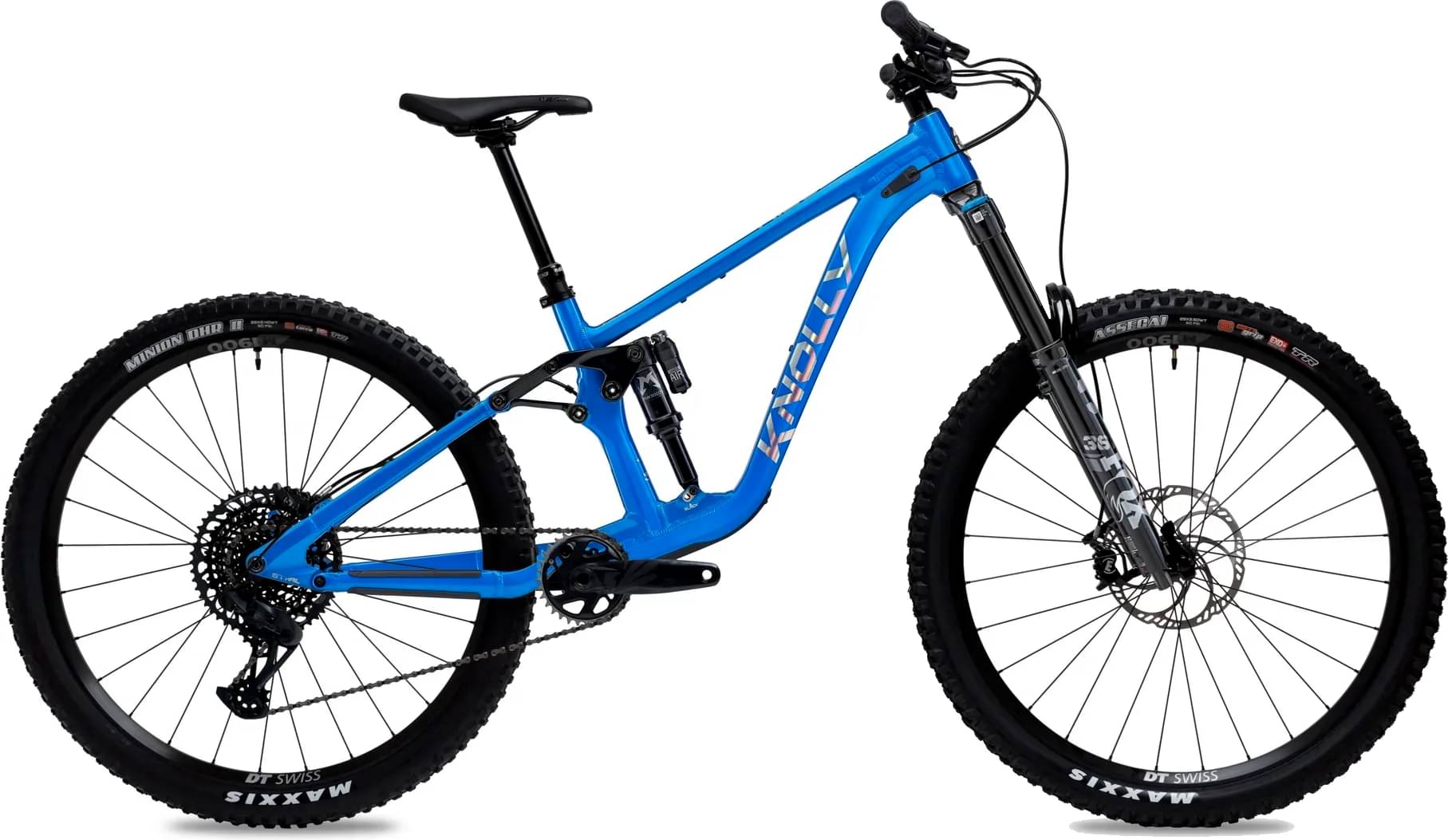

Knolly Chilcotin 155 Eagle 90 Transmission 2025
2025 Mountain
Estimate price |
6,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 180mm -
Travel Rear 155mm -
Fork RockShox Lyrik Ultimate
-
Groupset Eagle 90 Transmission -
Suspension Full -
Drivetrain 1 × 12 -
Brakes SRAM Maven Silver Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

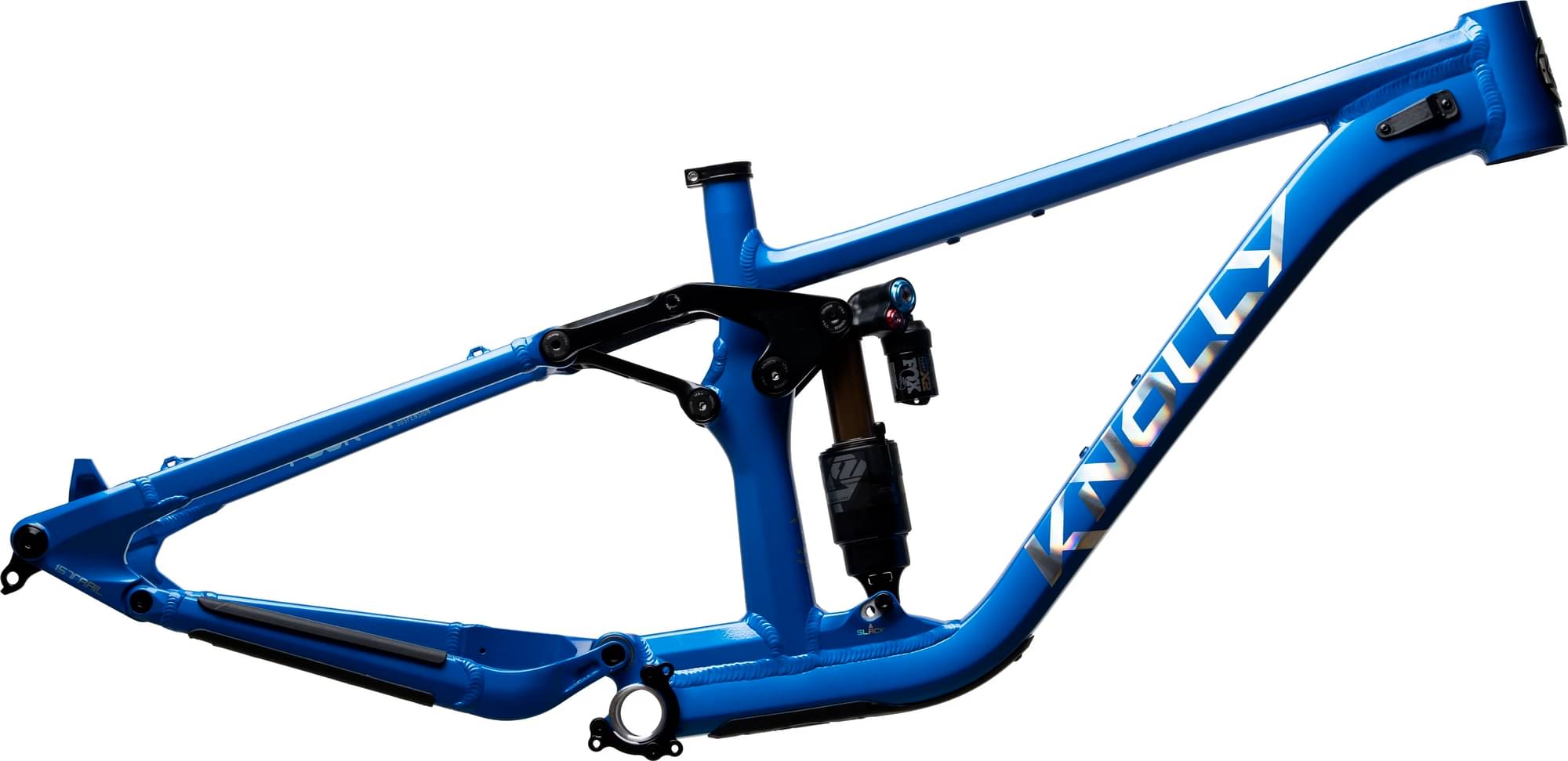

Frame
Frame
6066 Aluminum
Suspension Fork
RockShox Lyrik Ultimate 29" D2 160mm, 44mm offset
Rear Shock
RockShox Vivid Ultimate C1 205x60
Drivetrain
Rear Derailleur
SRAM Eagle 90 Transmission
Shift Levers
SRAM Eagle 90 Transmission
Cassette
SRAM XS-1275 Transmission 10-52T
Crank
SRAM Eagle 90 Transmission 32T, 170mm
Bottom Bracket
SRAM DUB BSA 73mm Wide
Chain
GX Eagle Transmission
Wheels
Rims
DT Swiss M1900 SPLINE 28h Straight-Pull (XD) OR Spank 359 HEX J-Bend 32h (XD)
Tires
Front: Maxxis Assegai 29" 2.5WT 3C MaxxGrip EXO+, Rear: Maxxis DHR2 29" 2.4" 3C MaxxTerra EXO+
Brakes
Brakes
SRAM Maven Silver
Cockpit
Stem
RaceFace Aeffect R 35mm x 40mm
Handlebar
RaceFace Aeffect R 35x780mm, 20mm Rise
Grips
Spank Spoon
Headset
Cane Creek 50 ZS44/56
Seat
Saddle
SDG Bel-Air V3
Seatpost
SDG Tellis (S2: 170mm, S3-S5: 200mm), 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S2 | S2 | S3 | S3 | S4 | S4 | S5 | S5 |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.34 mm | 1.285 mm | 1.285 mm | 1.234 mm | 1.234 mm | 1.193 mm | 1.193 mm |
| Bottom Bracket Height | 346 mm | 336 mm | 346 mm | 336 mm | 346 mm | 336 mm | 346 mm | 336 mm |
| Front Center | 787 mm | 788 mm | 816 mm | 817 mm | 844 mm | 845 mm | 874 mm | 875 mm |
| Rake | 41 mm | 40 mm | 41 mm | 40 mm | 40 mm | 39 mm | 41 mm | 40 mm |
| Trail | 131 mm | 136 mm | 131 mm | 136 mm | 132 mm | 137 mm | 131 mm | 136 mm |
| Stack | 619 mm | 619 mm | 626 mm | 626 mm | 633 mm | 633 mm | 642 mm | 642 mm |
| Reach | 462 mm | 462 mm | 487 mm | 487 mm | 513 mm | 513 mm | 538 mm | 538 mm |
| Top Tube Length | 596 mm | 596 mm | 623 mm | 623 mm | 650 | 650 | 677 mm | 677 mm |
| Seat Tube Angle | 78 ° | 77.5 ° | 78 ° | 77.5 ° | 78 ° | 77.5 ° | 78 ° | 77.5 ° |
| Seat Tube Length | 350 mm | 350 mm | 390 mm | 390 mm | 440 mm | 440 mm | 490 mm | 490 mm |
| Head Tube Angle | 64.75 ° | 64.25 ° | 64.75 ° | 64.25 ° | 64.75 ° | 64.25 ° | 64.75 ° | 64.25 ° |
| Head Tube Length | 100 mm | 100 mm | 108 mm | 108 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 438 mm | 438 mm | 442 mm | 442 mm | 446 mm | 446 mm | 450 mm | 450 mm |
| Wheelbase | 1224 mm | 1224 mm | 1257 mm | 1257 mm | 1289 mm | 1289 mm | 1323 mm | 1323 mm |
| Bottom Bracket Drop | 26 mm | 36 mm | 26 mm | 36 mm | 26 mm | 36 mm | 26 mm | 36 mm |
| Standover Height | 721 mm | 721 mm | 730 mm | 730 mm | 745 mm | 745 mm | 769 mm | 769 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
