Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 150mm -
Travel Rear 160mm -
Fork Fox Float 32
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Scandium 69 Butted Aluminum 100 -160mm travel
Suspension Fork
FOX 32 Talas FIT RL 150mm w/15mm TA
Rear Shock
Fox Float RP23 w/BSD
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow SGS
Front Derailleur
Shimano Deore XT
Shift Levers
Shimano SLX
Cassette
Shimano HG81 11-36 10 spd
Crank
38/26
Bottom Bracket
Shimano Deore XT
Chain
Shimano HG74
Pedals
Shimano M530 Clipless
Wheels
Front Hub
Easton Haven Disc Wheelset
Rear Hub
Easton Haven Disc Wheelset (142x12mm)
Rims
Easton Haven Disc Wheelset
Spokes
Easton Haven Disc Wheelset
Tires
Maxxis Ardent 26x2.25 Kevlar
Brakes
Brakes
Avid Elixir 7
Brake Levers
Avid Elixir 7
Disk Rotors
Avid HS1 180mm
Cockpit
Stem
Kona XC/Road
Handlebar
Kona XC/BC Primo Riser
Grips
Kona Race Light LOG
Headset
FSA No.57E
Seat
Saddle
WTB Valcon Race
Seatpost
Kona Primo Double Clamp w/offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 16" | 17" | 18" | 19" | 20" | 22" |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.35 mm | 1.31 mm | 1.29 mm | 1.26 mm | 1.23 mm | 1.17 mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm | 355 mm | 355 mm | 355 mm | 355 mm |
| Front Center | 685 mm | 705 mm | 720 mm | 735 mm | 745 mm | 760 mm | 785 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Stack | 569 mm | 574 mm | 574 mm | 579 mm | 579 mm | 584 mm | 584 mm |
| Reach | 404 mm | 424 mm | 439 mm | 449 mm | 459 mm | 474 mm | 499 mm |
| Top Tube Length | 559 mm | 584 mm | 594 mm | 609 mm | 619 mm | 634 mm | 659 mm |
| Seat Tube Angle | 74.8 ° | 74.8 ° | 74.8 ° | 74.8 ° | 74.8 ° | 74.8 ° | 74.8 ° |
| Seat Tube Length | 365 mm | 405 mm | 430 mm | 455 mm | 485 mm | 510 mm | 560 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 125 mm | 130 mm | 130 mm | 135 mm | 135 mm | 140 mm | 145 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1114 mm | 1139 mm | 1149 mm | 1164 mm | 1174 mm | 1189 mm | 1214 mm |
| Bottom Bracket Drop | -12 mm | -12 mm | -12 mm | -12 mm | -12 mm | -12 mm | -12 mm |
| Standover Height | 744 mm | 764 mm | 774 mm | 789 mm | 804 mm | 819 mm | 844 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" | 26" |
Model Overview

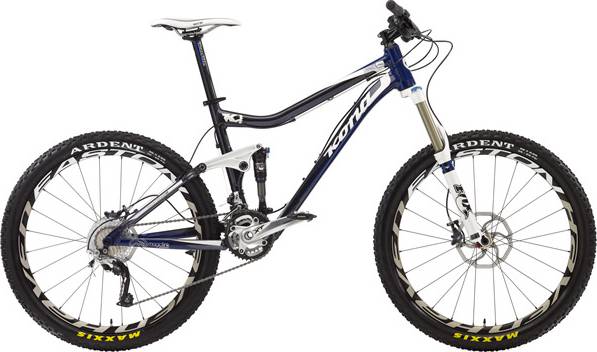

Abra Cadabra is a Kona Abra model. There are 4 bikes that carry this model name.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
Kona Abra Cadabra 2012 bike is equipped with the Fox Float 32 fork, and has 150mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Fox Float RP23 w/BSD rear shock model, which has a travel of 160mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on Abra Cadabra are the 26″ aluminum type. These wheels give you great handling over your bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Abra Cadabra has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
