Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 26" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Float 34
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Race Light Scandium 69 160mm Travel
Suspension Fork
Fox Float 34 CTD FIT 160mm Tapered
Rear Shock
Fox Float CTD BV
Drivetrain
Rear Derailleur
Shimano XT Shadow Plus
Front Derailleur
Shimano XT
Shift Levers
Shimano SLX
Cassette
Shimano XT 11-36t 10 spd
Crank
38/26
Bottom Bracket
Shimano XT
Chain
Shimano HG74
Pedals
Shimano M530 Clipless
Wheels
Front Hub
Easton Haven Wheelset 15mm
Rear Hub
Easton Haven Wheelset 142x12mm
Rims
Easton Haven Wheelset
Spokes
Easton Haven Wheelset
Tires
Maxxis Ardent 26x2.4" Folding
Brakes
Brakes
Shimano SLX
Brake Levers
Shimano XT
Disk Rotors
Shimano 180mm
Cockpit
Stem
RaceFace Turbine
Handlebar
RaceFace Turbine
Grips
Kona Race Light LOG
Headset
FSA No.57E
Seat
Saddle
WTB Volt Race
Seatpost
RockShox Reverb Stealth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 16" | 17" | 18" | 19" | 20" | 22" |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.31 mm | 1.3 mm | 1.27 mm | 1.23 mm | 1.18 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 690 mm | 715 mm | 730 mm | 735 mm | 755 mm | 770 mm | 795 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 113 mm | 104 mm | 110 mm | 106 mm | 106 mm | 106 mm | 109 mm |
| Stack | 581 mm | 586 mm | 586 mm | 591 mm | 591 mm | 591 mm | 596 mm |
| Reach | 411 mm | 431 mm | 446 mm | 456 mm | 466 mm | 481 mm | 506 mm |
| Top Tube Length | 566 mm | 591 mm | 601 mm | 616 mm | 626 mm | 641 mm | 666 mm |
| Seat Tube Angle | 74.8 ° | 74.8 ° | 74.8 ° | 74.8 ° | 74.8 ° | 74.8 ° | 74.8 ° |
| Seat Tube Length | 355 mm | 405 mm | 430 mm | 455 mm | 485 mm | 510 mm | 560 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 125 mm | 130 mm | 130 mm | 135 mm | 135 mm | 140 mm | 145 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1131 mm | 1161 mm | 1171 mm | 1186 mm | 1196 mm | 1211 mm | 1236 mm |
| Bottom Bracket Drop | -20 mm | -20 mm | -20 mm | -20 mm | -20 mm | -20 mm | -20 mm |
| Standover Height | 776 mm | 751 mm | 766 mm | 781 mm | 791 mm | 811 mm | 826 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" | 26" |
About this model

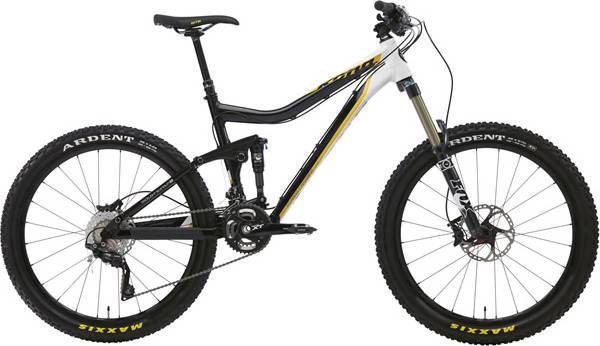

ABRA CADABRA is part of the Kona Abra model. Kona launched 4 bikes of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro bikes average price
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
ABRA CADABRA components
Fork
The Fox Float 34 is included from the factory. It has a travel distance of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Fox Float CTD BV, with a travel distance of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the ABRA CADABRA bike is equipped with the 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ABRA CADABRA comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
