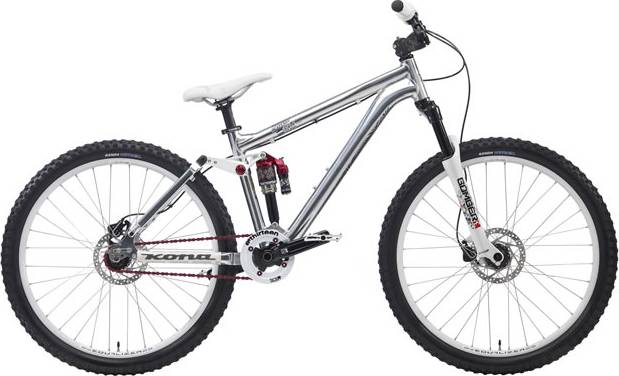

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Marzocchi
-
Groupset e*thirteen -
Suspension Full -
Drivetrain Single Speed -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Clump 7005 Aluminum, 4" Travel
Suspension Fork
Marzocchi Dirt Jumper 1 100mm w/20mm Dropouts
Rear Shock
Marzocchi Roco Air TST R w/Piggyback (7.875 x 2.0)
Drivetrain
Rear Derailleur
N/A
Front Derailleur
E13 SPC
Shift Levers
N/A
Cassette
Formula 13T
Crank
32T
Bottom Bracket
FSA MegaExo
Chain
KMC Z-510
Pedals
Kona Wah-Wah
Wheels
Front Hub
Formula Disc
Rear Hub
Formula Disc
Rims
Sun EQ 2.9SL
Spokes
Sandvik Stainless 14g
Tires
Maxxis Crossmark 26 x 2.25
Brakes
Brakes
Shimano M575 Disc 6"
Brake Levers
Shimano M575 Disc
Cockpit
Stem
Kona Clump (0° x 60mm)
Handlebar
Kona Cowan Signature (25.4mm, 63mm Rise, 710mm Wide)
Grips
Kona Cowan Lock-On
Headset
TH w/Top Nut
Seat
Saddle
WTB Devo HP Comp
Seatpost
Kona XC/BC
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 381 | 394 | 44.5cm |
|---|---|---|---|
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm |
| Front Center | 645 mm | 669 mm | 695 mm |
| Rake | 48 mm | 48 mm | 48 mm |
| Top Tube Length | 558 mm | 582 mm | 608 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 394 mm | 445 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 120 mm | 125 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1068 mm | 1092 mm | 1118 mm |
| Bottom Bracket Drop | 8 mm | 8 mm | 8 mm |
| Standover Height | 774 mm | 780 mm | 805 mm |
| Wheels | 26" | 26" | 26" |
Model Overview
BASS is part of the Kona Bass model. There are 2 bikes that carry this model name.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Dirt Jump bikes
If you want an acceptable Dirt Jump bike you should know that the average price is 863$. However, even if your budget is less than the average, you might still be able to get a top-quality Dirt Jump bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
The Marzocchi is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Marzocchi Roco Air TST R w/Piggyback (7.875 x 2.0), with a travel distance of 100mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on BASS are the 26″ aluminum type. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
When you want to stop the bike in time, the brakes are vital. The BASS has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
