Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Fork RockShox 35 Silver
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted
Suspension Fork

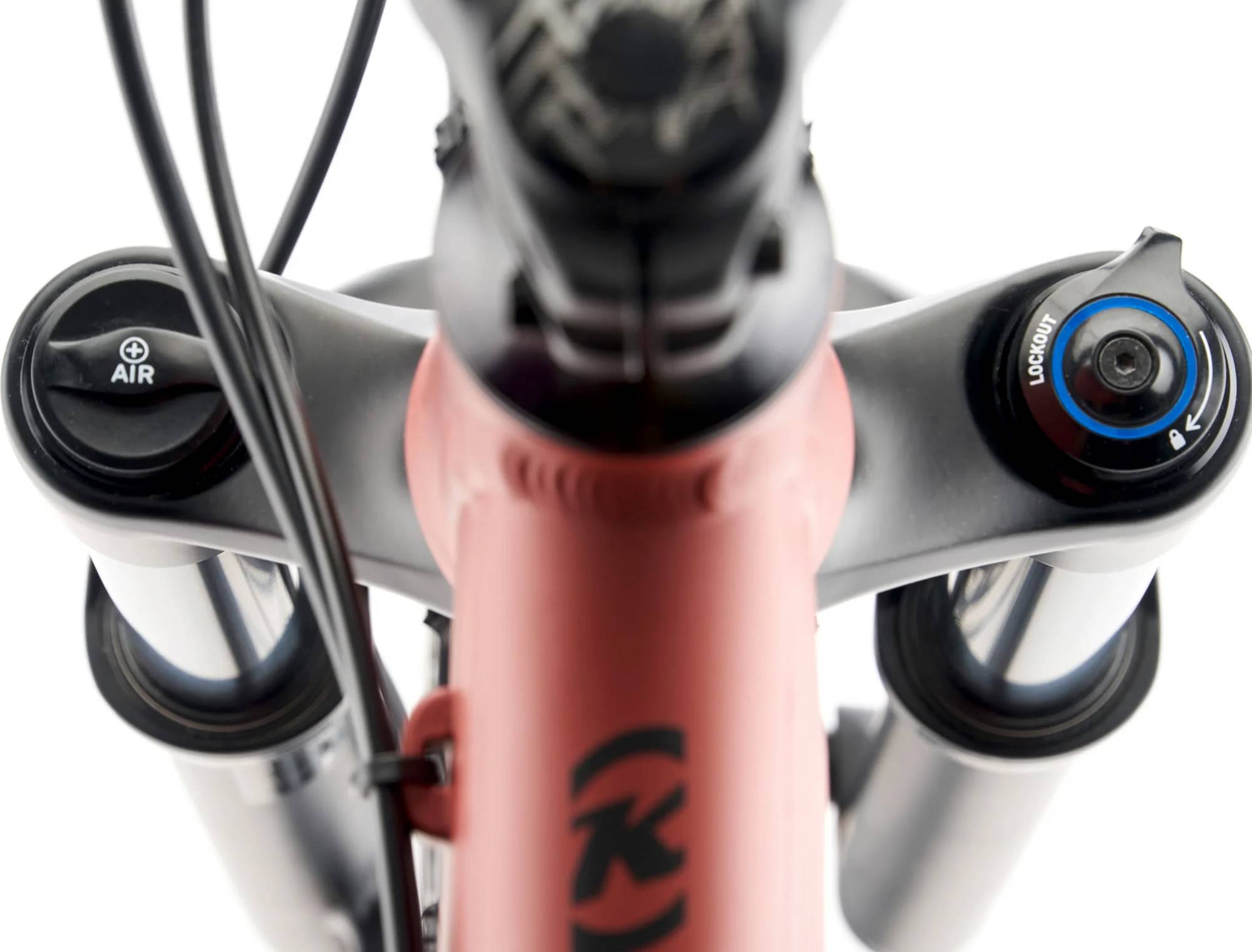

RockShox 35 Silver TK Solo Air 130mm Tapered 110mm Spacing
Rear Shock
n/a
Drivetrain

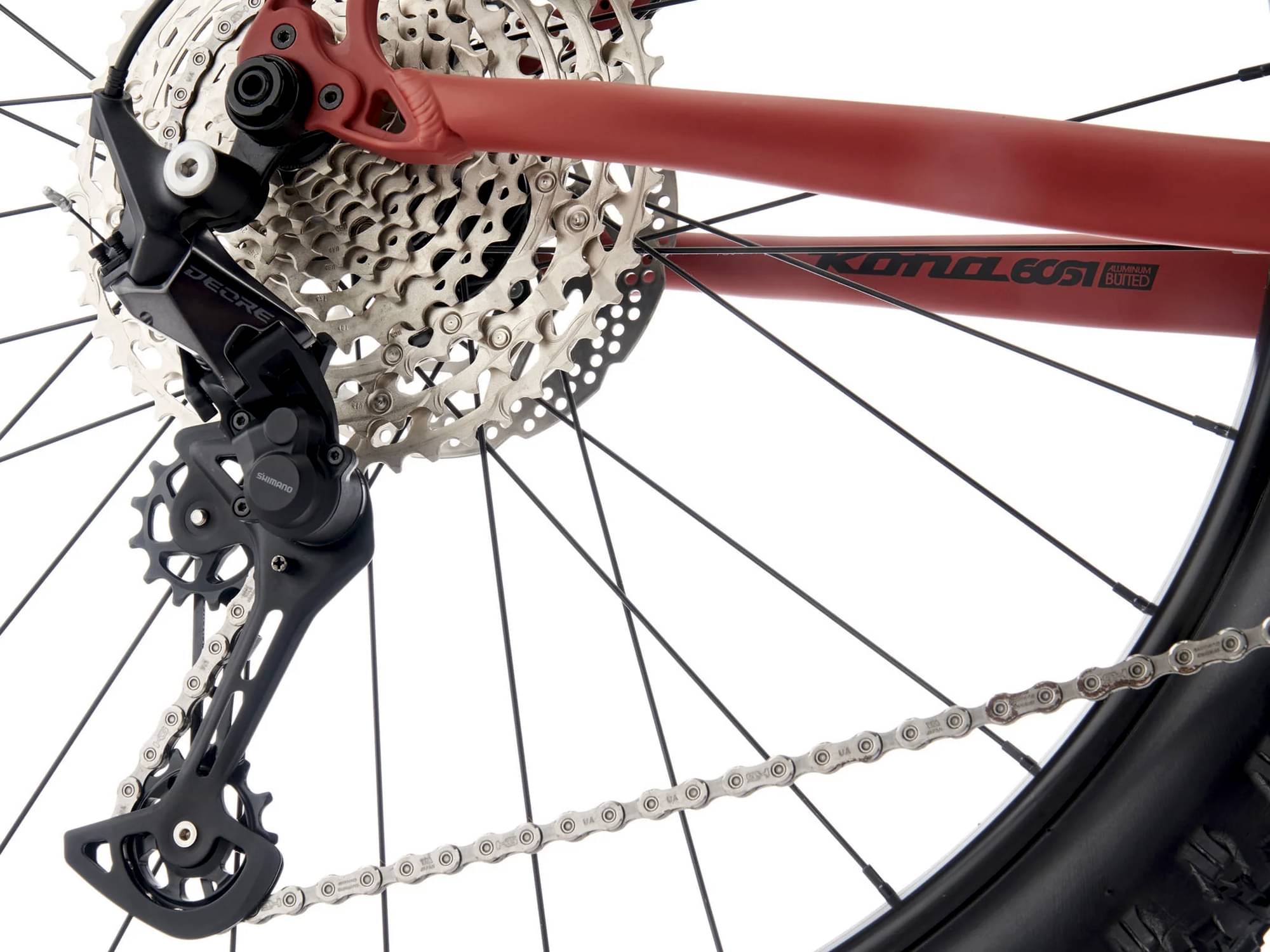

Rear Derailleur
Shimano Deore 12spd
Front Derailleur
n/a

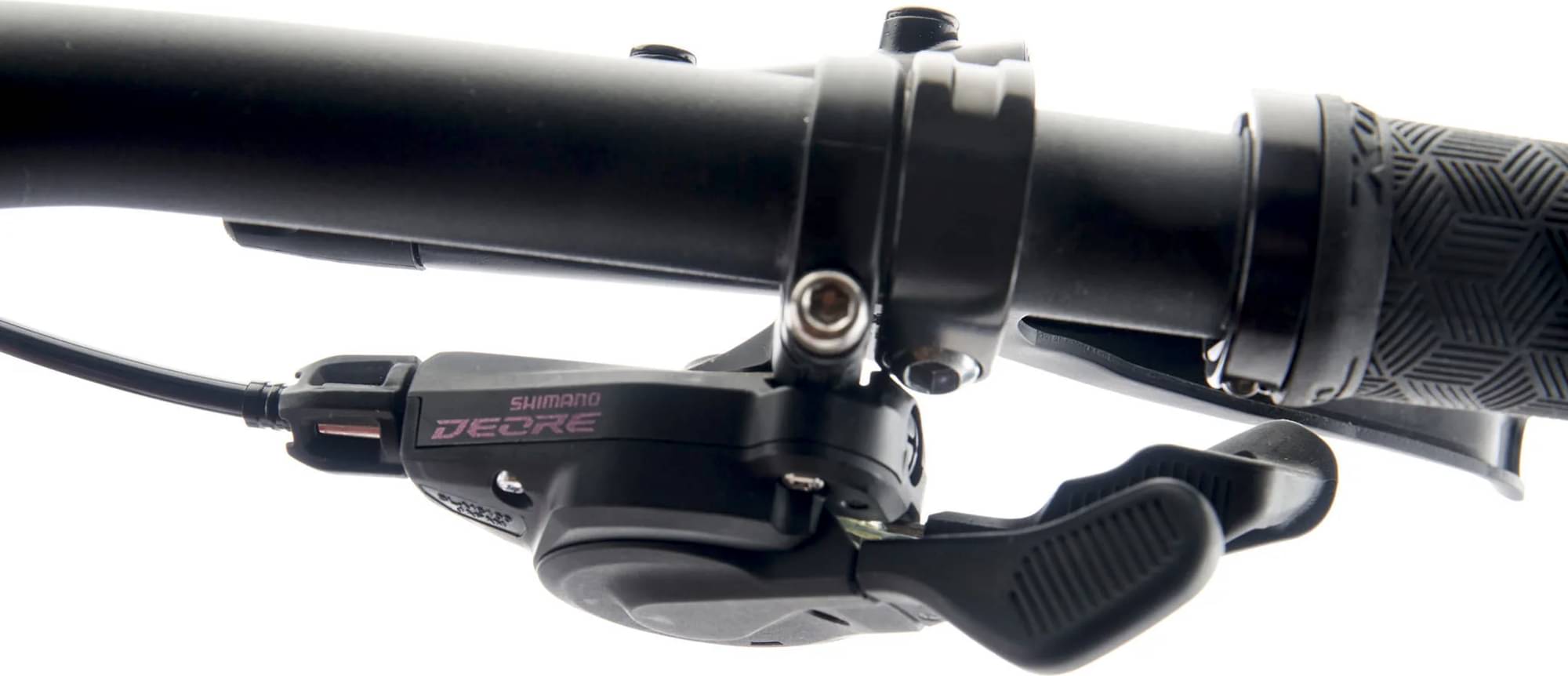

Shift Levers
Shimano Deore 12spd
Cassette
Shimano Deore 10-51t 12spd
Crank

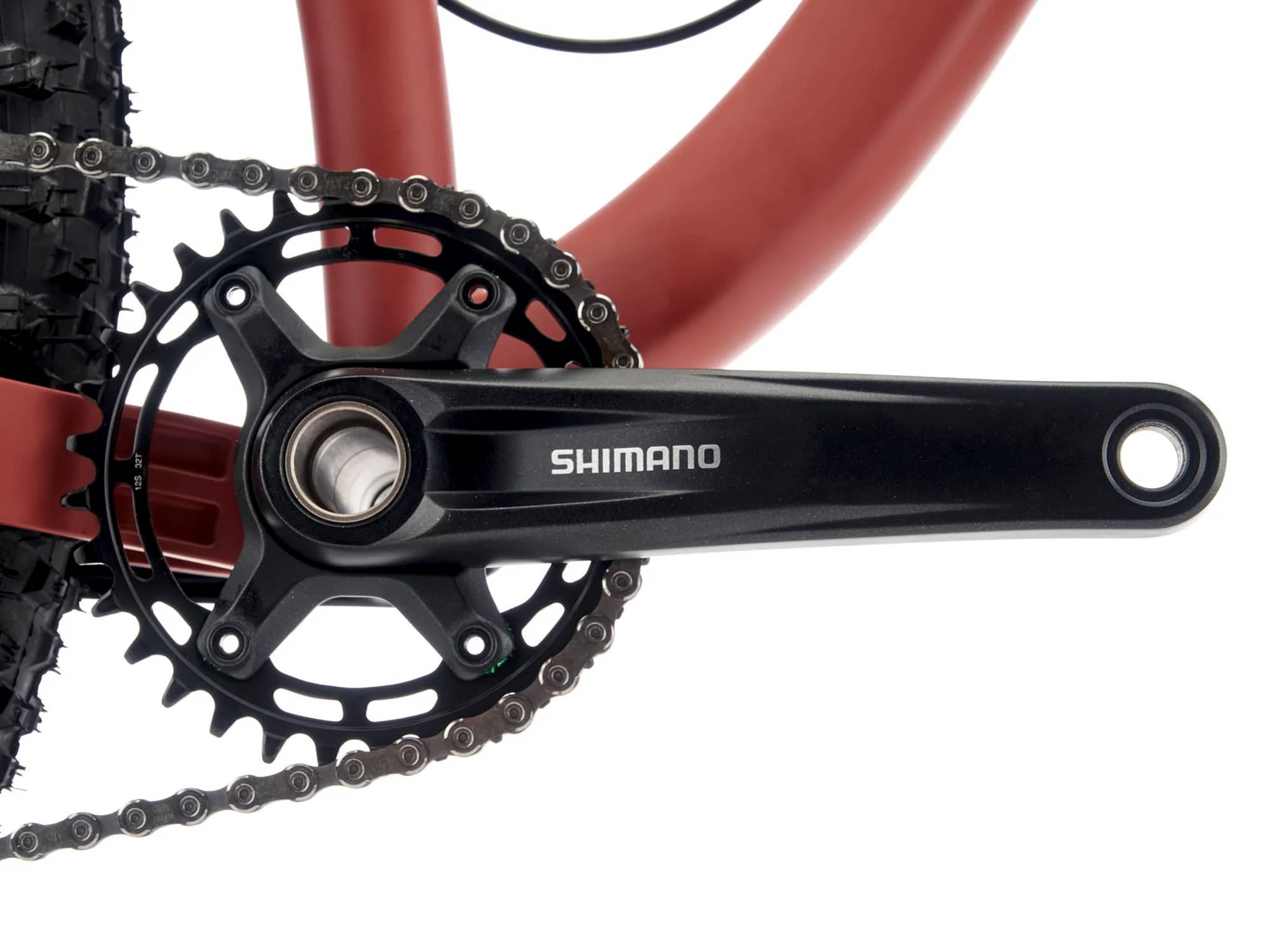

Shimano Deore 12 spd, 32t
Bottom Bracket
Shimano 73mm
Chain
Shimano Deore 12spd
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Shimano 110x15mm (centerlock)
Rear Hub
Shimano 148x12mm (centerlock)
Rims
WTB ST i35 TCS 2.0
Spokes
Stainless Black 14g
Tires
Front: Vee Tire Crown Gem MPC TR 27.5x2.8", Rear: Vee Tire Crown Gem MPC TR 27.5x2.8"
Brakes

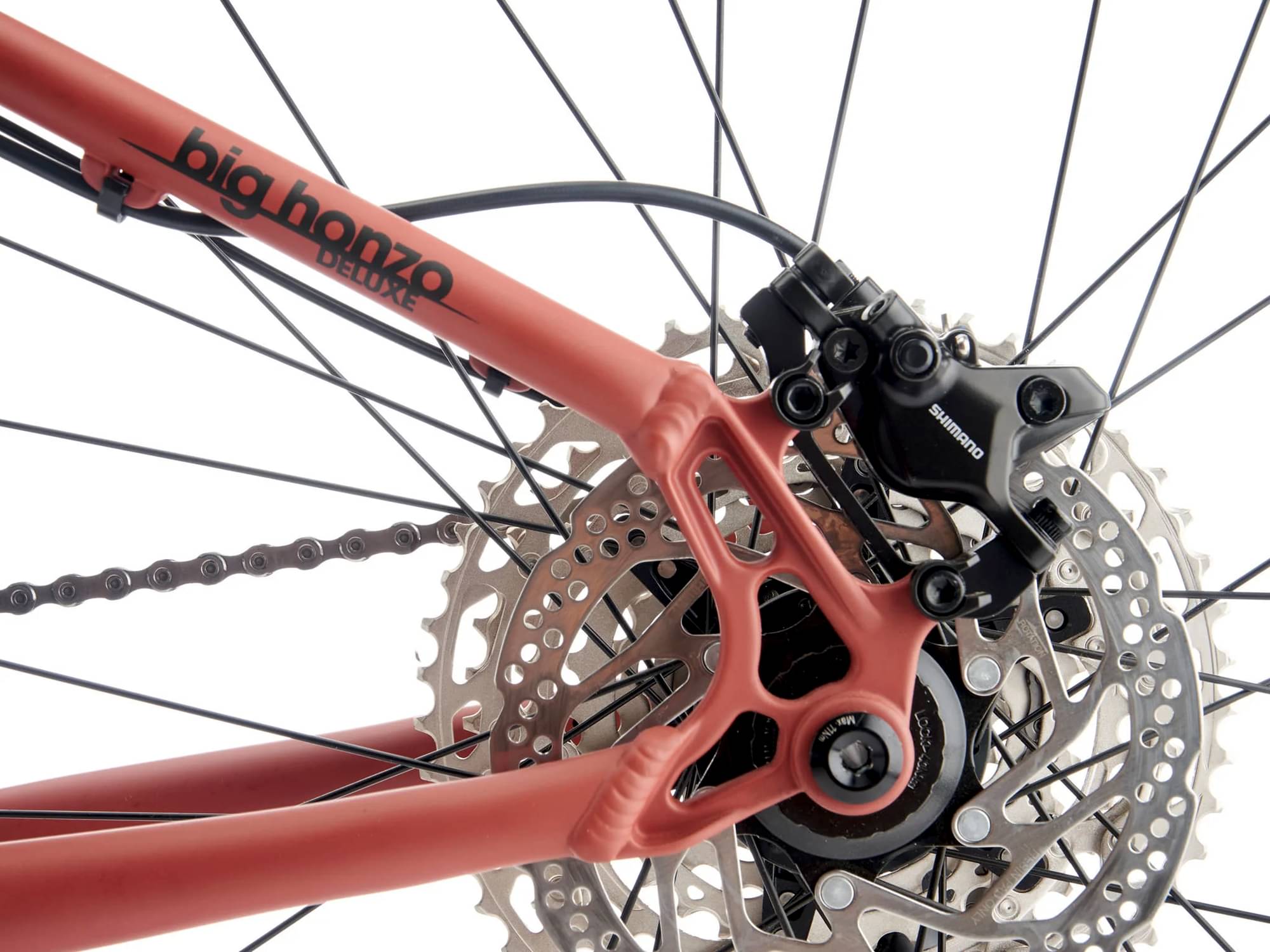

Brakes
Shimano MT410 Hydraulic

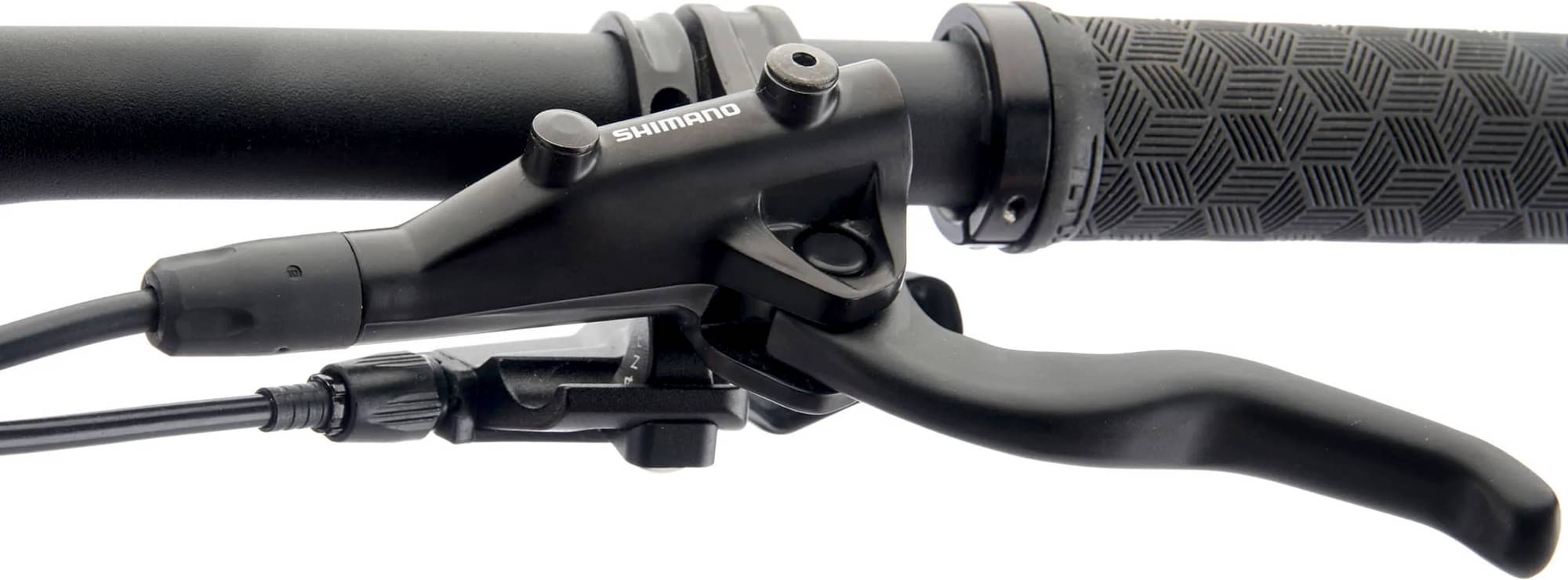

Brake Levers
Shimano MT410 Hydraulic

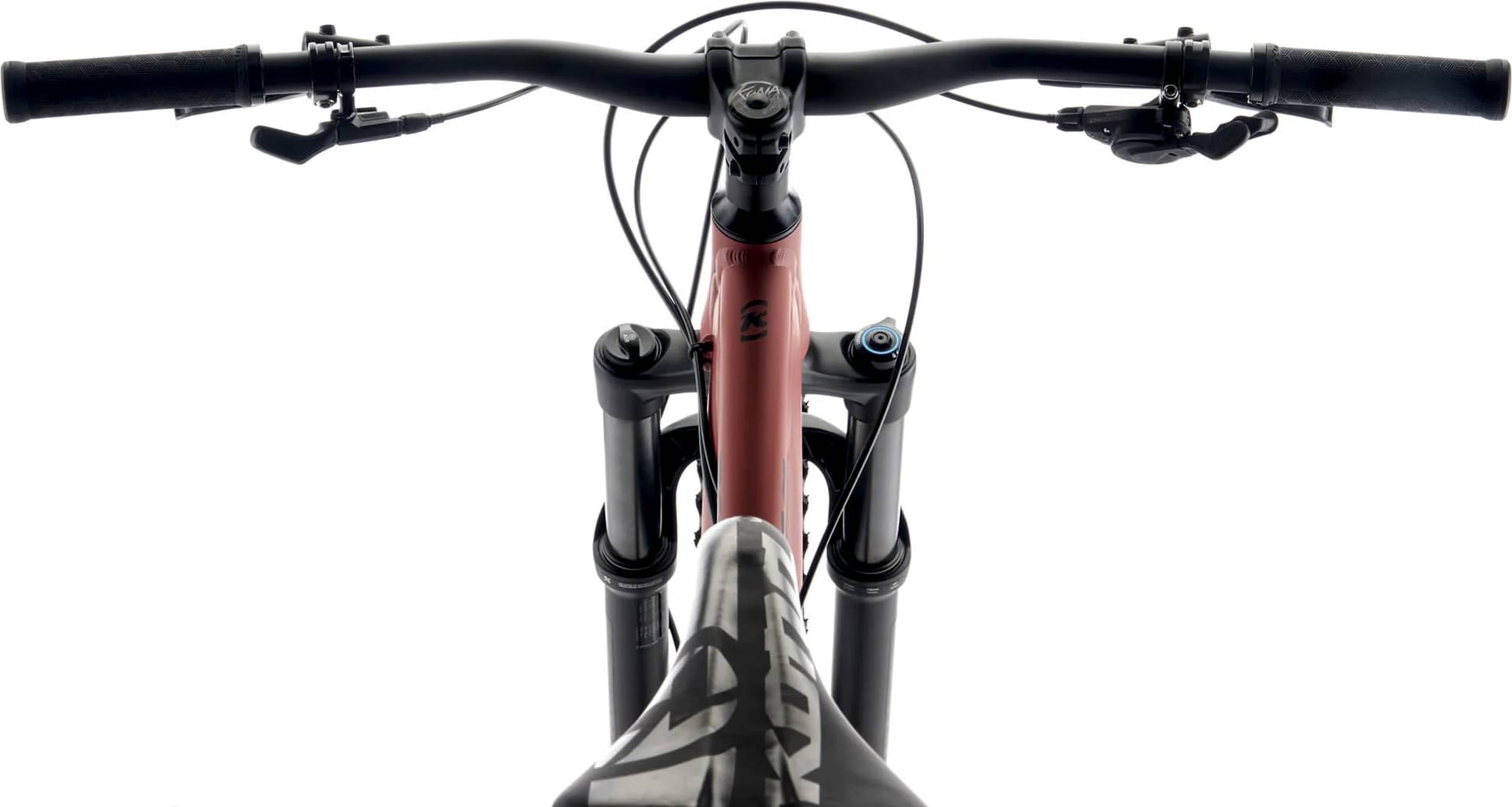

Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
Feimen HP-H868B
Seat
Saddle
Kona Trail

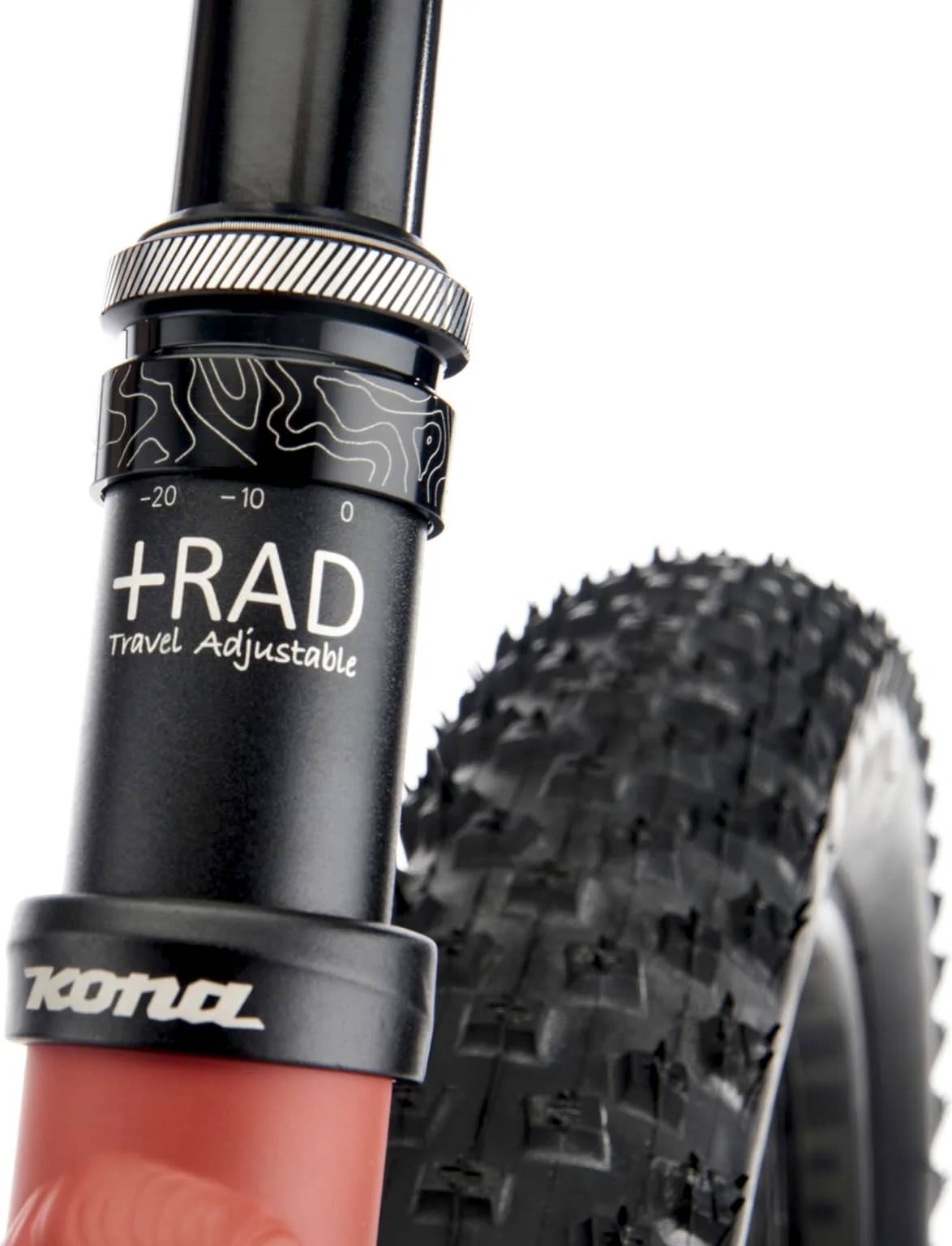

Seatpost
TranzX Dropper +RAD Internal 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.464 mm | 1.402 mm | 1.347 mm | 1.273 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 719 mm | 747 mm | 776 mm | 815 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 92 mm | 92 mm | 91 mm |
| Stack | 622 mm | 631 mm | 640 mm | 649 mm |
| Reach | 425 mm | 450 mm | 475 mm | 510 mm |
| Top Tube Length | 592 mm | 619 mm | 647 mm | 684 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1144 mm | 1173 mm | 1202 mm | 1241 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 723 mm | 729 mm | 736 mm | 758 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
