Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 26" -
Travel Front 150mm -
Travel Rear 160mm -
Fork Fox Float 32
-
Groupset XT, Deore -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Race Light Scandium Butted, 160mm Magic Link Travel
Suspension Fork
Fox 32 Float RL 150mm w/15mm Dropouts
Rear Shock
Fox Float RP23 (6.5 x 1.5)
Drivetrain
Rear Derailleur
Shimano XT Shadow
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore
Cassette
Shimano Deore (11-34, 9spd)
Crank
44/32/22
Bottom Bracket
Shimano SLX
Chain
KMC HG53
Pedals
Shimano M520 Clipless
Wheels
Front Hub
Mavic Crossride Wheelset
Rear Hub
Mavic Crossride Wheelset
Rims
Mavic Crossride Wheelset
Spokes
Mavic Crossride Wheelset
Tires
Maxxis Aspen 26 x 2.25 Kevlar
Brakes
Brakes
Shimano M575 Disc 7"
Brake Levers
Shimano M575 Disc
Cockpit
Stem
Kona XC/BC (6°± ; 15"=75mm, 17-19"=90mm, 20-22=105mm)
Handlebar
Kona XC/BC Riser (31.8mm x 660mm Wide)
Grips
Kona Race Light
Headset
Gravity DL
Seat
Saddle
WTB Rocket V Comp
Seatpost
Kona XC/BC
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 376 | 40.6cm | 43.2cm | 45.7cm | 48.3cm | 50.8cm | 55.9cm |
|---|---|---|---|---|---|---|---|
| Bottom Bracket Height | 358 mm | 358 mm | 358 mm | 358 mm | 358 mm | 358 mm | 358 mm |
| Front Center | 670 mm | 683 mm | 696 mm | 708 mm | 722 mm | 735 mm | 745 mm |
| Rake | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm |
| Top Tube Length | 549 mm | 562 mm | 575 mm | 587 mm | 600 mm | 613 mm | 623 mm |
| Seat Tube Angle | 74.8 ° | 74.8 ° | 74.8 ° | 74.8 ° | 74.8 ° | 74.8 ° | 74.8 ° |
| Seat Tube Length | 376 mm | 406 mm | 432 mm | 457 mm | 483 mm | 508 mm | 559 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 125 mm | 125 mm | 125 mm | 125 mm | 140 mm | 140 mm | 140 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1092 mm | 1104 mm | 1117 mm | 1129 mm | 1144 mm | 1156 mm | 1166 mm |
| Bottom Bracket Drop | -15 mm | -15 mm | -15 mm | -15 mm | -15 mm | -15 mm | -15 mm |
| Standover Height | 745 mm | 763 mm | 777 mm | 789 mm | 809 mm | 821 mm | 846 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" | 26" |
Model Overview

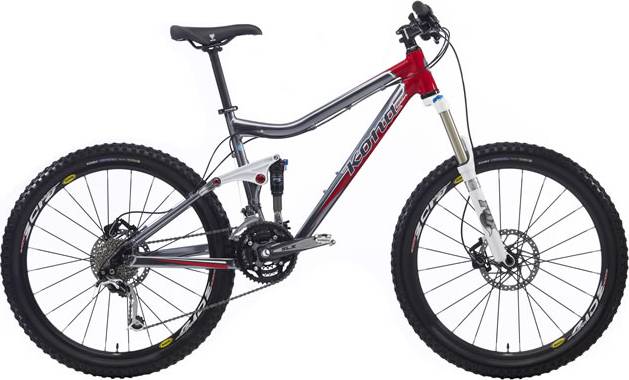

CADABRA belongs to the Kona Cadabra model. Kona launched 4 bikes of this model so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro bikes
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
CADABRA components
Fork
The Fox Float 32 is included from the factory. It has a travel distance of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The CADABRA has a rear shock with a travel of 160mm. The model Fox Float RP23 (6.5 x 1.5) is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the CADABRA model has 26″ aluminum wheels. These wheels give you great handling over your bike. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
For your safety, it is important to have quality breaks on your bike. Kona CADABRA has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
